Konami KGP 3.5 PDM2 User Manual

SECTION 8
APPENDIX A: VLT QUEBEC
1-8-2
8-2
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
ITEM PART # DESCRIPTION
1. 310617 ASSY, DISPLAY DOOR
2. 331278 ASSY, DECK
3. 331528 ASSY, DR, BY, UNLIT
4. 331529 ASSY, CAB, MAIN, QUEBEC
5. 450016 NUT, HEX KEP, 8-32 (6)
6. 450282 NUT, HEX, NYLOCK, 8-32 (2)
7. 450589 SCREW, TPG, HEX WSHR HD, 10-32 X .375 (4)
1
2
3
4
5
6
7
ITEM PART # DESCRIPTION
1. 192801 BRKT, LATCH, DOOR
2. 192810 BRKT, MNT, UPPER, DSPL DR
3. 450430 SCREW, TPG, HEX WSHR HD, 8-32 X .375 (6)
4. 470074 TAPE, FOAM, TOP & BOT, DSPL DR (4)
5. 470075 TAPE, FOAM, SIDE, DSPL DR (4)
6. 610099 DOOR, DISPLAY, SINGLE PIECE
1
2
3
4
6
5

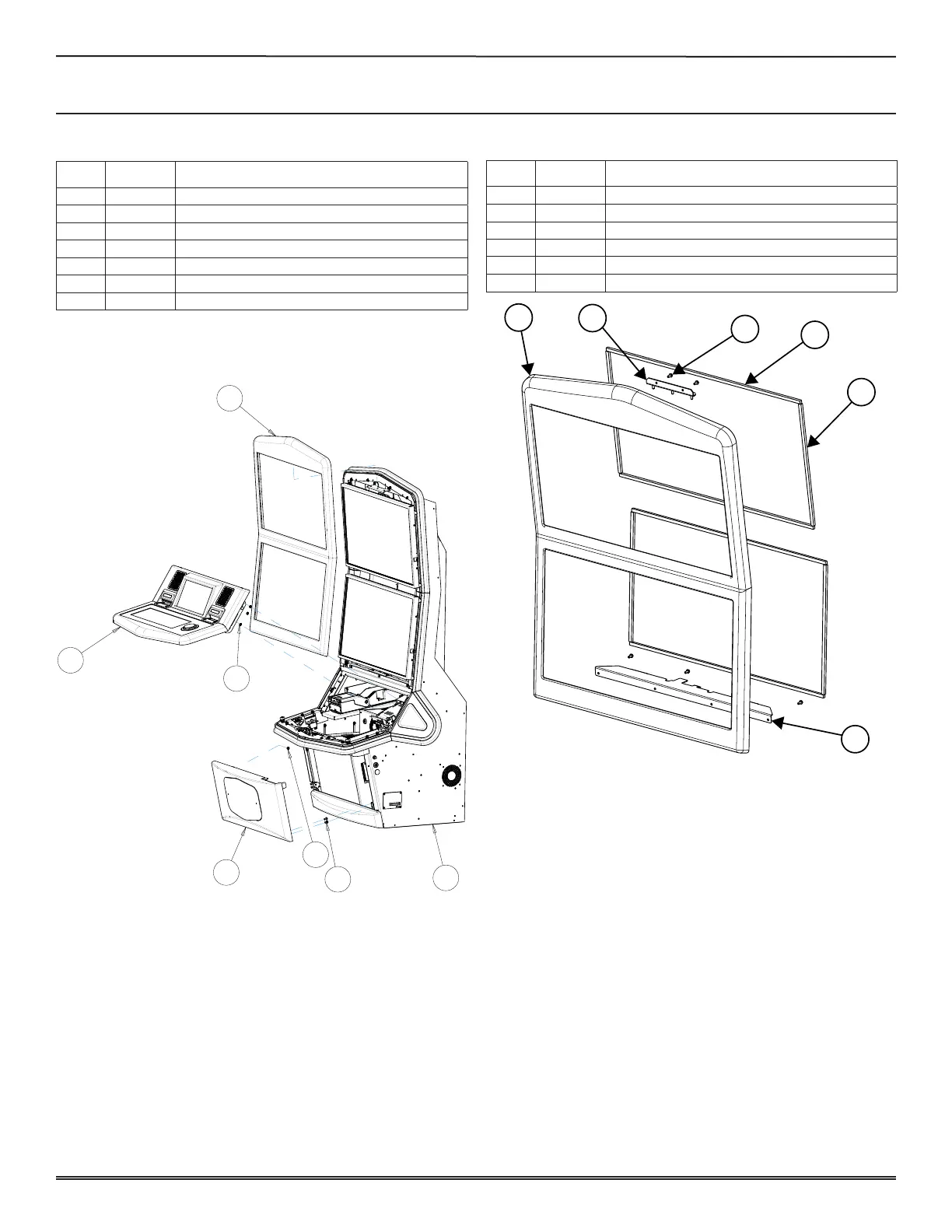

P/n 810192 assy, Main MacHine
P/n 310617 assy, disPlay door
