Konami KGP 3.5 PDM2 User Manual

SECTION 8
APPENDIX A: VLT QUEBEC
1-8-6
8-6
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

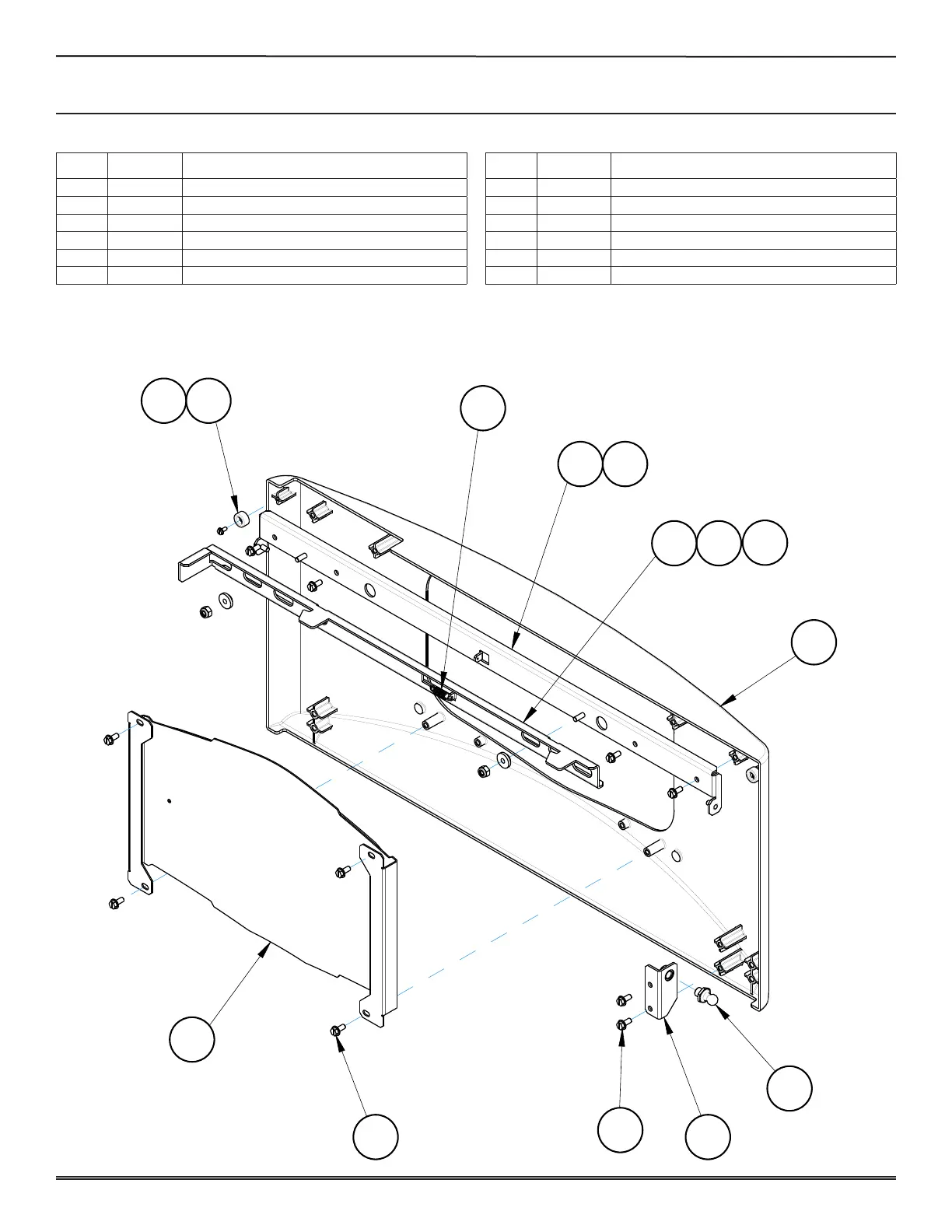

P/n 331528 assy, dr, sub
5
8
7
3
10
12
10
10
4
11
9
1
2
6
ITEM PART # DESCRIPTION
1. 131238 ASSY, WLDMNT, BELLY LOGO CVR
2. 192735 BRKT, DAMPER, DR SIDE
3. 192816 BAR, SLIDE, MAIN DR
4. 192817 BRKT, MTG, SLIDE BAR
5. 230000 BUSHING, SLIDE LOCK, BELLY DOOR (2)
6. 230118 BALL STUD, MODIFIED
ITEM PART # DESCRIPTION
7. 450160 SPRING, EXTENSION, .25 DIA X 1 LONG
8. 450282 NUT, HEX, NYLOCK, 8-32 (2)
9. 450420 SCREW, TPG, HEX WSHR HD, 4-40 X .250 (2)
10. 450430 SCREW, TPG, HEX WSHR HD, 8-32 X .375 (10)
11. 450546 BUMPER, THRU-HOLE WITH WASHER (2)
12. 610086 DOOR, MAIN
