SECTION 2 - SET-UP
1-2-4
2-4
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
cylinder.
sub door

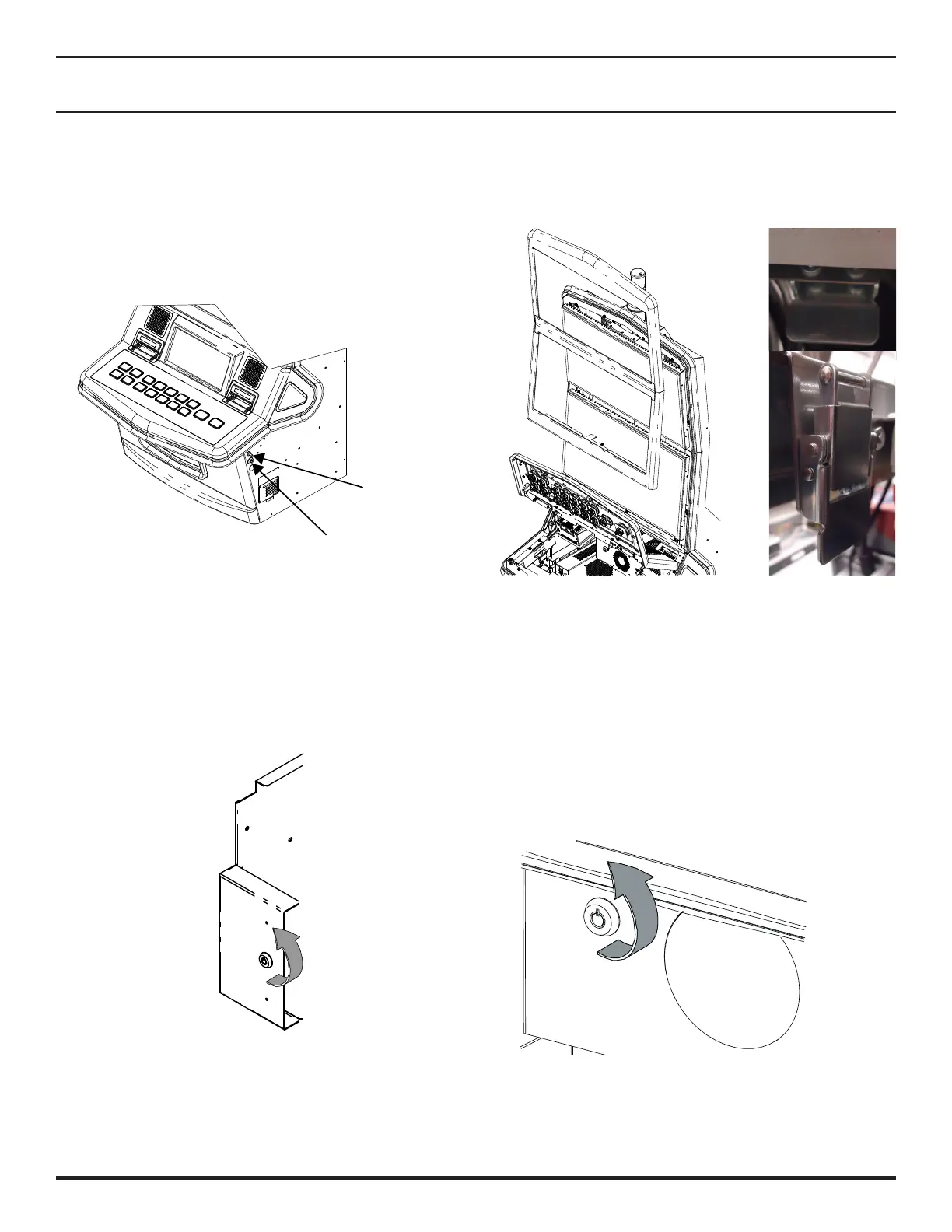

1. To open the sub door, insert key into cylinder on the right
side of cabinet.
2. Turn key 90° clockwise, and press sub door lever.
3. Pull door open.
Sub Door
Lever
Key Cylinder
4. Push main door closed and turn key 90° counter-
clockwise.
5. Remove key from cylinder.
bill validator door
1. To open the Bill Validator Door, insert the key into the
cylinder on the Bill Stacker Door.
2. Turn the key 90° counter-clockwise.
3. Open the Bill Stacker Door.
4. To close the Bill Validator Door, close the Bill Stacker Door.
5. Turn the key 90° clockwise.
6. Remove the Bill Stacker Door key from the cylinder.
disPlay door
1. To remove display door, open main deck door and press
display door latch to unlatch.
2. Close main deck door and remove display door.
3. Install display door on frame.
4. Open main deck door and secure latch.
5. Close and lock main deck door.
logic unit door
The following describes how to open and close the Logic Unit
Door with the Main Door open.
1. To open the Logic Unit Door, insert the Logic Unit door
key into the cylinder on the front of the Logic Unit.
2. Turn the key 90° counter-clockwise.
3. Open the Logic Unit door by pulling the logic door toward
you and up to clear the mounting tabs.
4. To close the Logic Unit Door, insert the Logic Unit door
tabs into the slots and pivot into the locking position.
5. Turn the logic door key 90° clockwise.
6. Remove the Logic Unit Door key from the cylinder.
