SECTION 8

APPENDIX A: VLT QUEBEC

1-8-7

8-7

CONCERTO UPRIGHT

(Original Instructions)

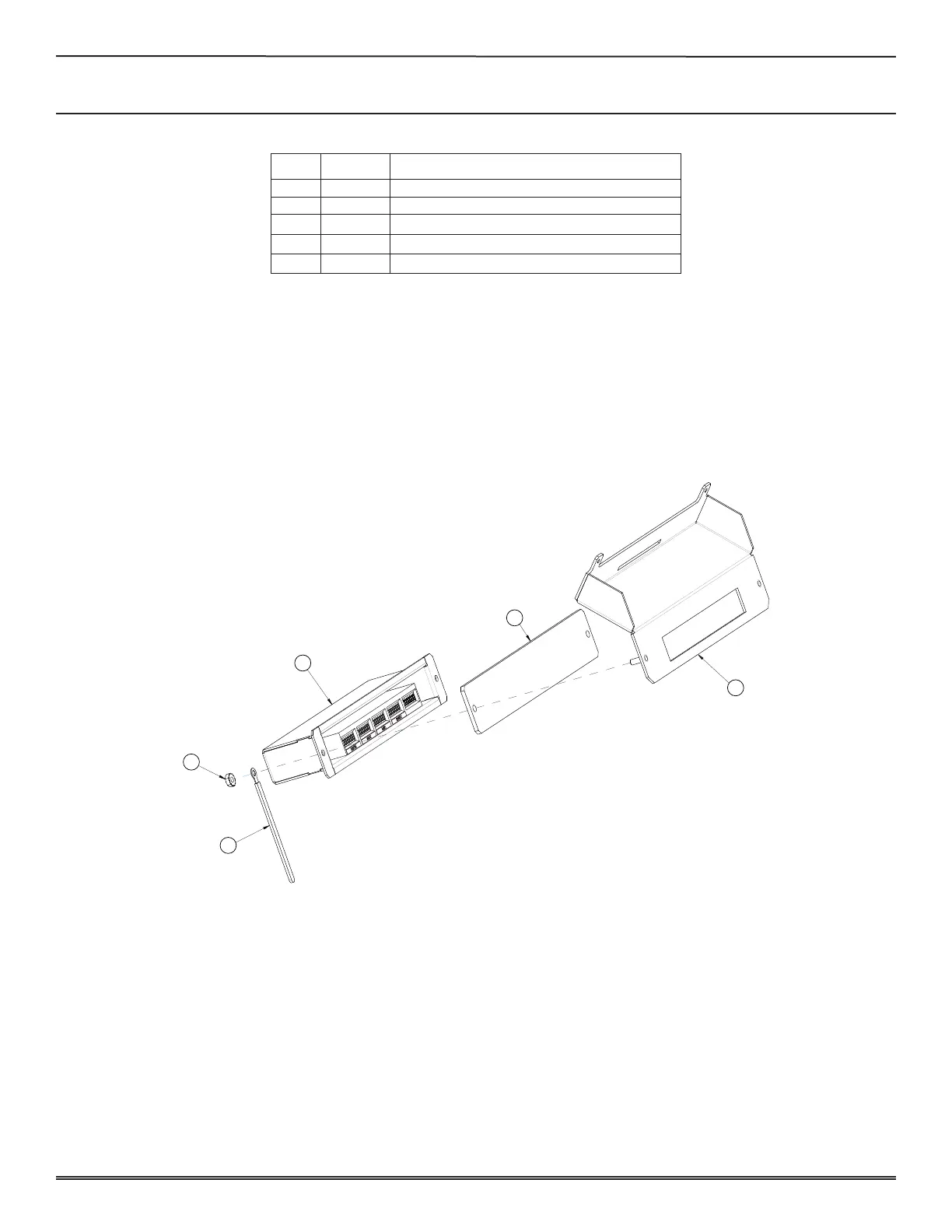

ITEM PART # DESCRIPTION

1. 193857 BRKT, MTG, METER, INTERNAL

2. 331538 ASSY, METER

3. 410292 CVR, METER

4. 450016 NUT, HEX KEP, 8-32 (2)

5. 490456 CLAMP, VINYL COATED, 3 1/2, BLACK

P/n 331537 assy, Meter

Table of Contents3
Customer Support5
Shipping Charges5
Warranty and RMA Process5
Warranty Policy5
RMA Process5
RMA Tag5
Radio Interference6
Features6
Hardware Features6
Hardware Options6
Overview7
Section 1 - Introduction7
Section 2 - Set up7
Section 3 - Parts, Assemblies, & Hardware7
Section 4 - Troubleshooting7
Section 5 - Preventive Maintenance7
Section 6 - Wiring Diagrams7
Section 8 - Appendix A: VLT Quebec7
Terminology7
Notices7
Serial Number8
Serial Number Plate8
Referring to the Stamped Serial Number8
Serial Number Plate on Main Cabinet8
Set-Up9
Overview9
Physical Specifications9
Cabinet Specifications9
Environmental Specifications9
Unpack and Inspect9
Installing the Candle10
Candle Pin Assignment10
Stand Drill Guide10
Drop Box Switch10
Check Drop Switch Operations10
Slot Accounting System11
Overview11
Connections11
Fiber Optic Interface11
Player Tracking Bracket11
Removal11
Installation11
Main Deck Door11
Sub Door12
Bill Validator Door12
Display Door12
Logic Unit Door12
Changing Locks13
Lock Dimensions13
Lock Cams13
General Lock Instructions13
Main Deck Door Lock13
Sub Door Lock14
Bill Validator Door Lock14
Bill Acceptor (Factory Preset)15
Collecting Bills15
Player/Operator Interface15
CHANGE Button16
CASHOUT Button16
SELECT NUMBER of LINES Buttons16
SELECT BET PER LINE Buttons16
BET MAX Button16
SPIN Button16
Bill/Ticket Entry16
Ticket Chute16
27" LCD W/Touchscreen16
Inspect the Cabinet16
Parts, Assemblies & Hardware17
Functional Overview17
Maintenance Overview17
Required Tools17
Commonly-Used Hardware18
Switch Wiring19
Logic Unit Switch19
Removal19
Installation19
Main Deck Door Switch19
Key Switch19
Display Door Switch20
Removal20
Installation20
Sub Door Switch20
Bill Validator Switch Assembly20
Power Supply21
Removal21
Installation21
Main Processing Unit21
Logic Unit21
Backplane Board22
Removal22
Installation22
Bill Validator22
Belly Plex23
Removal23
Installation23
Speakers23
Printer Assembly23
Meter Assembly23
Power Distribution Assembly24
Removal24
Installation24
LCD Unit24
P/N 810192 Assy, Main Machine25
P/N 310617 Assy, Display Door25
P/N 331259 ASSY, CAB, MAIN (Fig. 1 of 6)26
P/N 331259 ASSY, CAB, MAIN (Fig. 2 of 6)27
P/N 331259 ASSY, CAB, MAIN (Fig. 4 of 6)29
P/N 331259 ASSY, CAB, MAIN (Fig. 5 of 6)30
P/N 331278 Assy, Deck, Main32
P/N 310644 Assy, Main Deck and Frame33
P/N 331276 Assy, Dr, Sub34
P/N 310610 Assy, Ps35
P/N 310620 Assy, Lcd, Wg, 27", W/Ts Podium36
P/N 331272 Assy, Sw, Bv Dr36
P/N 310652 Assy, Lcd, Wg, 27", W/O Ts36
P/N 331271 Assy, Hsg, Bv36
P/N 310612 Assy, Pnl, Pwr Cont37
P/N 310613 Assy, Pwr Cont Pnl, Intl38
P/N 331270 Assy, Hsg, Cpu39
P/N 310859 Assy, Kp 3.5 Main Board39
P/N 331268 Assy, Elp, Rh Elbow40
P/N 331328 Assy, Sw, Jcm Cashbox40
P/N 331269 Assy, Elp, Lh Elbow40
P/N 331279 Assy, Bzl, Bv/Ptr40
P/N 330920 Assy, Meter41
P/N 310653 Assy, Logo, Sub Dr41
P/N 310959 Assy, Touch Pnl Btn Pnl42
P/N 331310 Assy, Btn Pnl, 11 Btns42
P/N 331295 Assy, Stnd Lcd Btn Pnl42
P/N 331283 Assy, Btn Pnl, 16 Btns42
P/N 310713 Assy, Topper, Tovis Lcd43
P/N 310645 Assy, Topper, Elp44
P/N 310375 Assy, Bv, Jcm Ivizion, 1000 Note45
72Mm45
P/N 310437 Prt, Future Logic, Gen345
450 Tkt45
Game Power Cord Options45
P/N 630088 ASSY, TOWER, TWO-TIER, CHROME (Tall)45
P/N 630007 ASSY, TOWER, TWO-TIER, CHROME (Short)45
P/N 630015 ASSY, TOWER, TWO-TIER, GOLD (Tall)45
P/N 630016 ASSY, TOWER, TWO-TIER, GOLD (Short)45
P/N 630025 ASSY, TOWER, THREE-TIER, CHROME (Short)45
Troubleshooting46
Please Refer to Manual No. 810204 for Troubleshooting46
Preventive Maintenance47
Please Refer to Manual No. 810205 for Preventive Maintenance47
Wiring Diagrams48
Glossary & Index54
Appendix A: VLT Quebec58
P/N 810192 Assy, Main Machine59
P/N 310617 Assy, Display Door59
P/N 331529 ASSY, CAB, MAIN (Fig. 1 of 3)60
P/N 331529 ASSY, CAB, MAIN (Fig. 2 of 3)61
P/N 331529 ASSY, CAB, MAIN (Fig. 3 of 3)62
P/N 331528 Assy, Dr, Sub63
P/N 331537 Assy, Meter64
810420 Wiring Diagram65
