Konami KGP 3.5 PDM2 User Manual

SECTION 8
APPENDIX A: VLT QUEBEC
1-8-4
8-4
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
7
71
71
71
56
55
19
71
76
71
71
103
104
69 83
57
5279
79
78
99
58
44
45
NOTE: Position magnet
against the two semi-perfs.
Clean surface with isopropyl
alcohol prior to installation.

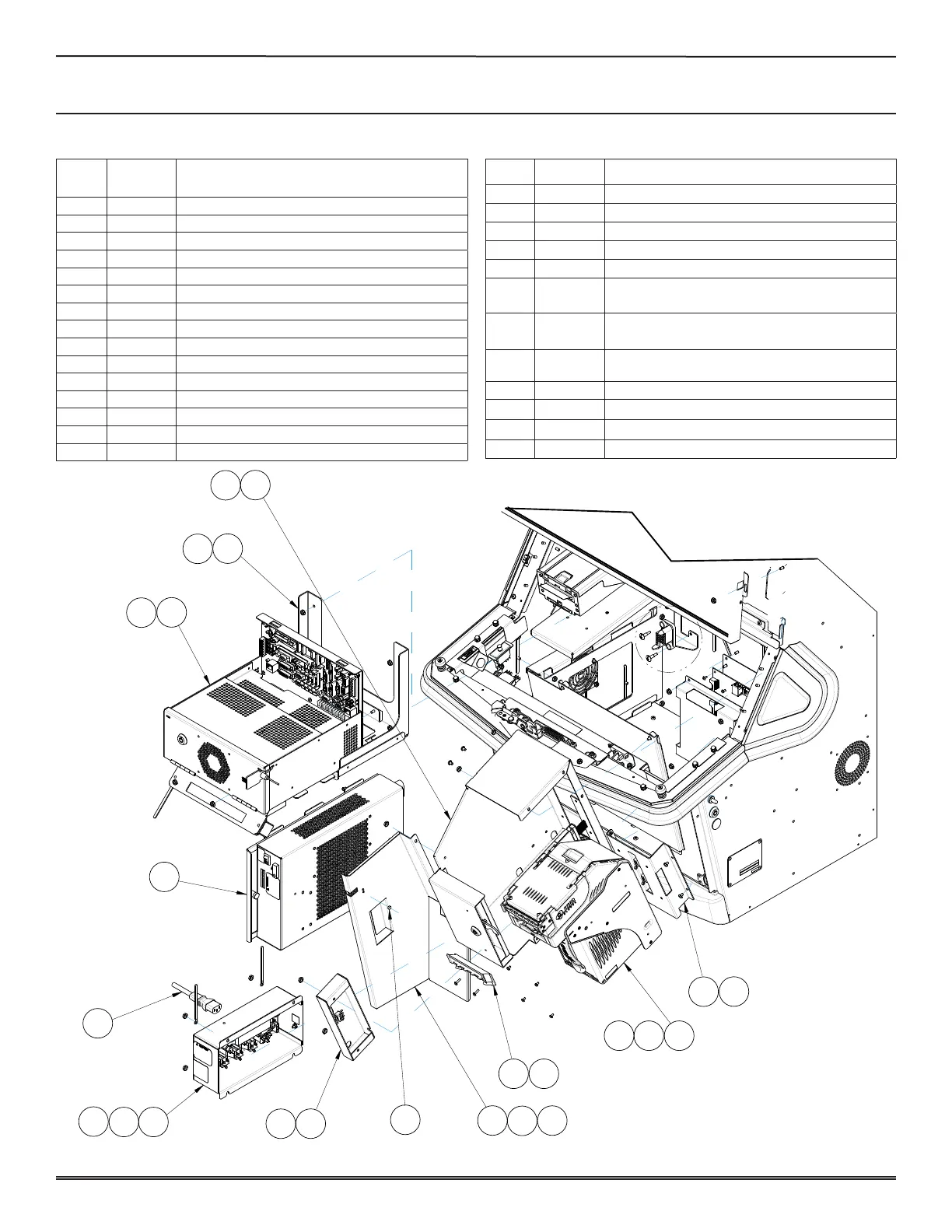

P/n 331529 assy, cab, Main (Fig. 2 oF 3)
ITEM PART # DESCRIPTION
- 110465 HRNS, K3-URV, LED, LINK
- 110864 HRNS, PDM2, LED, B2B (7)
- 110865 HRNS, PDM2, LED, B2B-2
- 110866 HRNS, PDM2, BV
- 110867 HRNS, PDM2, PRINTER
- 110886 HRNS, PDM2, UPPER
- 110890 HRNS, PDM2, BASE
- 110895 HRNS, PDM2, LED, DECK2ELBOW
- 111238 HRNS, PDM2, DOOR SW, VLT QUEBEC
7. 192696 BRKT, MTG, CPU HSG
19. 192772 PNL, CVR, SIDE, RH
44. 310610 ASSY, PS
45. 310612 ASSY, PNL, PWR CONT
52. 310991 ASSY, BV, JCM IVISION, W/USB
55. 331270 ASSY, HSG, CPU
ITEM PART # DESCRIPTION
56. 331271 ASSY, HSG, BV
57. 331272 ASSY, SW, BV DR
58. 331328 ASSY, SW, JCM CASHBOX
69. 410770 CHUTE, BV, JCM, UBA/IVIZION
71. 450016 NUT, HEX KEP, 8-32 (120)
76. 450115
SCREW, SEMS, PAN HEAD PHILLIPS, 8-32 X
1/4 (15)
78. 450122
SCREW, SEMS, PAN HEAD PHILLIPS, M3 X 6
(4)
79. 450127
SCREW, SEMS, PAN HEAD PHILLIPS, M4 X 6
(10)
83. 450167 SCREW, PAN HEAD PHILLIPS, M3X12 (2)
99. 450604 MAGNET, ADHESIVE BACKED
103. 490078 CORD, AC
104. 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (34)
