Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-16
3-16
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

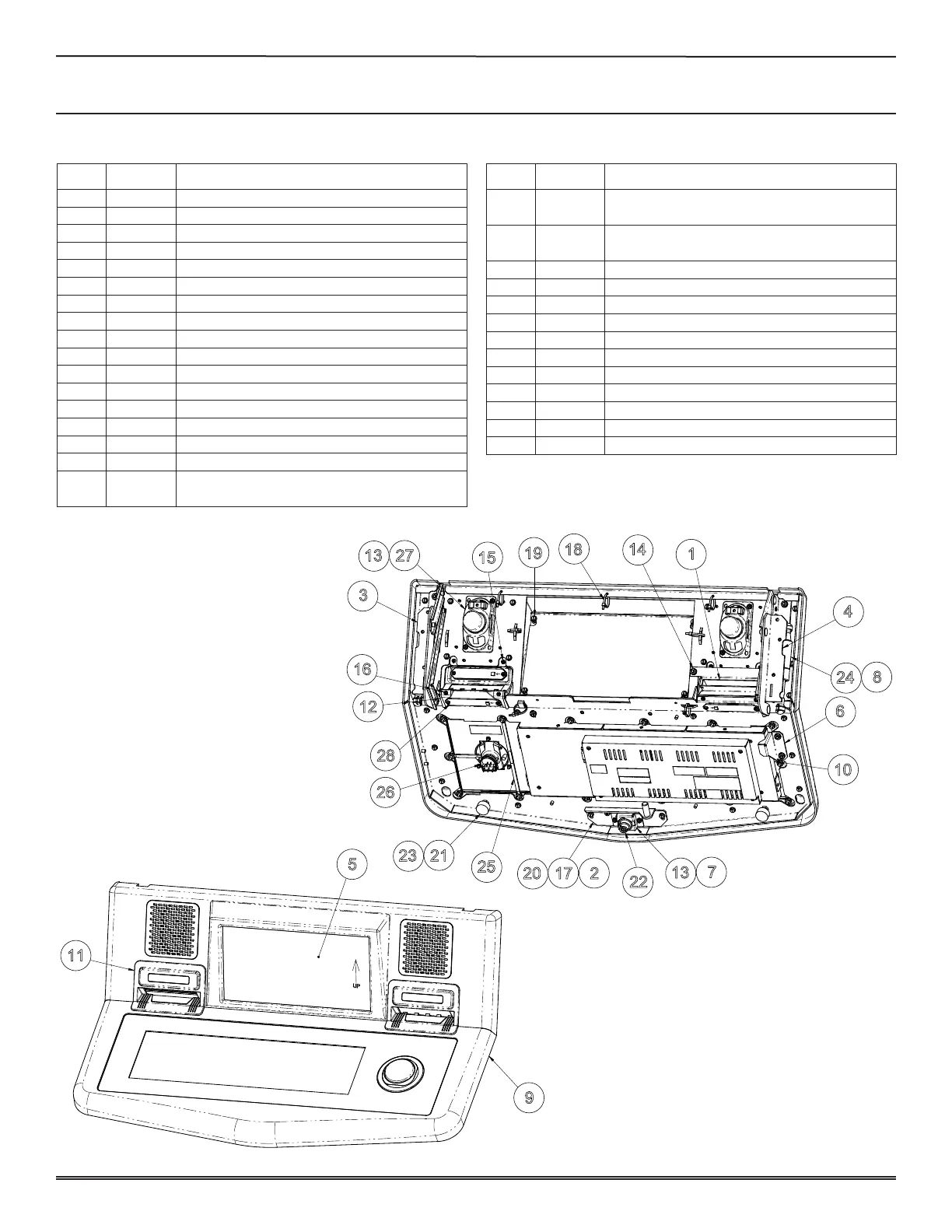

P/n 331278 assy, deck, Main
ITEM PART # DESCRIPTION
- 110891 HRNS, DECK, MAIN (NOT SHOWN)
- 110953 HRNS, PDM2, PLAY BUTTON 4 (NOT SHOWN)
1. 131091 ASSY, CHUTE, PRINTER
2. 131120 ASSY, WLDMNT, STRIKER
3. 131202 ASSY, HINGE, DECK, RIGHT
4. 131203 ASSY, HINGE, DECK, LEFT
5. 192811 PNL, PTM, BLANK, W/O COIN
6. 193080 ARM, SWITCH, DECK
7. 193401 BRKT, MTG, SPRING
8. 230118 BALL STUD, MODIFIED (4)
9. 310644 ASSY, DECK AND FRAME
10. 310959 ASSY, PNL, TOUCH DASH II
11. 331279 ASSY, BZL, BV/PTR (2)
12. 410774 GUIDE, BV CHUTE
13. 450014 NUT, HEX KEP, 4-40 (6)
14. 450016 NUT, HEX KEP, 8-32 (25)
15. 450107
SCREW, SEMS, PAN HEAD PHILLIPS, 4-40 X
1/4 (10)
ITEM PART # DESCRIPTION
16. 450108
SCREW, SEMS, PAN HEAD PHILLIPS, 4-40 X
3/8 (2)
17. 450117
SCREW, SEMS, PAN HEAD PHILLIPS, 8-32 X
3/8 (2)
18. 450410 CABLE TIE, 4” (7)
19. 450428 SCREW, TPG, HEX WSHR HD, 8-32 X .250 (4)
20. 450430 SCREW, TPG, HEX WSHR HD, 8-32 X .375 (2)
21. 450632 BUMPER, THREADED STUD, M6 (2)
22. 450633 SPRING, CONICAL
23. 450634 NUT, HEX JAM, M6 (2)
24. 450688 GAS SPRING, 27MM STROKE, 645N (2)
25. 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (4)
26. 490917 BUTTON, ROUND
27. 530322 SPEAKER, RECT, 8 OHMS, 5 WATTS (2)
28. 530612 PCB, LIGHTING (2)
3
16
15
19
18
1
4
6
20
25
5
12
11
9
17
23
26
28
21
13
7
22
13
14
27
10
24
8
2
