Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-13
3-13
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
ITEM PART # DESCRIPTION
5. 192693 BRKT, LIP, TOP
12. 192739 BRKT, SPRT, LF, LCD (2)
13. 192743 BRKT, SPRT, RT, LCD (2)
16. 192746 BRKT, LIP, UPR DSPL, RH
17. 192747 BRKT, LIP, UPR DSPL, LH
24. 192828 CVR, TRIM, TOP
25. 192829 CVR, TRIM, SIDE, RH
26. 192830 CVR, TRIM, SIDE, LH
28. 192889 BRKT, LIP, LWR DSPL, RH
29. 192890 BRKT, LIP, LWR DSPL, LH
40. 310589 ASSY, DIFF, DSPL DR, TOP
41. 310590 ASSY, DIFF, DSPL DR, RH
42. 310591 ASSY, DIFF, DSPL DR, LH
60. 410606 INSUL, SIDE, UPR DSPL (2)
ITEM PART # DESCRIPTION
61. 410607 INSUL, TOP/FRT (4)
62. 410608 INSUL, SIDE, LWR DSPL (2)
65. 410737 TRIM, ELP, TOP
66. 410738 TRIM, ELP, TOP RT
67. 410739 TRIM, ELP, TOP LT
70. 450016 NUT, HEX KEP, 8-32 (118)
75. 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (16)
76. 450117 SCREW, SEMS, PH PHIL, 8-32 X 3/8 (4)
98. 450618
SCREW, FLAT HD PHIL W/ UNDERCUT,
8-32 X 5/16, BLK OXD (16)
105. 530582 PCB, PODIUM2, LED, PDM2-TOP1 (2)
106. 530583 PCB, PODIUM2, LED, PDM2-TOP2 (2)
107. 530584 PCB, PODIUM2, LED, PDM2-DSP1 (2)
108. 530585 PCB, PODIUM2, LED, PDM2-DSP2 (2)

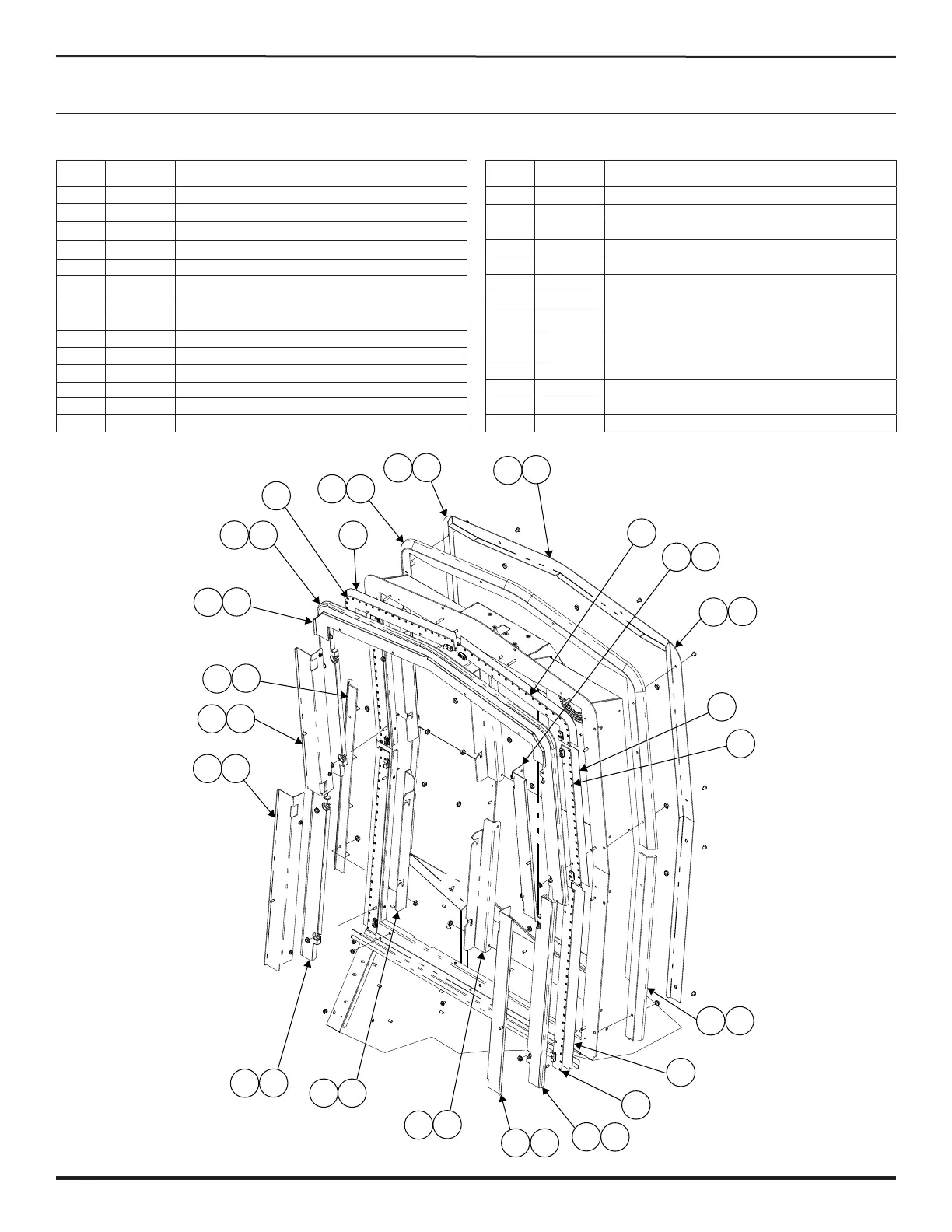

P/n 331259 assy, cab, Main (Fig. 4 oF 6)
29
42
70
12
70
17
75
70
67
5
40
70
65
26
98
24
98
106
105
61
25
98
60
108
62
107
16
75
13
70
70
66
41
70
28
75
70
70
75
