SECTION 2 - SET-UP
1-2-3
2-3
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
SLOT ACCOUNTING SYSTEM
overvieW

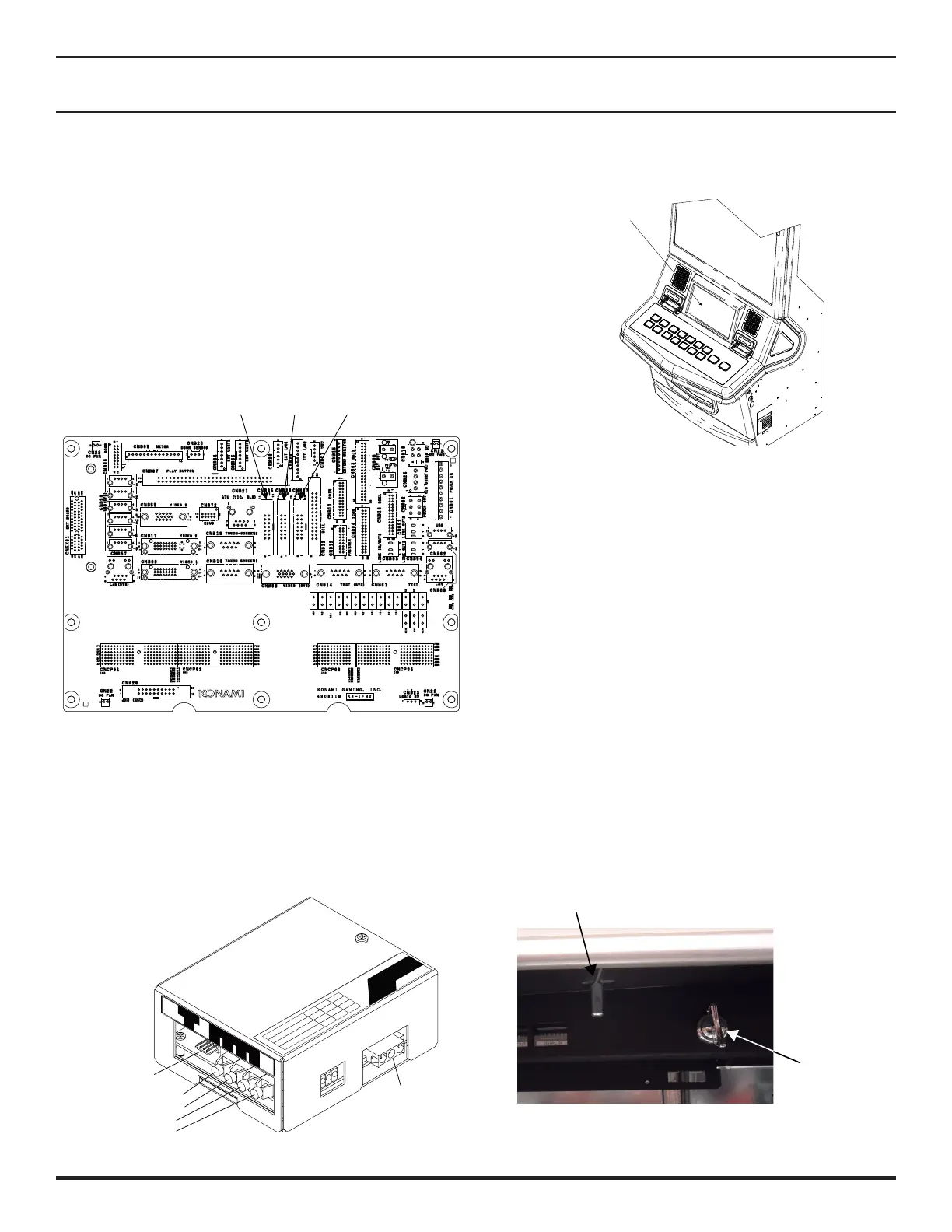

The Slot Accounting System (SAS) communication with the
video gaming machine takes place via interface connectors
located on the Backplane board in the Logic Unit box and
settings in the Konami Maintenance System (KMS).
connections
Under typical conditions, CNB35/Port 1 on the backplane, is for
interconnection to the SAS Unit, used for ber optic interface.
CNB36 and CNB37 are used for serial communications with
conventional wiring.
CNB35
(COM1)
CNB36
(COM2)
CNB37
(COM3)
FIBER OPTIC INTERFACE
When ber optic communication lines are used, they are rst
routed to the SAS Unit mounted in the machine. The SAS
Unit is equipped with two input and two output ber optic
receptacles. The SAS unit is also equipped with a serial input/
output connector and attached wiring, the output of which is
connected to the CNB35 port on the Backplane board.
SERIAL
I/O
AC115V IN
Green : Communication
Blink
Lit Off
Normal
Error Idling
Normal
Error
Idling
Normal
Error Idling
Red : Opto IN2 Monitor
Yellow : Terminal Serial Data
SERIAL
I/O
OUT1 OUT2 IN1 IN2
SERIAL I/O
FIBER OPTIC OUT 1
FIBER OPTIC OUT 2
FIBER OPTIC IN 2
FIBER OPTIC IN 1
AC 115V IN
PLAYER TRACKING BRACKET
The SAS components are mounted on a removable bracket
installed on top of the box.
reMoval
1. Open the Main Door and turn power off.
2. Open main deck door.
3. Remove four 8-32 X 1/4 screws holding player tracking
panel.
4. Remove player tracking panel from main deck door.
installation
1. Install player tracking panel onto main deck door.
2. Secure with four screws.
OPENING AND CLOSING THE DOORS
Main deck door
1. To open main deck door, insert main deck door key into
key cylinder underneath main deck.
2. Turn key 90° clockwise.
3. Pull latch button with key turned.
4. Open main deck door.
Lock
5. Close main deck door with the key turned clockwise.
6. Turn key 90° counter-clockwise and remove key from
To Next Page
