Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-26
3-26
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

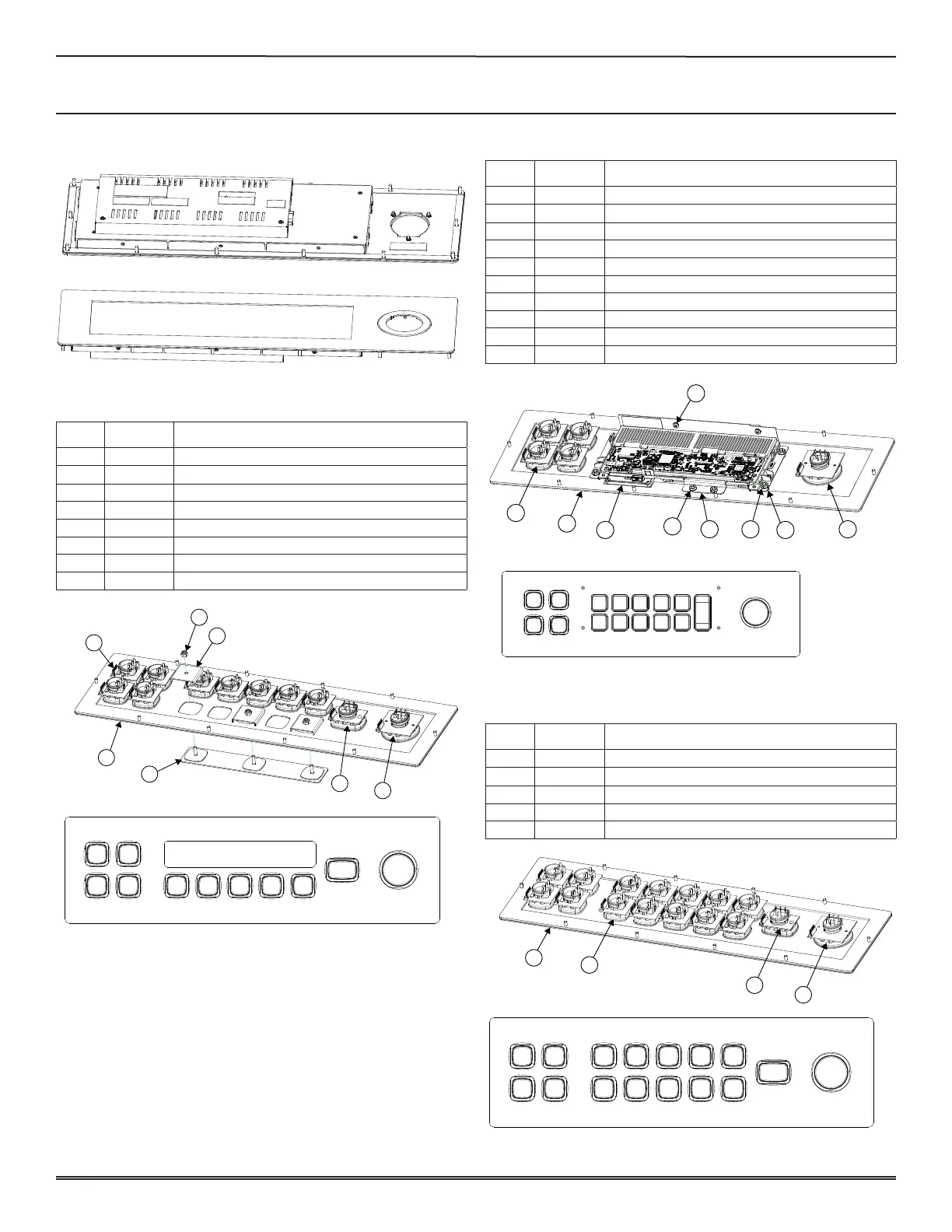

P/n 331283 assy, btn Pnl, 16 btns
ITEM PART # DESCRIPTION
- 110887 HRNS, BTN PNL, 16 BTN
1. 130973 ASSY, BTN PNL
2. 490896 BTN, SM SQR (14)
3. 490897 BTN, RECT
4. 490917 BUTTON, ROUND
CHANGE
HELP
CASH
OUT
MULTI
DENOM
BET MAX
SPIN
LINE BUTTONS
BET BUTTONS
1
2
3
4
P/n 331310 assy, btn Pnl, 11 btns
ITEM PART # DESCRIPTION
- 110887 HRNS, BTN PNL, 16 BTN
1. 130973 ASSY BTN PNL
2. 131009 ASSY, 5 HOLE PLUG, SM SQR
3. 192856 CLAMP, BTN HOLE COVER (3)
4. 450282 NUT, HEX, NYLOK, 8-32 (3)
5. 490896 BTN, SM SQR (9)
6. 490897 BTN, RECT
7. 490917 BUTTON, ROUND
CHANGE
HELP
CASH
OUT
MULTI
DENOM
BET MAX
SPIN
BET BUTTONS
1
2
6
7
5
4
3
P/n 331295 assy, stnd lcd btn Pnl
ITEM PART # DESCRIPTION
- 110888 HRNS, LCD BTN PNL
1. 130981 ASSY, BTN PNL, SELEXION
2. 192796 BRKT, RETAINER, SELEXION PNL, REAR
3. 310393 ASSY, LCD BTN PNL
4. 450013 NUT, HEX KEP, 10-32 (4)
5. 450016 NUT, HEX KEP, 8-32 (2)
6. 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (2)
7. 450513 SPCR, NYLON, .38OD X .17ID X .25L (4)
8. 490896 BTN, SM SQR (4)
9. 490917 BUTTON, ROUND
CHANGE
HELP
CASH
OUT
MULTI
DENOM
SPIN
8
1
3
5
2
4
7
9
6
P/n 310959 assy, toucH Pnl btn Pnl
BOTTOM VIEW
TOP VIEW
