Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-28
3-28
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

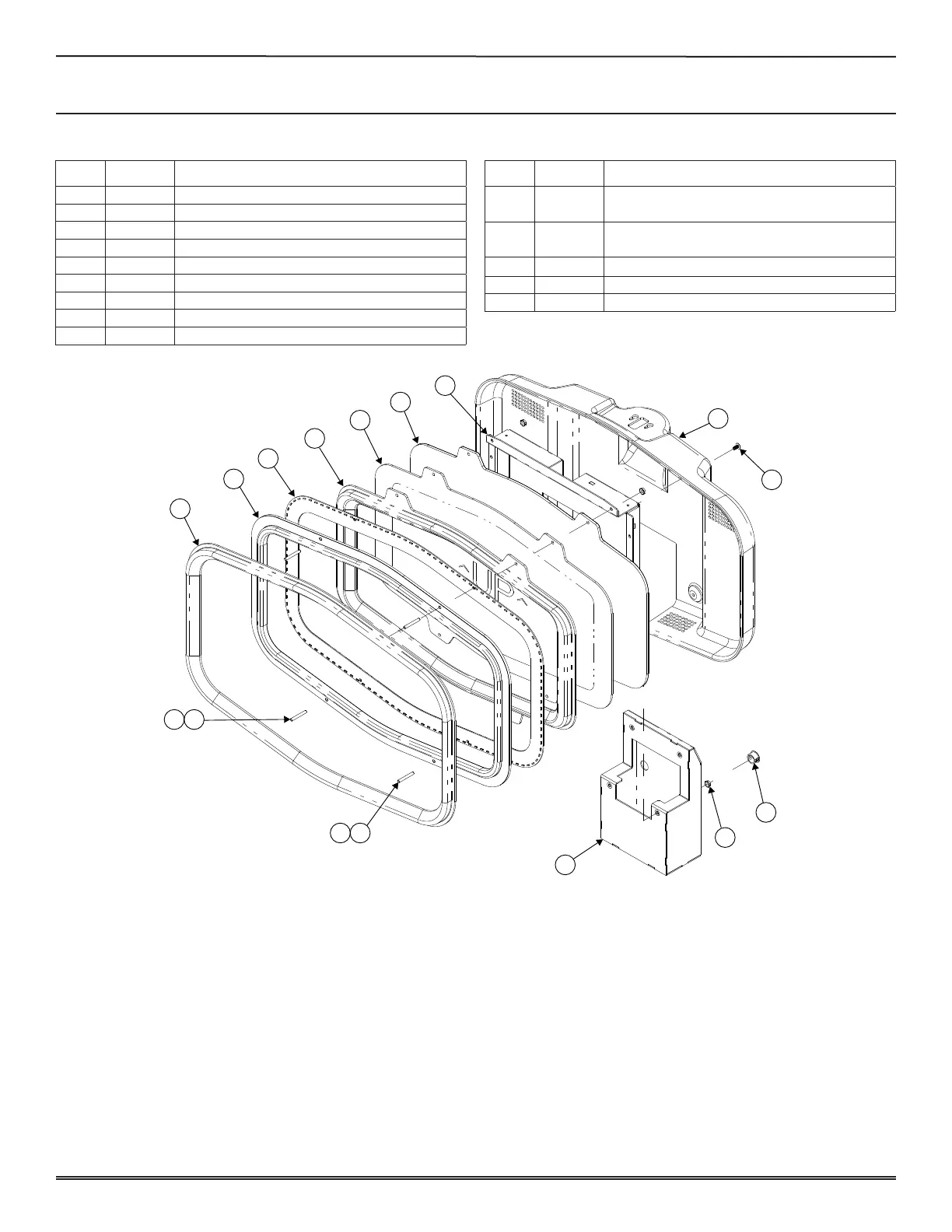

P/n 310645 assy, toPPer, elP
12
4
7
5
3
9
6
2
118
10
13
1
8
118
ITEM PART # DESCRIPTION
- 110882 HRNS, PDM2, LED, TOPPER1 (N/S)
1. 131010 ASSY, WLDMNT, TOPPER STAND
2. 192862 BRKT, SPRT, TOPPER
3. 310646 ASSY, ELP, TOPPER
4. 310647 ASSY, DIFF, TOPPER
5. 410651 PLEX, GRAPHIC, TOPPER
6. 410653 HSG, TOPPER
7. 410662 BEZEL, TOPPER
8. 450016 NUT, HEX KEP, 8-32 (8)
ITEM PART # DESCRIPTION
9. 450590
SCREW, TRUSS HD PHIL, 8-32 X .375, BLK
OXIDE (4)
10. 450597
PLUG, HOLE, .625 DIA X .016-.125 PNL THKNS,
BLK (4)
11. 450598 STUD, 8-32 X 1.25, W/ SLOT (4)
12. 530589 PCB, PODIUM2, LED, PDM2-TOPPER
13. 610097 TRIM, ELP, TOPPER
