Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-22
3-22
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

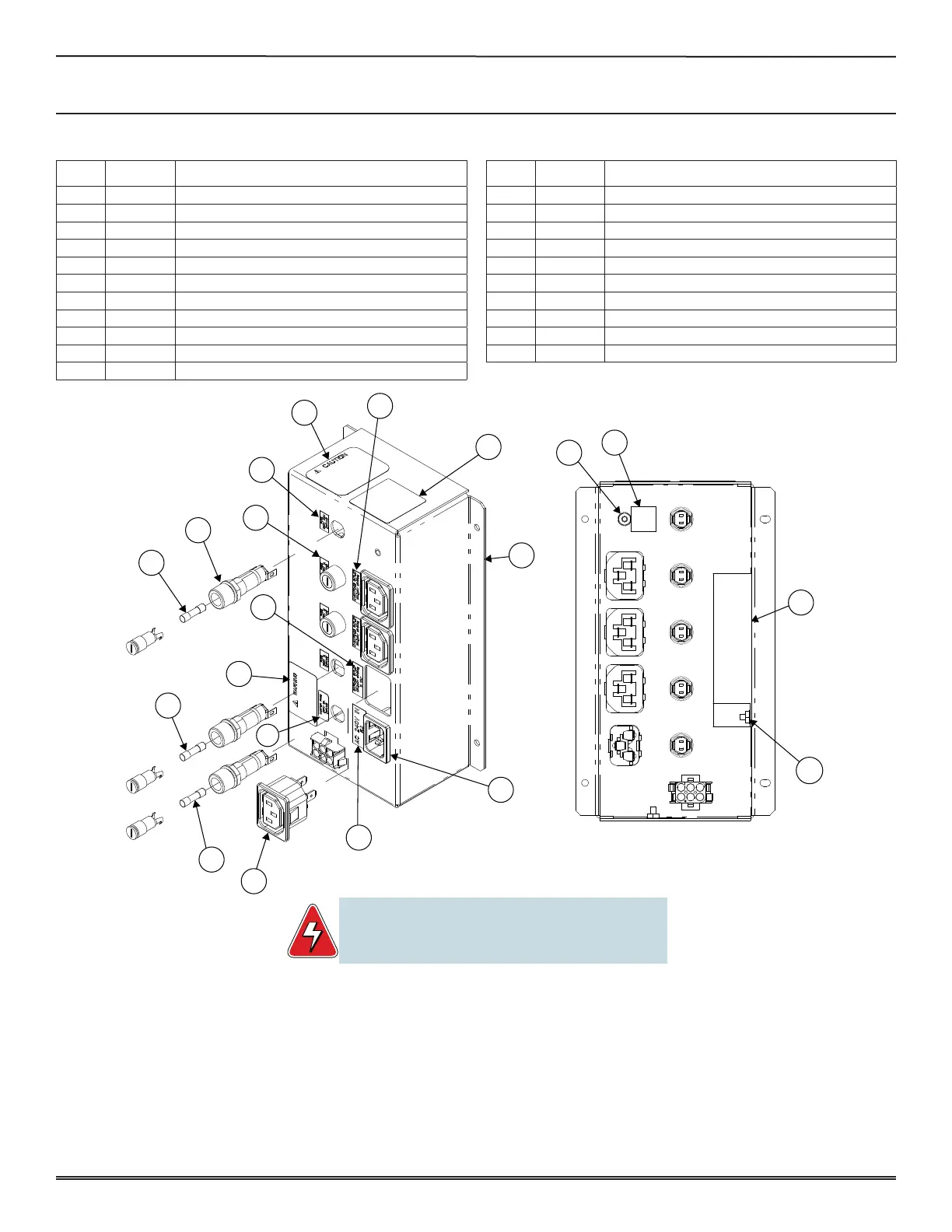

P/n 310613 assy, PWr cont Pnl, intl
7
5
15
14
10
19
11
1
18
12
8
2
9
17
16
4
6
3
2
13
ITEM PART # DESCRIPTION
- 110231 HRNS, AC INLET, NSR
- 110428 HRNS, AC MAIN, 240 VAC
1. 192720 HSG, PWR CONT PNL, INTL
2. 450015 NUT, HEX KEP, 6-32 (4)
3. 490290 FILTER, NOISE, NSR
4. 490459 OUTLET, CONVENIENCE, IEC (3)
5. 490460 HOLDER, FUSE, WITH KNOB, 3455HS2 (5)
6. 490462 FUSE, 5A, 5 X 20MM, IEC
7. 490463 FUSE, 2.5A, 5 X 20MM, IEC
8. 490464 FUSE, 1A, 5 X 20MM, IEC (3)
9. 530032 CONNECTOR, AC
ITEM PART # DESCRIPTION
10. 830056 DECAL, REPLACE SAME FUSE
11. 830057 DECAL, TURN OFF PWR, ELECTRIC SHOCK
12. 830058 DECAL, CHECKING OR REPLACING FUSE
13. 830061 DECAL, EARTH GROUND (2)
14. 830538 DECAL, FUSE, 250V, 2.5A, 240VAC
15. 830539 DECAL, FUSE, 250V, 1A, 240VAC (3)
16. 830541 DECAL, MASTERFUSE, 250V, 5A, 240VAC
17. 830543 DECAL, AC 240V IN 5A
18. 830673 DECAL, SWITCH OUTLET, 100-240V, 1A MAX
19. 830675 DECAL, UN-SW OUT, 100-240V, 1A MAX (2)
WARNING: Incorrect fuse replacement can result
in damage, injury or serious bodily harm. Replace
fuses with ones of the same type and electrical rating.
