Korg PA 80 User Manual

20-41

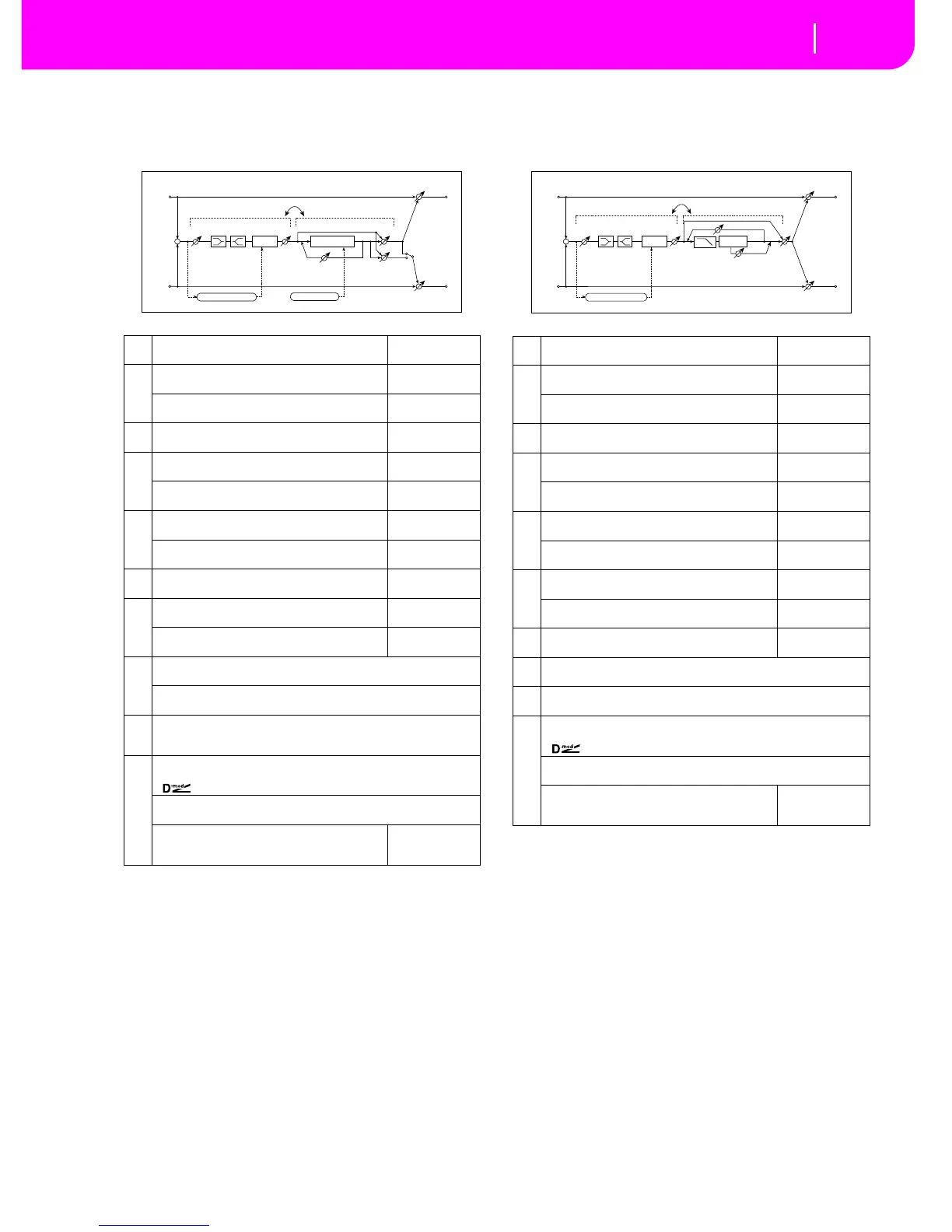

Effects
Mono – Mono Chain
068: Cmp-Phaser
(Compressor – Phaser)
This effect combines a mono-type compressor and a phaser.
You can change the order of the effect connection.
069: Cmp-MTapDly
(Compressor – Multitap Delay)
This effect combines a mono-type compressor and a multi-
tap delay. You can change the order of the effect connection.
a
[C] Sensitivity
Sets the sensitivity
1...100
☞ Fx:002
b
[C] Attack
Table , “Sets the attack level,” on page 2
1...100
☞ Fx:002
Output Level
Sets the compressor output level
0...100
☞ Fx:002
c
[C] EQ Trim
Table , “Sets the EQ input level,” on page 2
0...100
d
[C] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 2
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 2
–15...+15dB
e
[P] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
f
[P] Manual
Sets the frequency to which the effect is applied
0...100
g
[P] Depth
Sets the depth of LFO modulation
0...100
Resonance
Sets the resonance amount
–100...+100
☞ Fx:023
h
[P] Phaser Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
☞ Fx:010, 023
Output Mode Normal, Wet Invert
Selects the phaser output mode
☞ Fx:067
i
Routing CMP→PHS, PHS→CMP
Switches the order of the compressor and phaser connection
☞ Fx:067
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 1
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 1
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 1
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ
EQ Trim

Comp
Output Level
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
a
[C] Sensitivity
Sets the sensitivity
1...100
☞ Fx:002
b
[C] Attack
Table , “Sets the attack level,” on page 2
1...100
☞ Fx:002
Output Level
Sets the compressor output level
0...100
☞ Fx:002
c
[C] EQ Trim
Table , “Sets the EQ input level,” on page 2
0...100
d
[C] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 2
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 2
–15...+15dB
e
[D] Tap1 Time [msec]
Sets the Tap1 delay time
0...680msec
Tap1 Level
Sets the Tap1 output level
0...100
☞ Fx:045
f
[D] Tap2 Time [msec]
Sets the Tap2 delay time
0...680msec
Feedback
Sets the Tap2 feedback amount
–100...+100
g
[D] High Damp [%]
Sets the damping amount in the high range
0...100%
☞ Fx:043
h
[D] Mt.Delay Wet/Dry Dry, 1:99...99:1, Wet
Sets the multitap delay effect balance
i
Routing CMP→DLY, DLY→CMP
Switches the order of the compressor and multitap delay connection
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 1
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 1
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 1
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
Comp

Korg PA 80 Specifications

General

Type	Arranger Workstation
Polyphony	62 voices
Sound Engine	HI (Hyper Integrated) synthesis system
ROM	32 MB PCM ROM
Keyboard	61 keys
Effects	4 Stereo Master Effects
Styles	304 styles
Style Tracks	8 Style Tracks
Sequencer	16-track
Display	Backlit LCD
Connectivity	MIDI (In, Out, Thru)
Floppy Disk	3.5 inch
Outputs	L/Mono, R
Inputs	Mic/Line input with gain control
