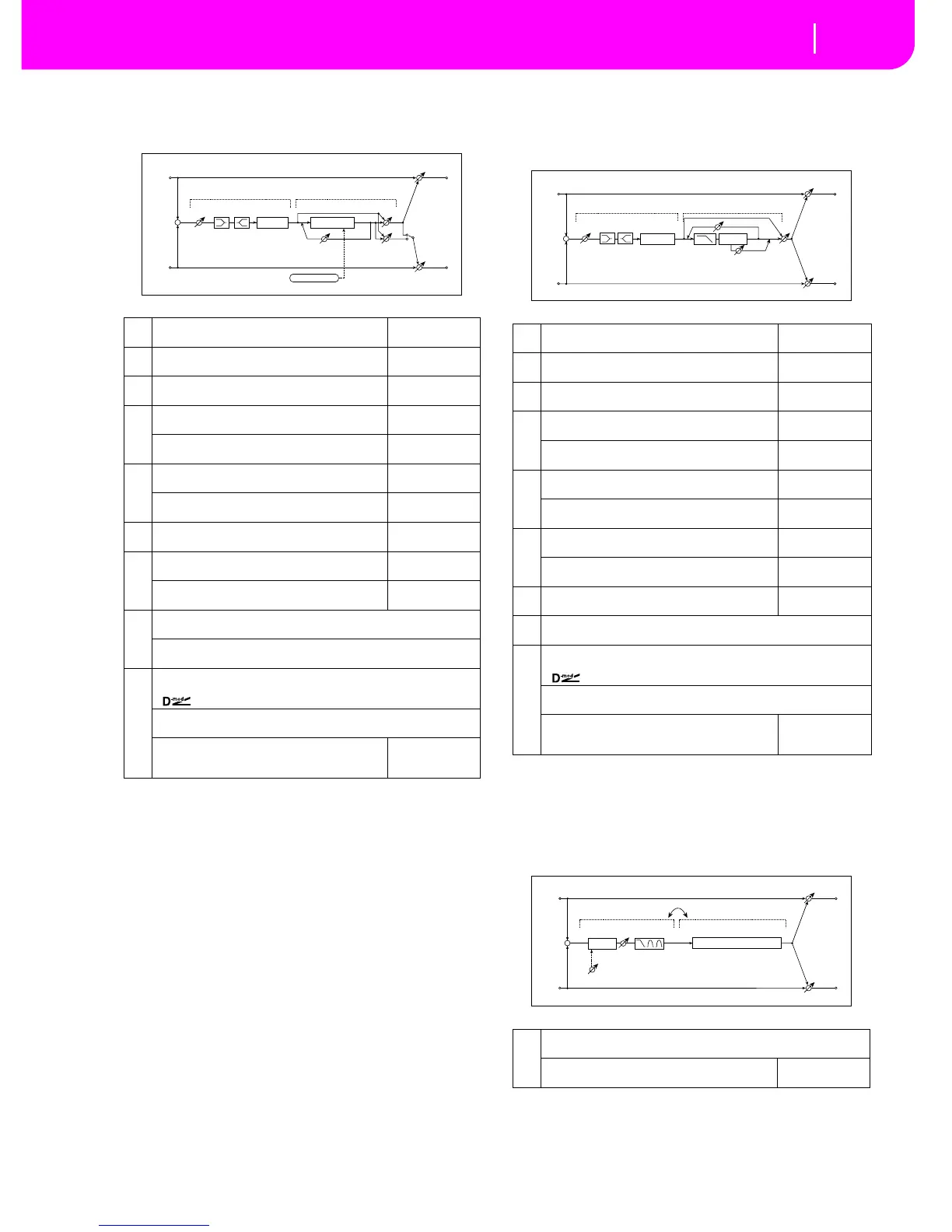

077: Exc-Phaser
(Exciter – Phaser)
This effect combines a mono-type limiter and a phaser.
078: Exc-MTapDly
(Exciter – Multitap Delay)
This effect combines a mono-type exciter and a multitap
delay.
079: OD/HG-Amp S
(Overdrive/Hi.Gain – Amp Simulation)
This effect combines a mono-type overdrive/high-gain dis-
tortion and an amp simulation. You can change the order of
the effect connection.
a
[X] Exciter Blend
Sets the intensity (depth) of the Exciter effect
–100...+100
☞ Fx:011
b
[X] Emphatic Point
Sets the frequency range to be emphasized
0...70
☞ Fx:011
c
[X] EQ Trim
Table , “Sets the EQ input level,” on page 2
0...100
d
[X] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 2
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 2
–15...+15dB
e
[P] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
f
[P] Manual
Sets the frequency to which the effect is applied
0...100
g
[P] Depth
Sets the depth of LFO modulation
0...100
Resonance
Sets the resonance amount
–100...+100
☞ Fx:023
h
[P] Phaser Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
☞ Fx:010, 023
Output Mode Normal, Wet Invert
Selects the phaser output mode
☞ Fx:060
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 1
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 1
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 1
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
LEQ
HEQ
EQ Trim
Exciter
Exciter
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
a
[X] Exciter Blend
Sets the intensity (depth) of the Exciter effect
–100...+100
☞ Fx:011
b
[X] Emphatic Point
Sets the frequency range to be emphasized
0...70
☞ Fx:011
c
[X] EQ Trim
Table , “Sets the EQ input level,” on page 2
0...100
d
[X] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 2
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 2
–15...+15dB
e
[D] Tap1 Time [msec]
Sets the Tap1 delay time
0...680msec
Tap1 Level
Sets the Tap1 output level
0...100
☞ Fx:045
f
[D] Tap2 Time [msec]
Sets the Tap2 delay time
0...680msec
Feedback (Tap2)
Sets the Tap2 feedback amount
–100...+100
g
[D] High Damp [%]
Sets the damping amount in the high range
0...100%
☞ Fx:043
h
[D] Mt.Delay Wet/Dry Dry, 1:99...99:1, Wet
Sets the multitap delay effect balance
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 1
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 1
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 1
–100...+100
a
[O] Drive Mode Overdrive, Hi-Gain
Switches between overdrive and high-gain distortion
Drive
Sets the degree of distortion
1...100
☞ Fx:006
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
LEQ HEQ
EQ Trim
Exciter
Exciter
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Amp Simulation
Amp Simulation Filter
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
