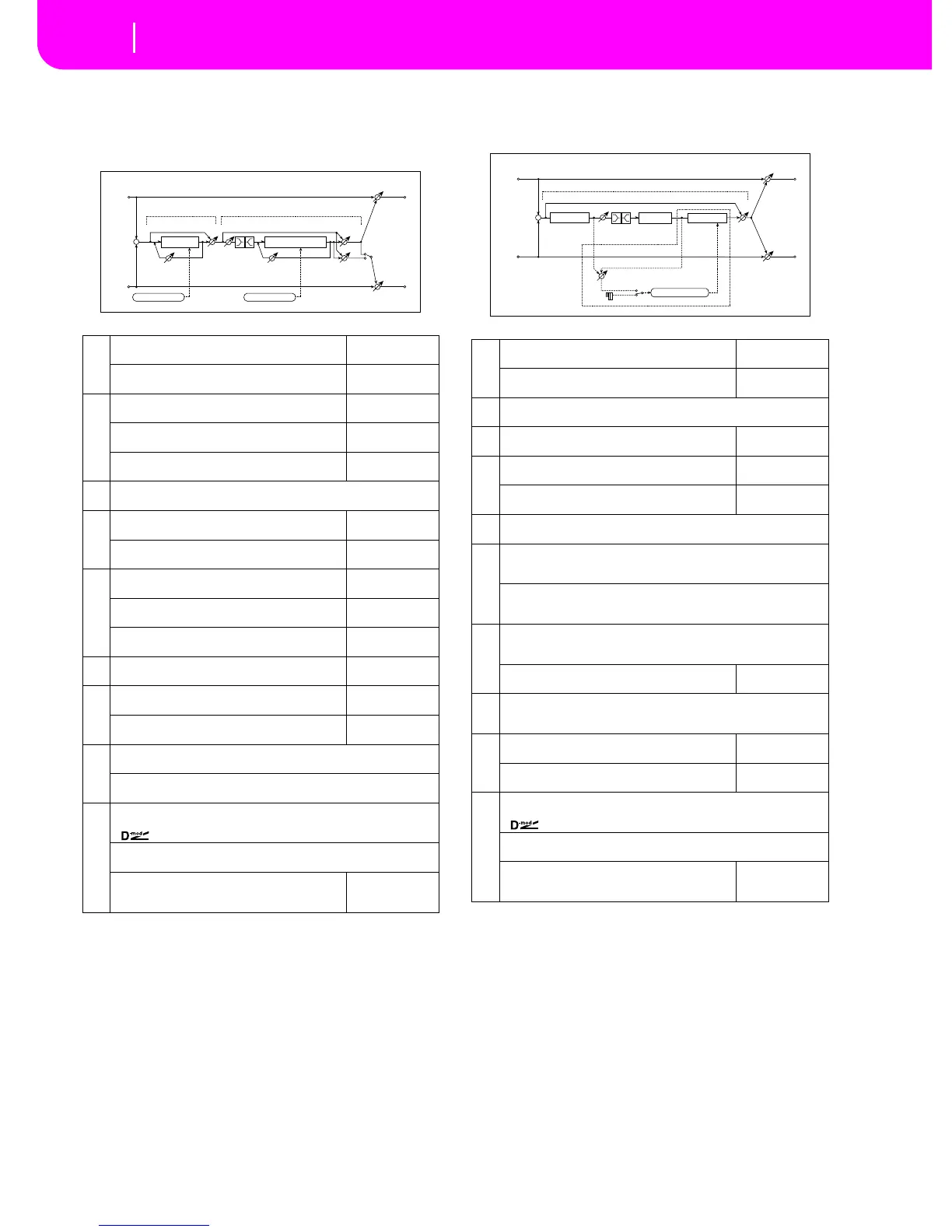

20-50
Effects
Mono – Mono Chain
088: Phser-ChoFl
(Phaser – Chorus/Flanger)
This effect combines a mono-type phaser and a chorus/
flanger.
089: Rev-Gate
(Reverb – Gate)
This effect combines a mono-type reverb and a gate.
f: Envelope Select, f: Src, g: Input Reverb Mix, g:
Threshold
The “Envelope Select” parameter enables you to select
whether turning the gate on and off is triggered by the
input signal level or controlled directly by the modulation
source. You can select from Off to Gate2+Dmpr for the Src
parameter to specify the modulation source.
When “Envelope Select” is set to Input, the gate is con-
trolled by the level of signals that are the combination of
the dry sound and the reverb sound. When the signal level
exceeds the threshold, the gate opens and the reverb
sound is output.
Normally, set “Input Reverb Mix” to Dry (the gate is con-
trolled only by the dry sound). If you wish to extend the
a
[P] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
b
[P] Manual
Sets the frequency to which the effect is applied
0...100
Depth
Sets the depth of LFO modulation
0...100
Resonance
Sets the resonance amount
–100...+100
Fx:023
c
[P] Phaser Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
Fx:010, 023
d
[F] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
e
[F] Delay Time [msec]
Sets the delay time
0.0...50.0msec
Depth
Sets the depth of LFO modulation
0...100
Feedback
Sets the feedback amount
–100...+100
Fx:020
f
[F] EQ Trim
Table , “Sets the EQ input level,” on page 2
0...100
g
[F] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 2
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 2
–15...+15dB
h
[F] Cho/Flng Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger
Fx:010, 020
Output Mode Normal, Wet Invert
Selects the output mode for the chorus/flanger
Fx:060
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 1
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 1
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 1
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Chorus/Flanger
Cho/Flng
Wet / Dry
LEQ
HEQ
EQ
Trim
Chorus/Flanger
Feedback
Phaser
Phaser
Wet / Dry
Phaser
Resonance
LFO: Tri / Sine
LFO: Tri / Sine
Normal
Wet Invert
Output Mode
+
a
[R] Reverb Time [sec]
Sets the reverberation time
0.1...10.0sec
High Damp [%]
Sets the damping amount in the high range
0...100%
b
[R] Pre Delay [msec] 0...200msec
Sets the delay time of the reverb sound and gate control signal
c
[R] EQ Trim
Table , “Sets the EQ input level,” on page 2
0...100
d
[R] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 2
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 2
–15...+15dB
e
[R] Reverb Balance Dry, 1:99...99:1, Wet
Sets the reverb effect balance
f
[G] Envelope Select D-mod, Input
Switches between modulation source control and input signal control
Src Off...Gate2+Dmpr
Selects the modulation source that controls the gate when Envelope Select
is set to D-mod
g
[G] Input Reverb Mix Dry, 1:99...99:1, Wet
Sets the balance between the dry and reverb sounds of the gate control sig-
nal.
Threshold
Sets the gate threshold level
0...100
h
[G] Polarity +, –
Switches between non-invert and invert of the gate on/off state
Fx:005
i
[G] Attack
Sets the attack time
1...100
Fx:005
Release
Sets the release time
1...100
Fx:005
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 1
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 1
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 1
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Reverb
Balance
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ
HEQ
EQ Trim
Reverb
Pre Delay
Envelope - Control
D-mod
Input
Envelope Select
Gate
Input Reverb Mix
Reverb
Gate
Gate+Dmpr
