Kyocera FS-2020D Service Manual

2J0/2J1/2J2
2-1-3
(3) Paper feed conveying section
The conveying section consists of the parts shown in the following illustration and conveys papers from the paper cassette
or the MP tray to the transfer/separation section when papers are fed. Paper by feeding or refeeding is conveyed by the
middle feed roller to the position where the registration sensor is turned on, and then sent to the transfer/separation sec-
tion by the upper registration roller and lower registration roller.

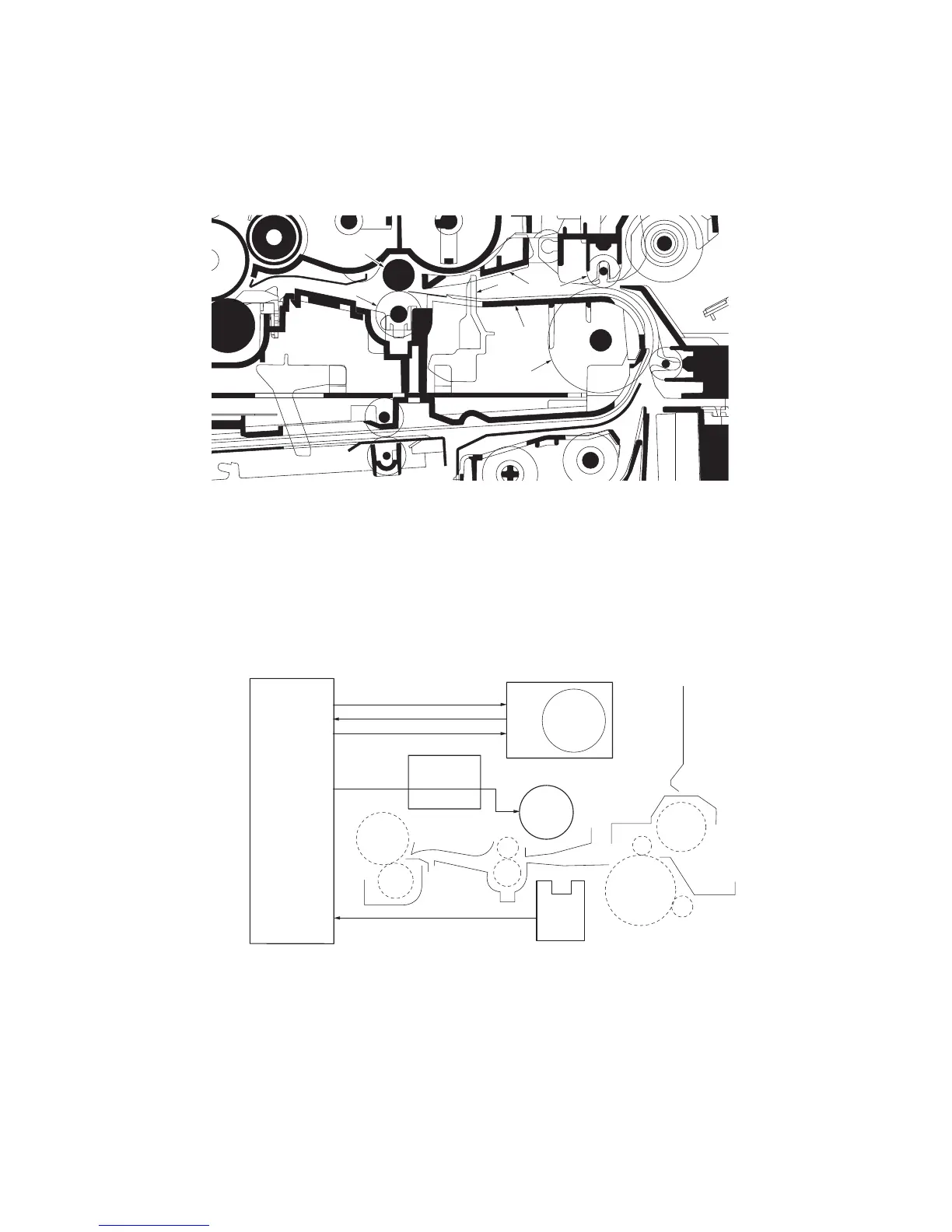

Figure 2-1-5Paper feed conveying section
Figure 2-1-6Paper feed conveying section block diagram







(1) Middle feed roller
(2) Feed DU pulley
(3) Feed frame
(4) Registration upper guide
(5) Registration sensor (actuator)
(6) Registration lower roller
(7) Registration upper roller
Engine PWB
Connect-R
PWB
Main
motor
Regist-
ration
clutch
Regist-
ration
sensor
3
4
5
YC501-3
YC501-4
YC501-5
YC502-7
MMOTONN
MMOTRDYN
MMOTCLK
REGDRN

Kyocera FS-2020D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Memory type	DDR2
Processor model	PowerPC 440
Maximum internal memory	1152 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	52 dB
Power supply type	220/240 V, 50/60 Hz
Capacity cartridge	12000 sheets
Power consumption (active)	560 W
Recommended monthly print volume	20000 pages
Maximum duty cycle	150.000 pages per month
Number of print cartridges	1
Total input capacity	500 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	9.2 W
Power consumption (PowerSave)	5.7 W
Energy Star Typical Electricity Consumption (TEC)	2.6 kWh/week
Display	LCD
Certification	GS, TüV, CE
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Ethernet, Wireless LAN
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	382 x 394 x 285 mm
