Kyocera FS-2020D - Detaching and Refitting the Main Charger Unit

2J0/2J1/2J2
1-5-13
(2) Detaching and refitting the main charger unit
Procedure
1. Remove the drum unit (See page 1-5-12).
2. Unlock the lock lever and then remove the
main charger unit.
3. Check or replace the main charger unit and
refit all the removed parts.

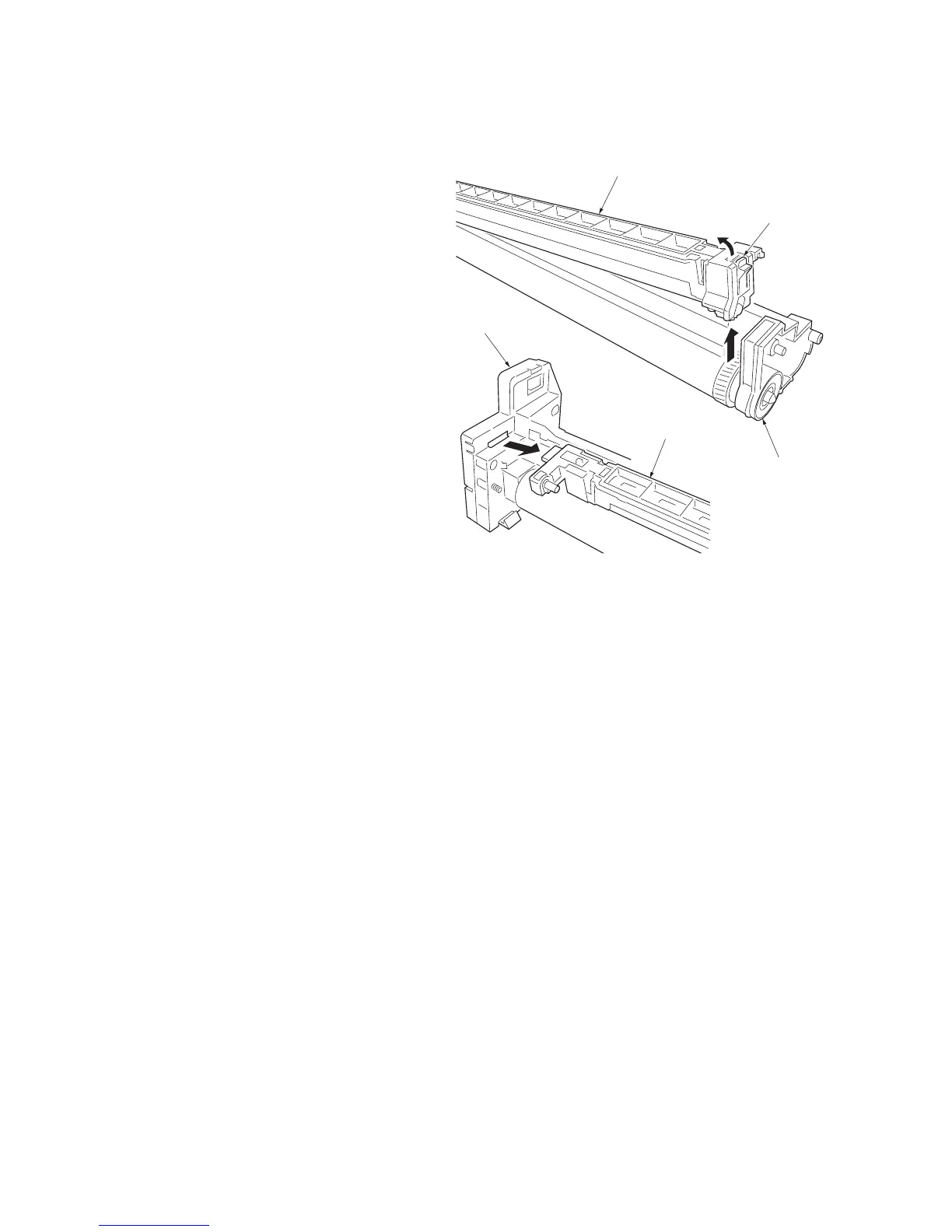

Figure 1-5-16
Main charger unit
Main charger unit
Lock lever
Drum unit
Drum unit
