Kyocera FS-2020D Service Manual

2J0/2J1/2J2
1-4-9

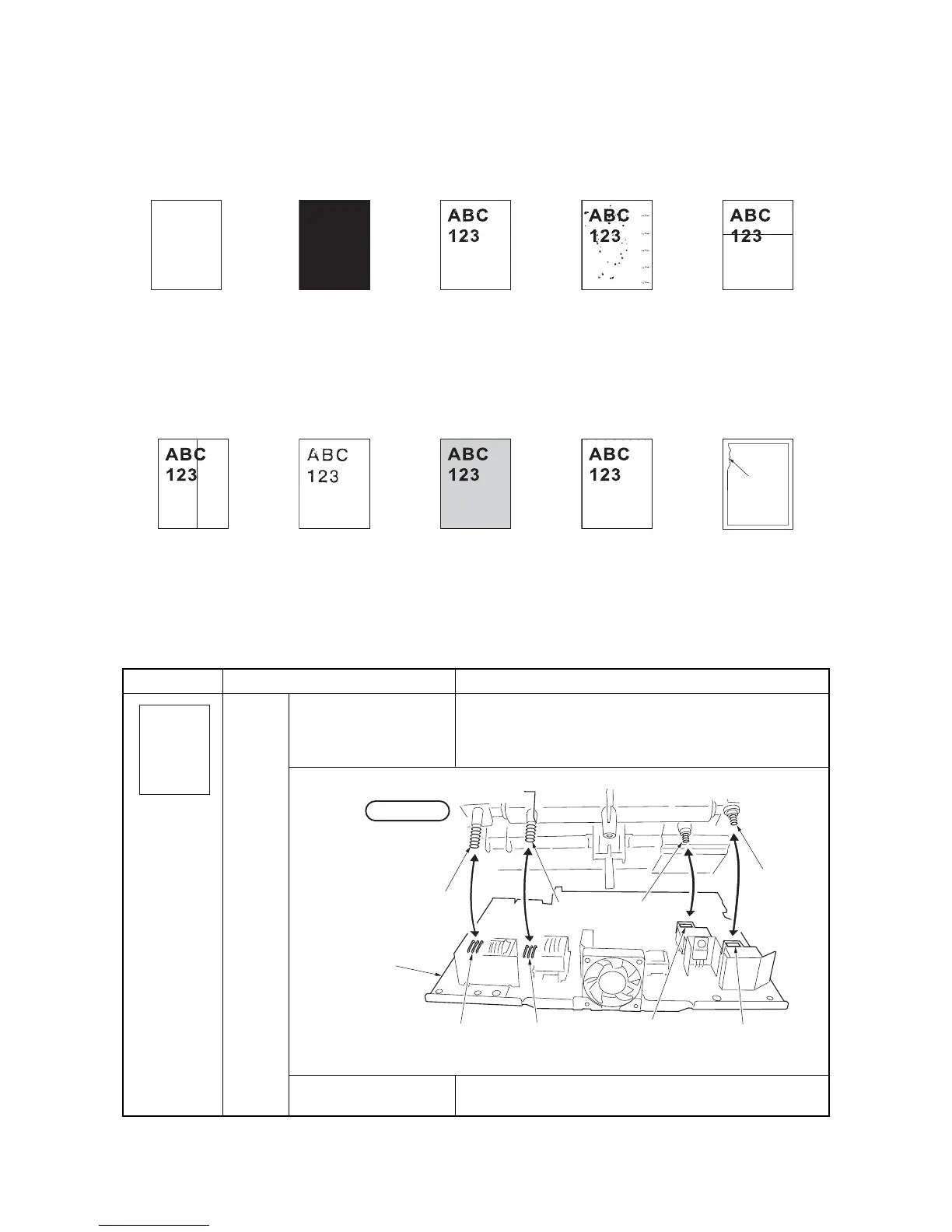

1-4-3 Image formation problems
(1) Completely blank printout.
(1)Completely blank
printout.
(2)All-black printout. (3)Dropouts. (4)Black dots. (5)Black horizontal
streaks.
See page
1-4-9/1-4-10
See page 1-4-10 See page 1-4-11 See page 1-4-11 See page 1-4-13
(6)Black vertical
streaks.
(7)Unsharpness. (8)Gray background. (9)Dirt on the top
edge or back of the
paper.
(10)Undulated print-
ing at the left edge
(scanning start posi-
tion).
See page 1-4-13 See page 1-4-13 See page 1-4-14 See page 1-4-14 See page 1-4-14
Print example Causes Check procedures/corrective measures
(Continued on
next page.)
No trans-
fer
charging.
Poor contact of engine
PWB’s transfer bias out-
put terminal and printer’s
contact (spring).
Check the installation position of the engine PWB.
Refer to figure 1-4-3 below.
Figure 1-4-3
Defective engine PWB. Replace the engine PWB (See page 1-5-25).
This vertical
line should
be straight.
Engine PWB
Printer bottom
Contact
(spring)
Main charger
output terminal
Developing bias
output terminal
Separation bias
output terminal
Transfer bias
output terminal
Contact
(spring)
Contact
(spring)
Contact
(spring)
