Kyocera FS-2020D - 1-1-2 Parts Names

2J0/2J1/2J2
1-1-4
1-1-2 Parts names
(1) Overall

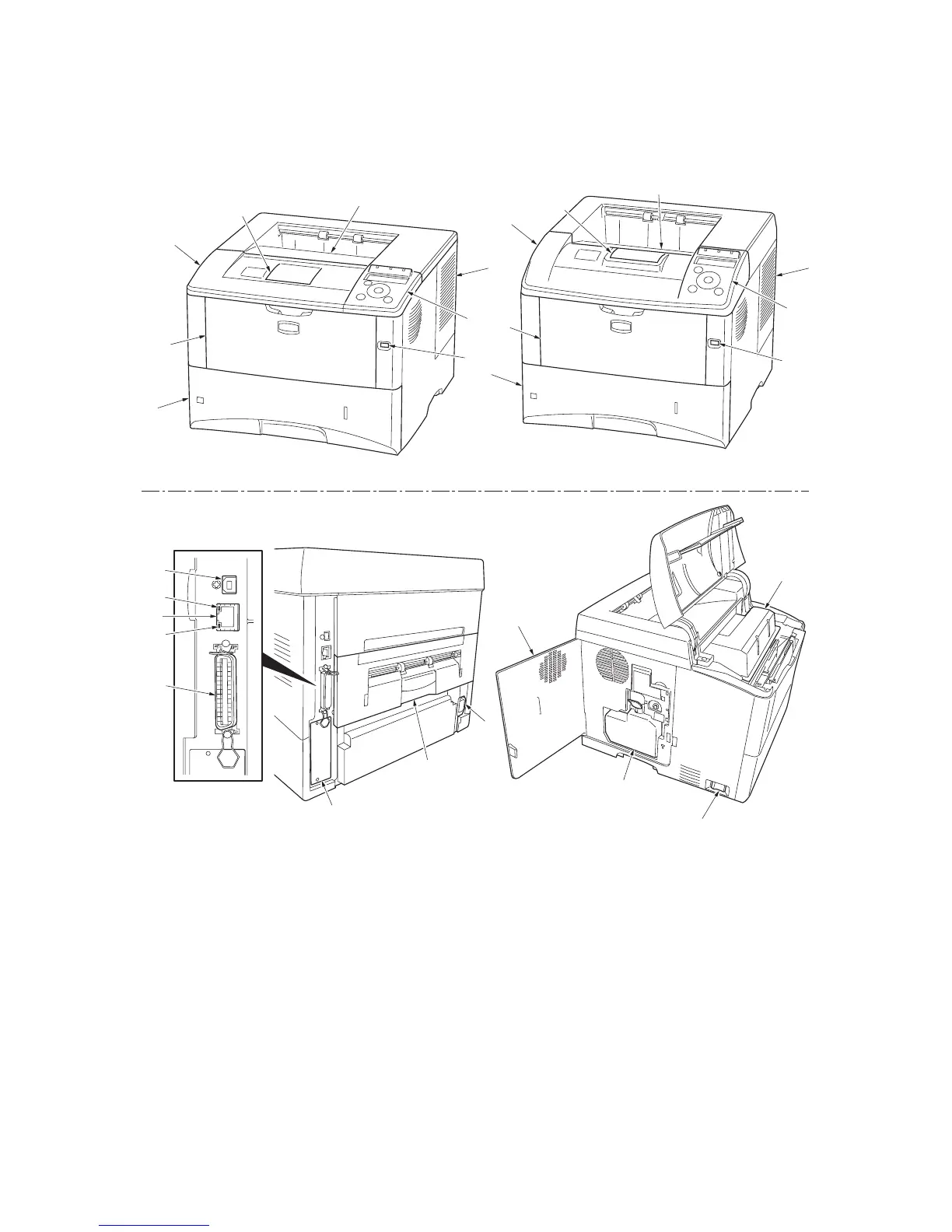

Figure 1-1-1




























35/37 ppm printer
(EUR/USA model)
40/42 and 45/47 ppm printers
(EUR/USA model)
1. Top cover
2. Paper stopper
3. Top tray
4. Right cover
5. Operation panel
6. USB memory slot
7. Paper cassette
8. MP (Multi-Purpose) tray
9. Left side cover
10. Toner container
11. Power switch
12. Waste toner box
13. USB interface connector
14. Network indicators
(40/42 and 45/47 ppm printers
[EUR/USA model] only)
15. Network interface connector
(40/42 and 45/47 ppm printers
[EUR/USA model] only)
16. Parallel interface connector
17. AC inlet
18. Rear unit
19. Optional interface slot (Network/
Memory card/Hard disk)
