Kyocera FS-2020D Service Manual

2J0/2J1/2J2
1-4-12

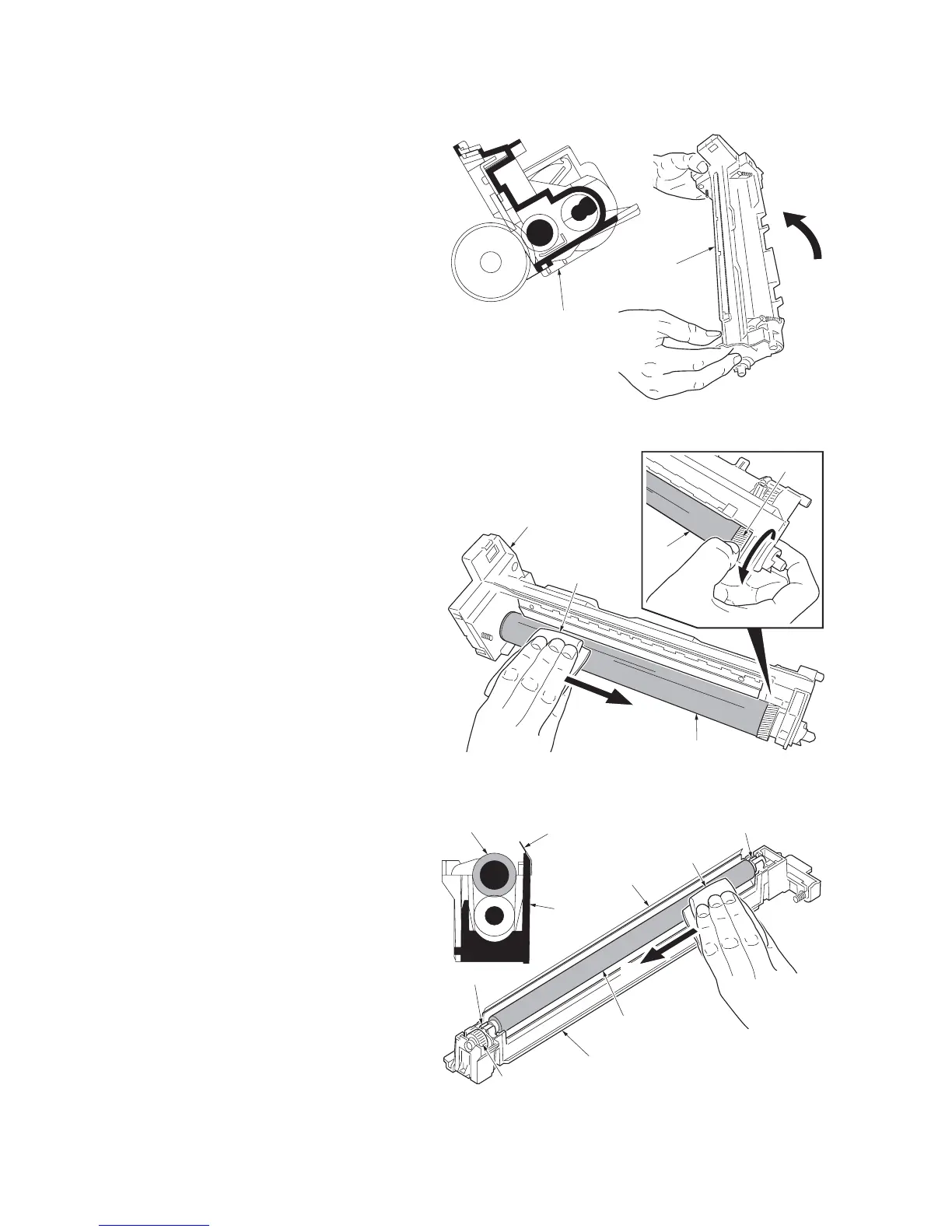

Cleaning the drum surface
1. Remove the drum unit (See page 1-5-12).
2. Remove the main charger unit (See page 1-
5-13).
3. Hold the drum unit at an angle shown right
figure.
Use care not to drop foreign objects into the
drum.
Figure 1-4-6
4. Rotate the drum by rotating the drum gear.
(in the direction of arrow (A), approximately
90 degrees)
CAUTION: Do not turn the drum in the
opposite direction.
5. Lightly wipe the drum surface with a clean-
ing cloth in the direction of arrow (B).
NOTE: Use a cleaning cloth with fine
seams.
6. Repeat the steps 4 and 5 until the entire sur-
face of the drum surface is cleaned.
NOTE: Do not leave waste textiles of the
cleaning cloth on the drum surface.
Figure 1-4-7
Cleaning the main charger roller surface
1. Lightly wipe the main charger roller surface
in the direction of arrow (A).
NOTE: Use the cleaning cloth with fine
seams.
CAUTION: Do not accidentally apply grease
onto the main charger roller surface.
2. Slightly rotate the main charger roller to a
new position.
3. Repeat the steps 1 and 2 to clean the entire
surface of the main charger roller.
NOTE: Do not leave waste textiles of the
cleaning cloth on the main charger roller
surface.
4. Lightly wipe the edges of the urethane
sheet.
CAUTION: Use care not to deform or dam-
age the urethane sheet.
Figure 1-4-8
Drum unit
Drum unit
Cleaning cloth
Drum
Drum
Drum gear
Drum unit
(A)
(B)
Cleaning cloth
Main charger roller
Main charger unit
Main
charger unit
(Greased gear)
(Greased bush)
(Greased bush)
Main charger roller
Urethane sheet
Urethane
sheet
(A)

Kyocera FS-2020D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Memory type	DDR2
Processor model	PowerPC 440
Maximum internal memory	1152 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	52 dB
Power supply type	220/240 V, 50/60 Hz
Capacity cartridge	12000 sheets
Power consumption (active)	560 W
Recommended monthly print volume	20000 pages
Maximum duty cycle	150.000 pages per month
Number of print cartridges	1
Total input capacity	500 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	9.2 W
Power consumption (PowerSave)	5.7 W
Energy Star Typical Electricity Consumption (TEC)	2.6 kWh/week
Display	LCD
Certification	GS, TüV, CE
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Ethernet, Wireless LAN
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	382 x 394 x 285 mm
