Kyocera FS-2020D - 1-5-5 Drum Section

2J0/2J1/2J2
1-5-12
1-5-5 Drum section
(1) Detaching and refitting the drum unit
Procedure
1. Remove the developing unit (See page 1-5-
11).
2. Open the left side cover and then remove
the waste toner box.
3. Unlock the drum unit lock and then remove
the drum unit.
4. Check or replace the drum unit and refit all
the removed parts.

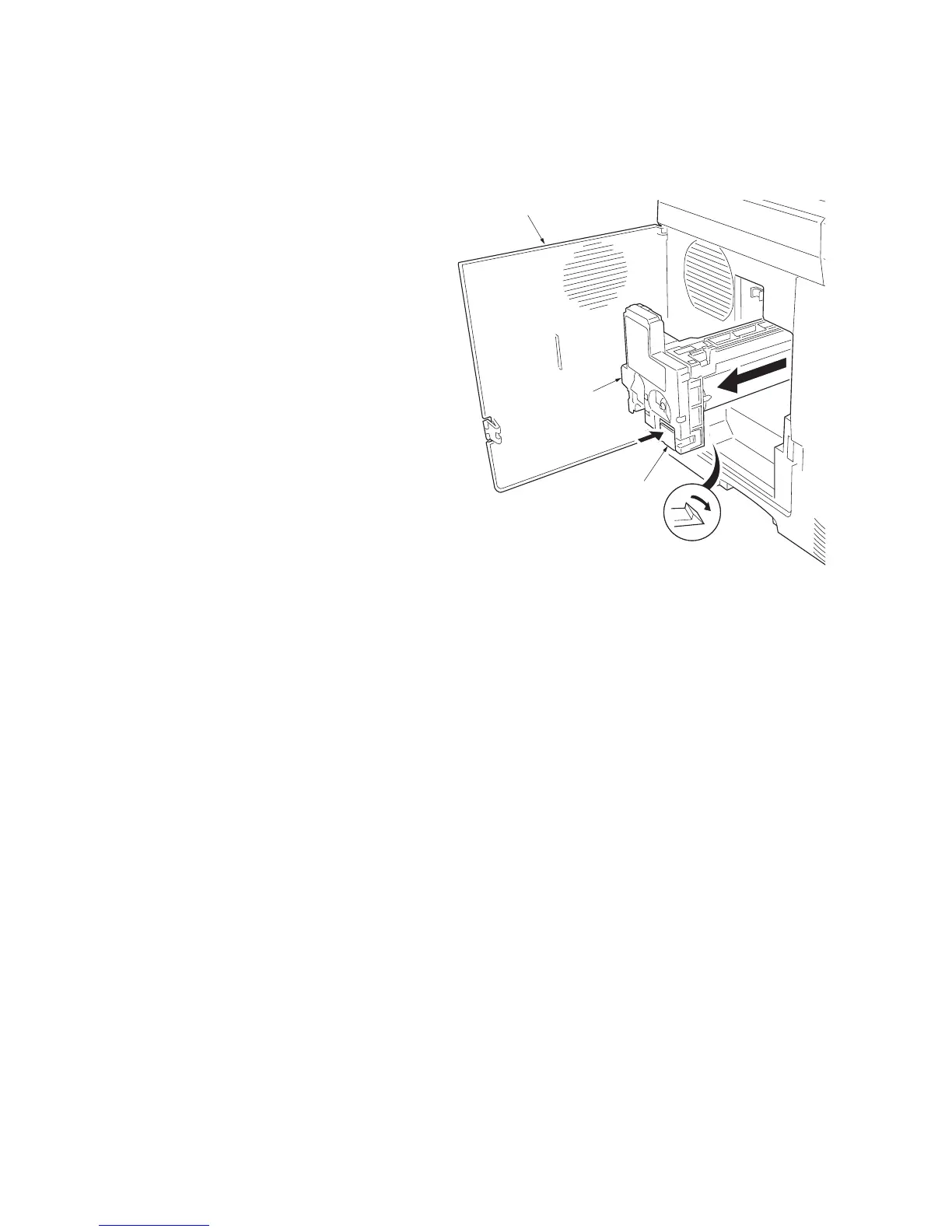

Figure 1-5-15
Drum unit
lock
Drum unit
Left side cover
