Kyocera FS-2020D Service Manual

2J0/2J1/2J2
1-5-25
1-5-8 PWBs
(1) Detaching and refitting the engine PWB
Procedure
1. Remove the developing unit (See page 1-5-
11).
2. Remove the drum unit (See page 1-5-12).
3. Remove the top cover (See page 1-5-3).
4. Remove the left cover (See page 1-5-4).
5. Remove the PSU fan motor (See page 1-5-
32).
6. Stand the printer front side up.
7. Remove five screws and then remove the
bottom plate1.
8. Remove two screws and then remove the
bottom plate 2.

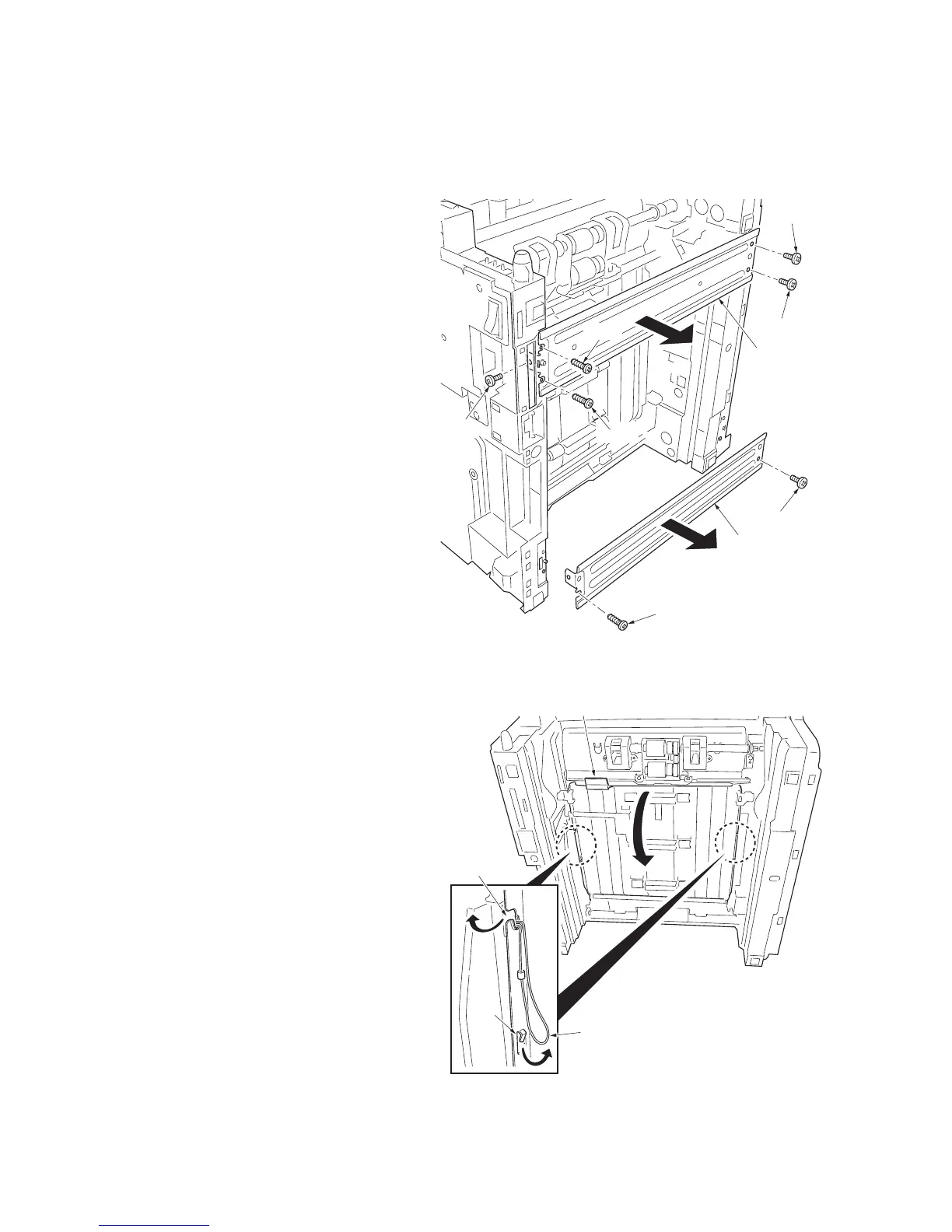

Figure 1-5-33
9. Remove two wires from the hooks and
notches.
10. Open the DU guide (duplex cover).
Figure 1-5-34
Bottom plate 1
Bottom plate 2
Screw
Screw
Screw
Screw
Screw
(M3)
Screw
Screw
Wire
Hook
Notch
DU guide (duplex cover)

Kyocera FS-2020D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Memory type	DDR2
Processor model	PowerPC 440
Maximum internal memory	1152 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	52 dB
Power supply type	220/240 V, 50/60 Hz
Capacity cartridge	12000 sheets
Power consumption (active)	560 W
Recommended monthly print volume	20000 pages
Maximum duty cycle	150.000 pages per month
Number of print cartridges	1
Total input capacity	500 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	9.2 W
Power consumption (PowerSave)	5.7 W
Energy Star Typical Electricity Consumption (TEC)	2.6 kWh/week
Display	LCD
Certification	GS, TüV, CE
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Ethernet, Wireless LAN
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	382 x 394 x 285 mm
