2J0/2J1/2J2
1-5-14

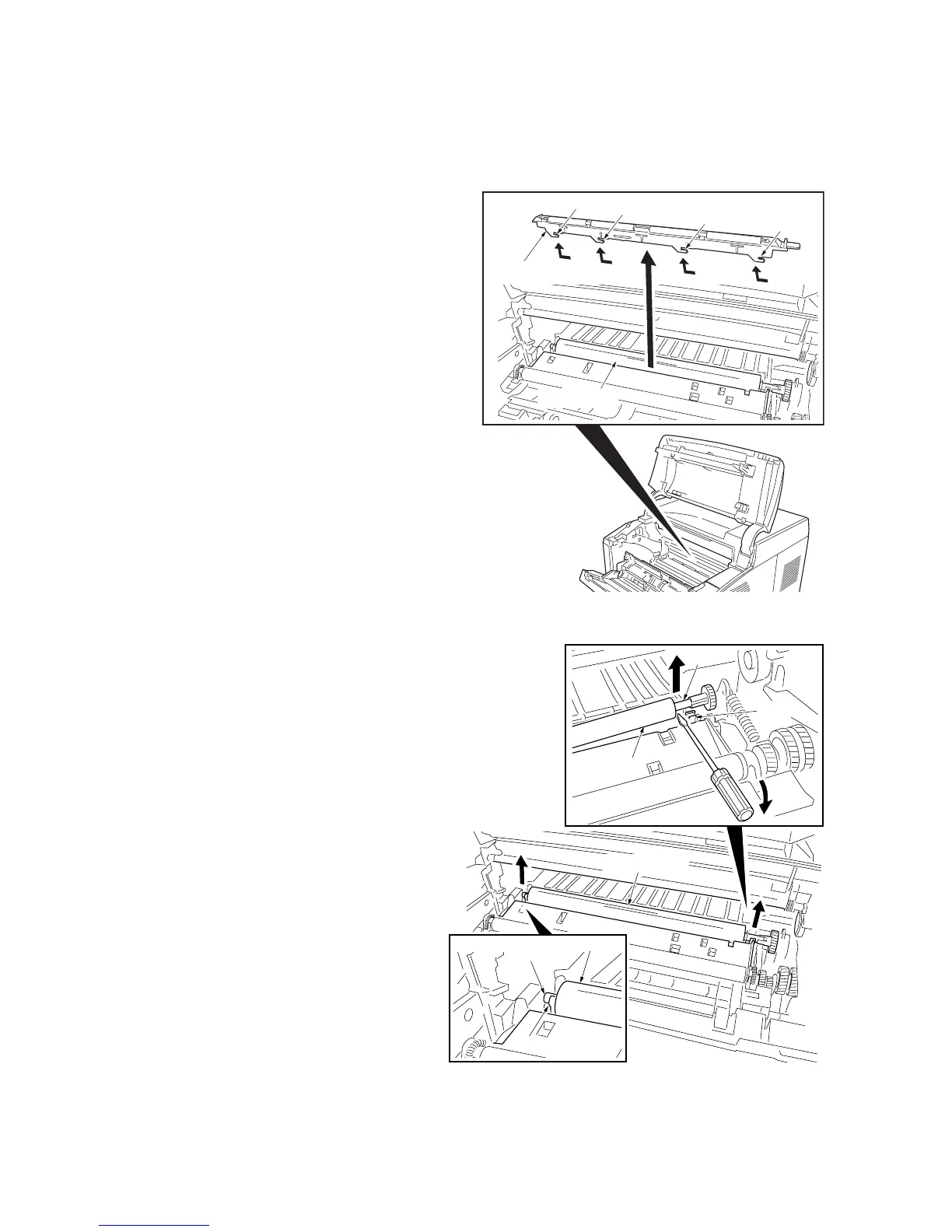

1-5-6 Transfer/separation section
(1) Detaching and refitting the transfer roller and separation charger brush unit
Procedure
1. Remove the developing unit (See page 1-5-
11).
2. Remove the drum unit (See page 1-5-12).
3. Slide the paper chute guide and unhook the
hooks.
4. Remove the paper chute guide.
Figure 1-5-17
5. Remove the shaft (transfer roller) from the
both bushes.
Figure 1-5-18
Paper chute guide
Hook
Hook
Hook
Hook
Transfer roller
Shaft
Transfer roller
Bush
Transfer roller
Bush
Transfer roller
Shaft
