2J0/2J1/2J2
1-5-20
(3) Detaching and refitting the heat roller
Procedure
1. Remove the fuser heater lamp (See page 1-
5-17).
2. Unhook two bearing retainer’s hooks and
then remove the heat roller (assembly) from
the fuser upper frame.
3. Remove the heat gear Z46, two bearings,
two bushes and two stoppers from the heat
roller.
4. Check or replace the heat roller and refit all
the removed parts.

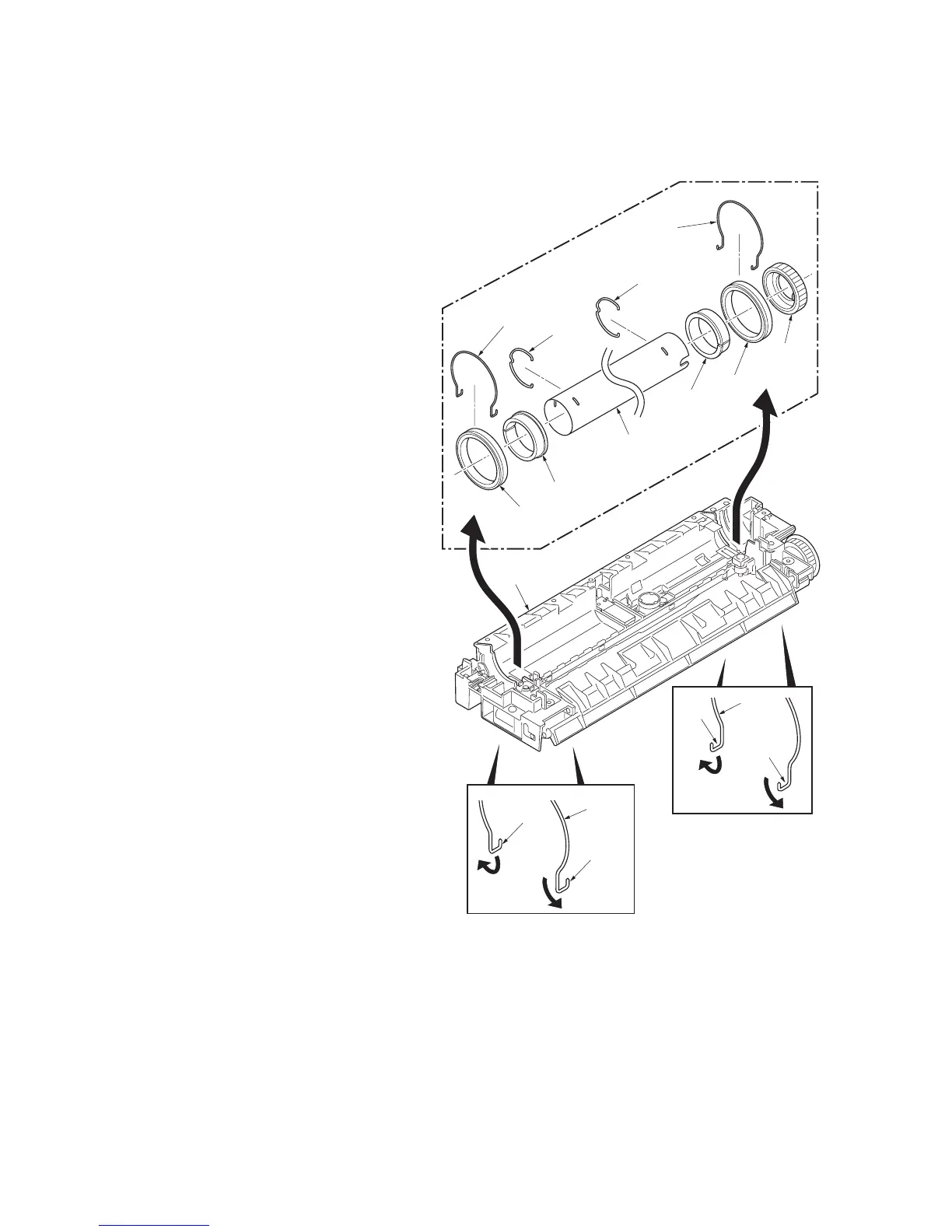

Figure 1-5-25
Heat roller
Stopper
Stopper
Assembly
Bush
Hook
Hook
Hook
Hook
Bush
Bearing
Bearing
Bearing
retainer
Bearing
retainer
Bearing
retainer
Bearing
retainer
Heat gear
Z46
Fuser upper
frame
