1-5-3 Paper feed section
(1) Detaching and refitting the paper feed assembly (paper feed roller and pickup roller)
Procedure
1. Remove the paper cassette.
2. While pushing the lock and then slide the
paper feed roller pin.
3. While pressing the lever and then remove
the paper feed assembly.
4. Check or replace the paper feed assembly
and refit all the removed parts.

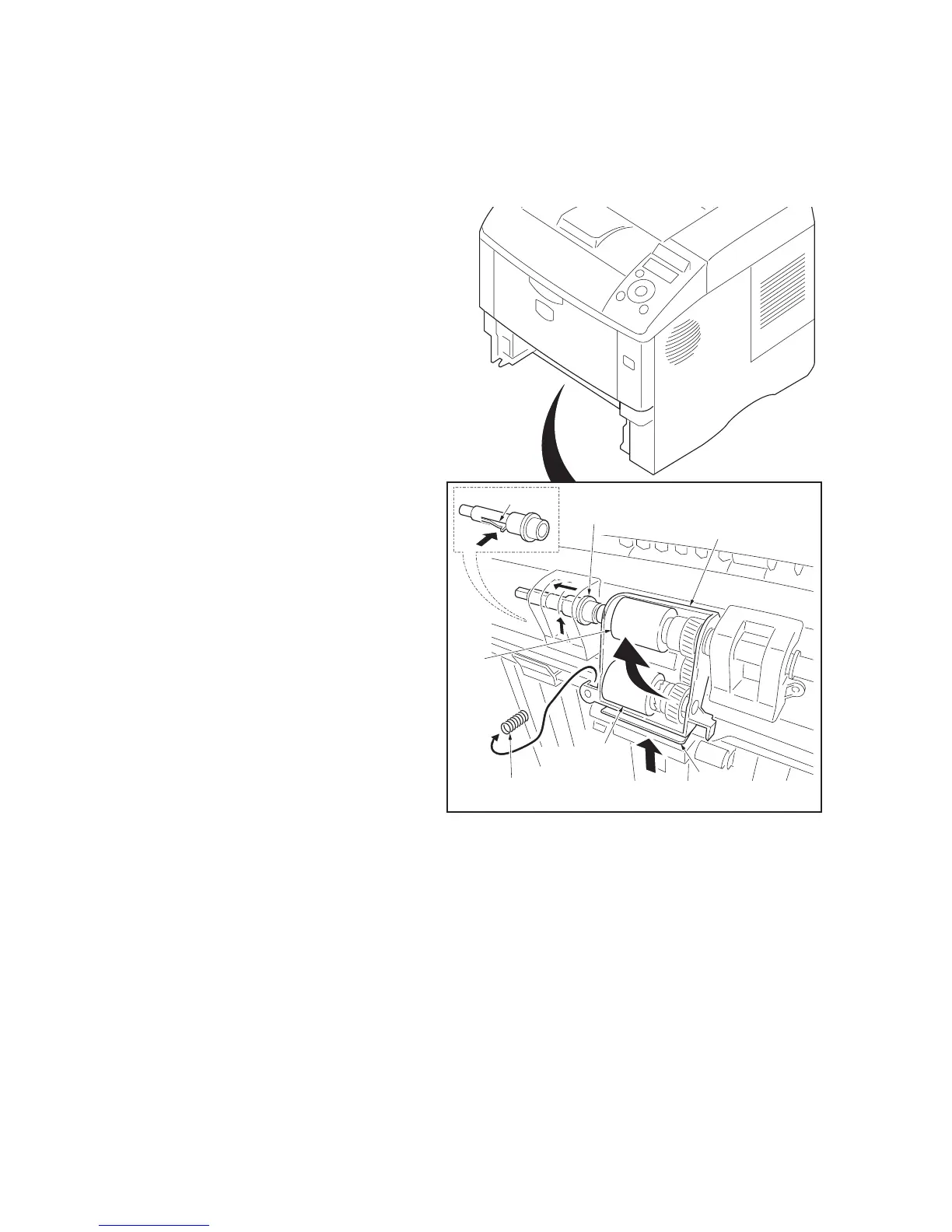

Figure 1-5-6
Paper feed assembly
(Paper
feed
roller)
(Pickup
roller)
Paper feed roller pin
*: 40/42 and 45/47 ppm printers (EUR/USA model) only.
Lever
Lock
Spring*
