Kyocera FS-2020D - Detaching and Refitting the Laser Scanner Unit

2J0/2J1/2J2
1-5-38
(3) Detaching and refitting the laser scanner unit
Procedure
1. Remove the top cover (See page 1-5-3).
2. Remove the right cover (See page 1-5-4).
3. Remove the following connectors from the
main PWB.
Two connectors: 35/37 and 40/42 ppm print-
ers (EUR/USA model)
Three connectors: 45/47 ppm printer (EUR/
USA model)

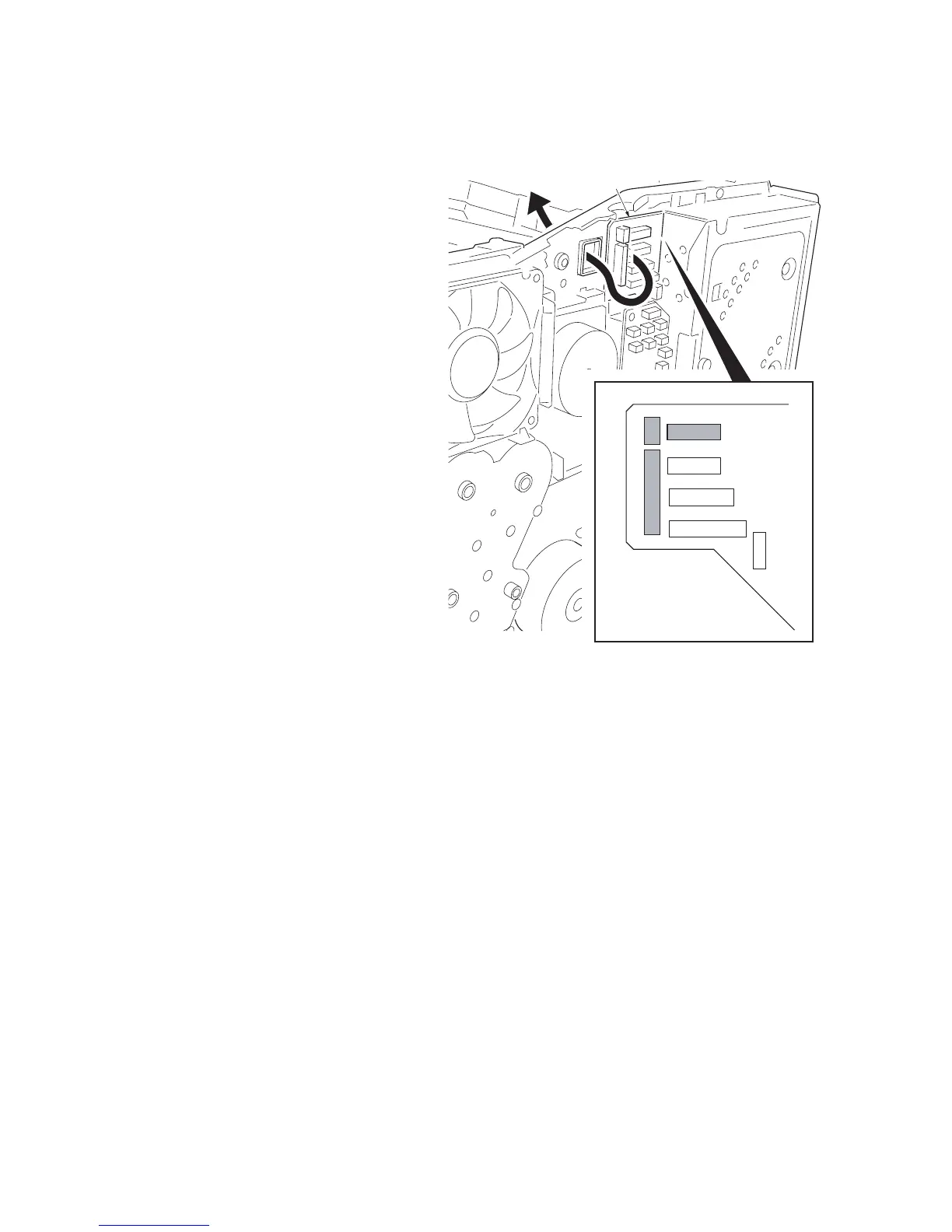

Figure 1-5-50
YC9
YC7
YC14
YC12
YC16YC11
YC4
YC9: 45/47 ppm printer
(EUR/USA model) only
Main PWB
Main PWB
Connectors
