(4) Detaching and refitting the MP tray paper feed roller
Procedure
1. Open the MP tray.
2. Grasp and pull the MP tray upwards until it
is removed from the printer.

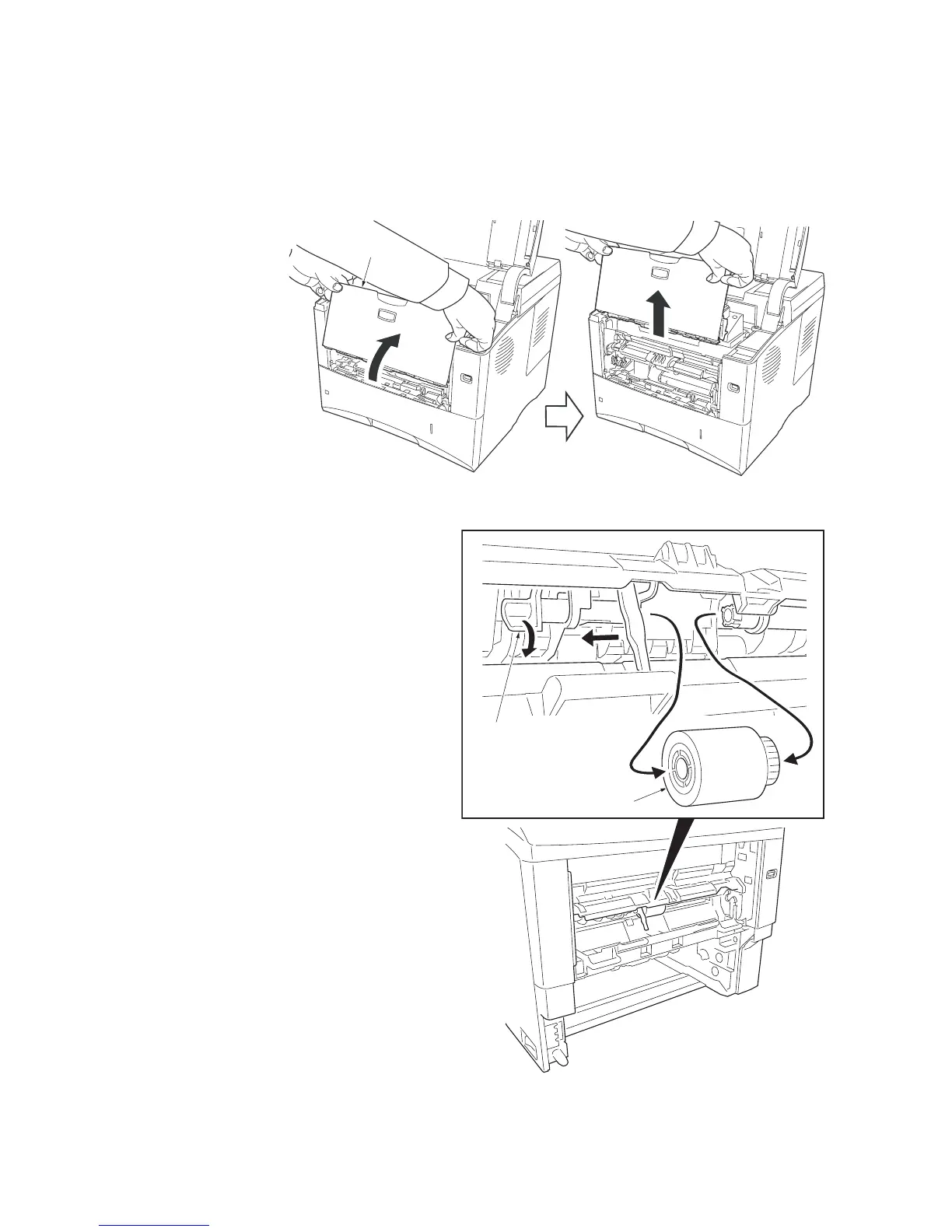

Figure 1-5-12
3. Pull the MP tray paper feed roller holder. (1)
4. Slide the MP tray paper feed roller holder.
(2)
5. Remove the MP tray paper feed roller.
6. Check or replace the MP tray paper feed
roller and refit all the removed parts.
Figure 1-5-13
MP tray
MP tray paper feed roller
MP tray paper feed roller holder
