2J0/2J1/2J2
1-1-6
1-1-3 Machine cross section

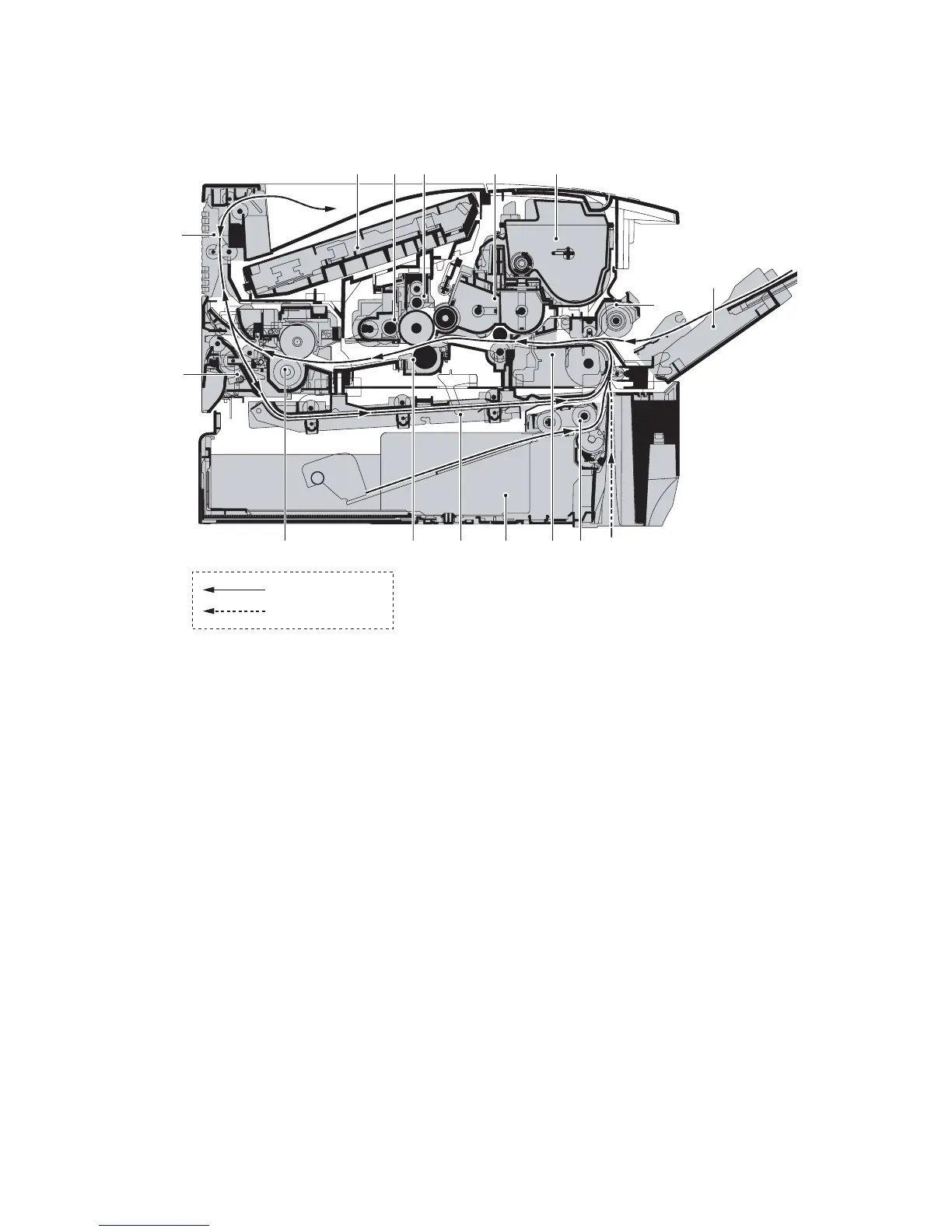

Figure 1-1-3 Machine cross section (35/37 ppm printer [EUR/USA model])
Paper path
Paper path (optional)
35/37 ppm printer
(EUR/USA model)
1. MP (Multi-Purpose) tray
2. MP tray paper feed unit
3. Toner container
4. Developing unit
5. Main charger unit
6. Drum unit
7. Laser scanner unit
8. Paper exit section
9. Rear unit
10. Fuser unit
11. Transfer/separation section
12. Duplex paper conveying section
13. Paper cassette
14. Paper conveying section
15. Paper cassette paper feed section
