1-5-4 Developing section
(1) Detaching and refitting the developing unit
Procedure
1. Open the top cover.
2. Open the MP tray.
3. Remove the developing unit.
4. Check or replace the developing unit and
refit all the removed parts.

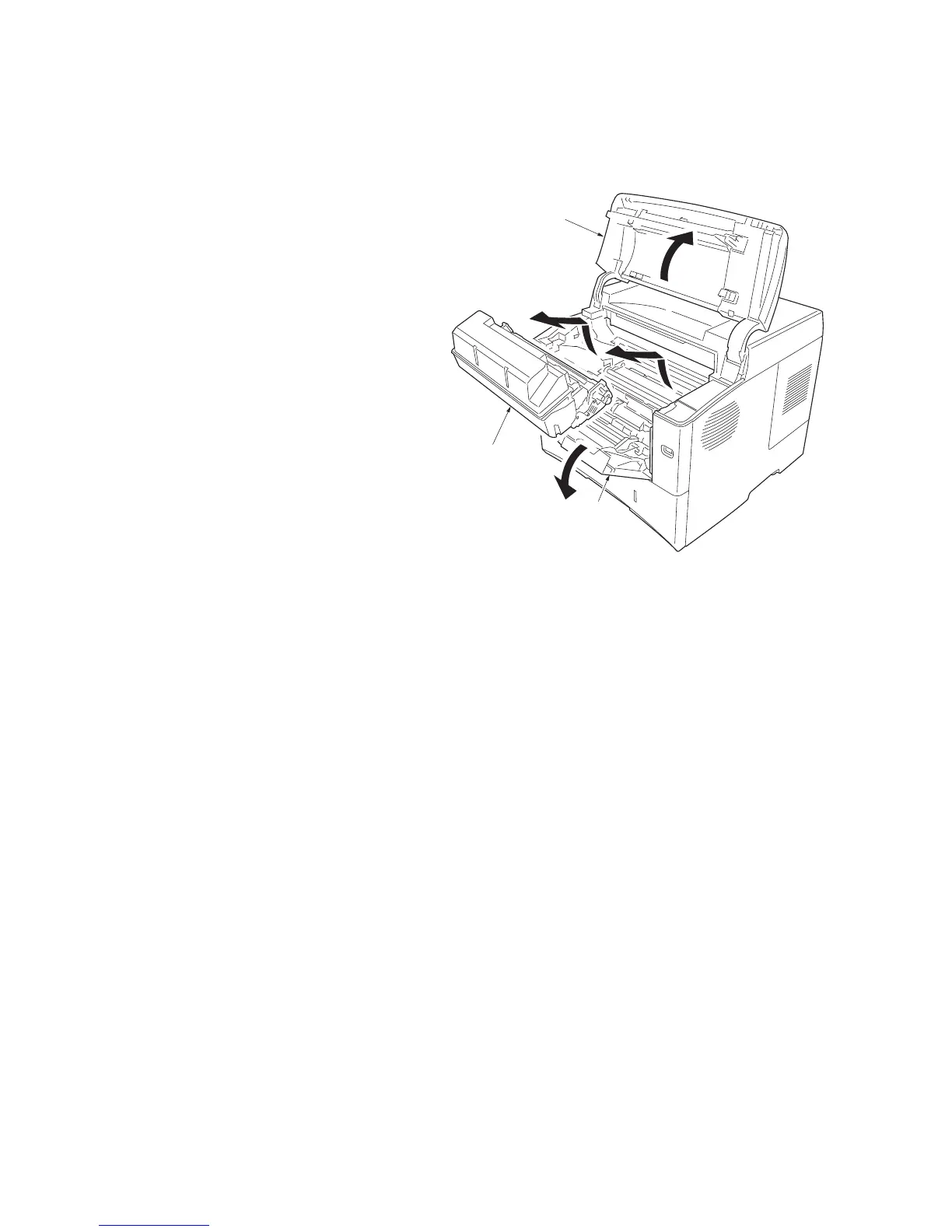

Figure 1-5-14
Top cover
Developing unit
MP tray
