10. Remove the one screw (nut) and then
remove the fuser thermistor 2 (40/42 and
45/47 ppm printers [EUR/USA model] only).

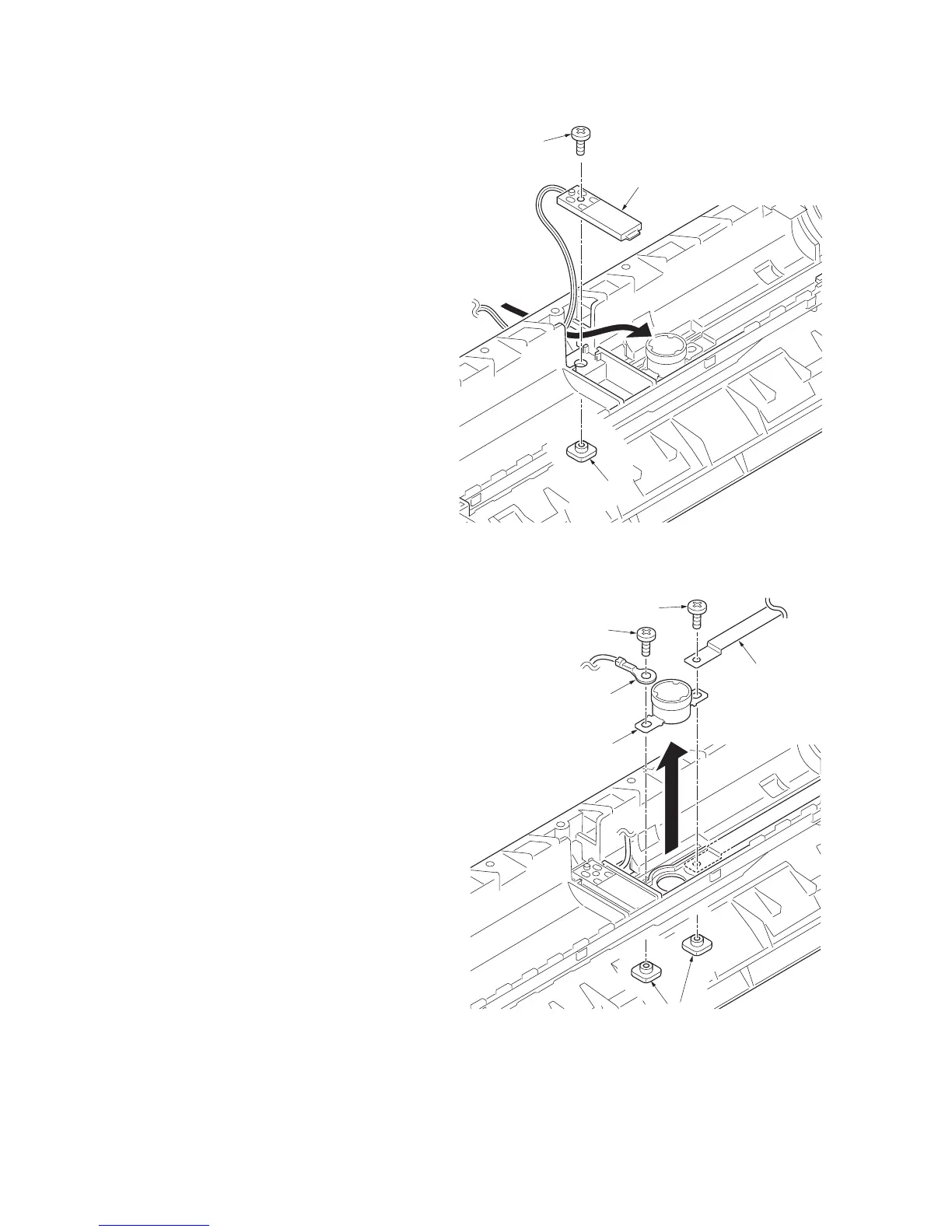

Figure 1-5-31
11. Remove the two screws (nuts) and then
remove the terminal and cord plate.
12. Remove the thermal cutout.
13. Check or replace the fuser thermistor 1/2
and thermal cutout and refit all the removed
parts.
Figure 1-5-32
Nut
Screw
Fuser thermistor 2
Cord plate
Nuts
Screw
Screw
Terminal
Thermal cutout
