6. Remove the wires from the ten clamps.
7. Remove one connector.

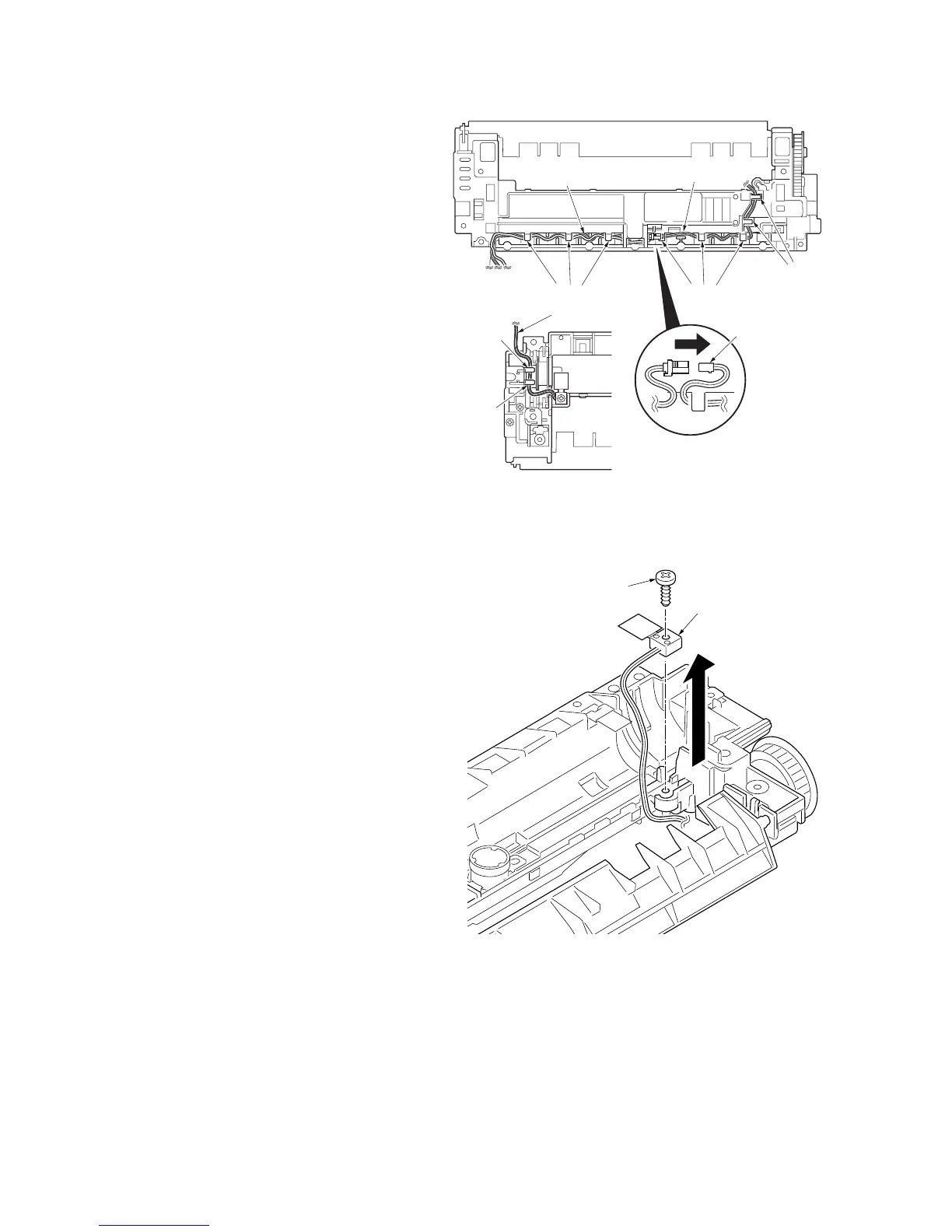

Figure 1-5-29
8. Remove the heat roller (See page 1-5-20).
9. Remove the one screw and then remove the
fuser thermistor 1.
Figure 1-5-30
Connector
Clamps
Clamps
Clamps
Clamp
Clamp
Wires
Wires
Wires
Fuser thermistor 1
Screw
