7. Draw the rear unit.
8. Remove six screws and then remove the
controller box (main PWB).

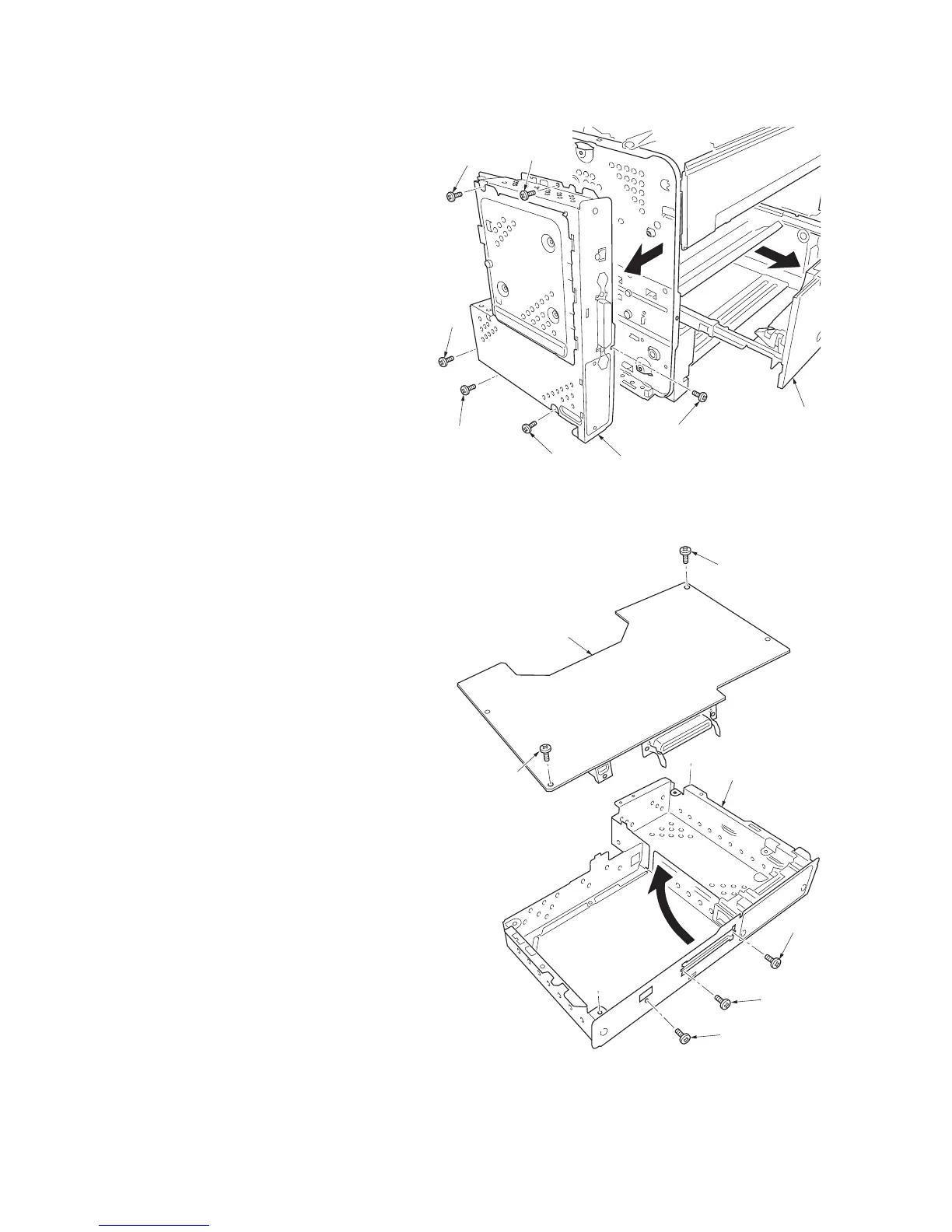

Figure 1-5-41
9. Remove five screws and then remove the
main PWB from the controller box.
10. Check or replace the main PWB and refit all
the removed parts.
Figure 1-5-42
Screw
Screw
Screw
Rear unit
Screw
Screw
Screw
Controller box
(Main PWB)
Screw
Screw
Screw
Screw
Screw
Main PWB
Controller box
