Kyocera FS-2020D - Page 94

2J0/2J1/2J2
1-5-36
9. Remove three screws and then remove the
paper feed drive unit.
10. Check or replace the paper feed drive unit
and refit all the removed parts.
To refit the paper feed drive unit, make sure
mesh of gears.

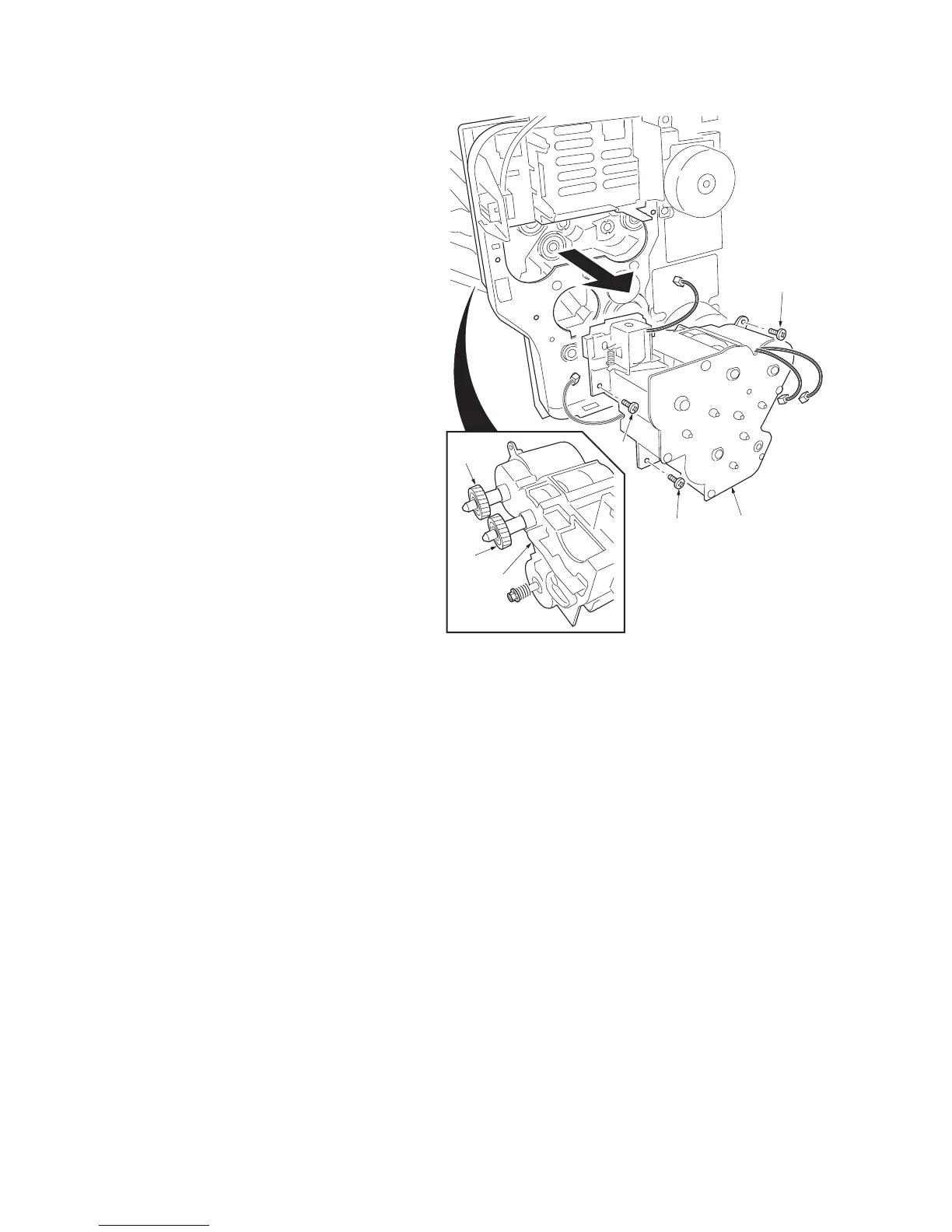

Figure 1-5-48
Gear
Gear
Screw
Screw
Screw
Paper feed
drive unit
Paper feed
drive unit
