Step 1. Touch the static-protective package that contains the OCP module to any unpainted surface on the
outside of the server. Then, take the OCP module out of the package and place it on a static-
protective surface.
Step 2. Remove the OCP module filler if there is.
Step 3. (Optional) Attach the OCP module label that comes with this option on the rear of the server.

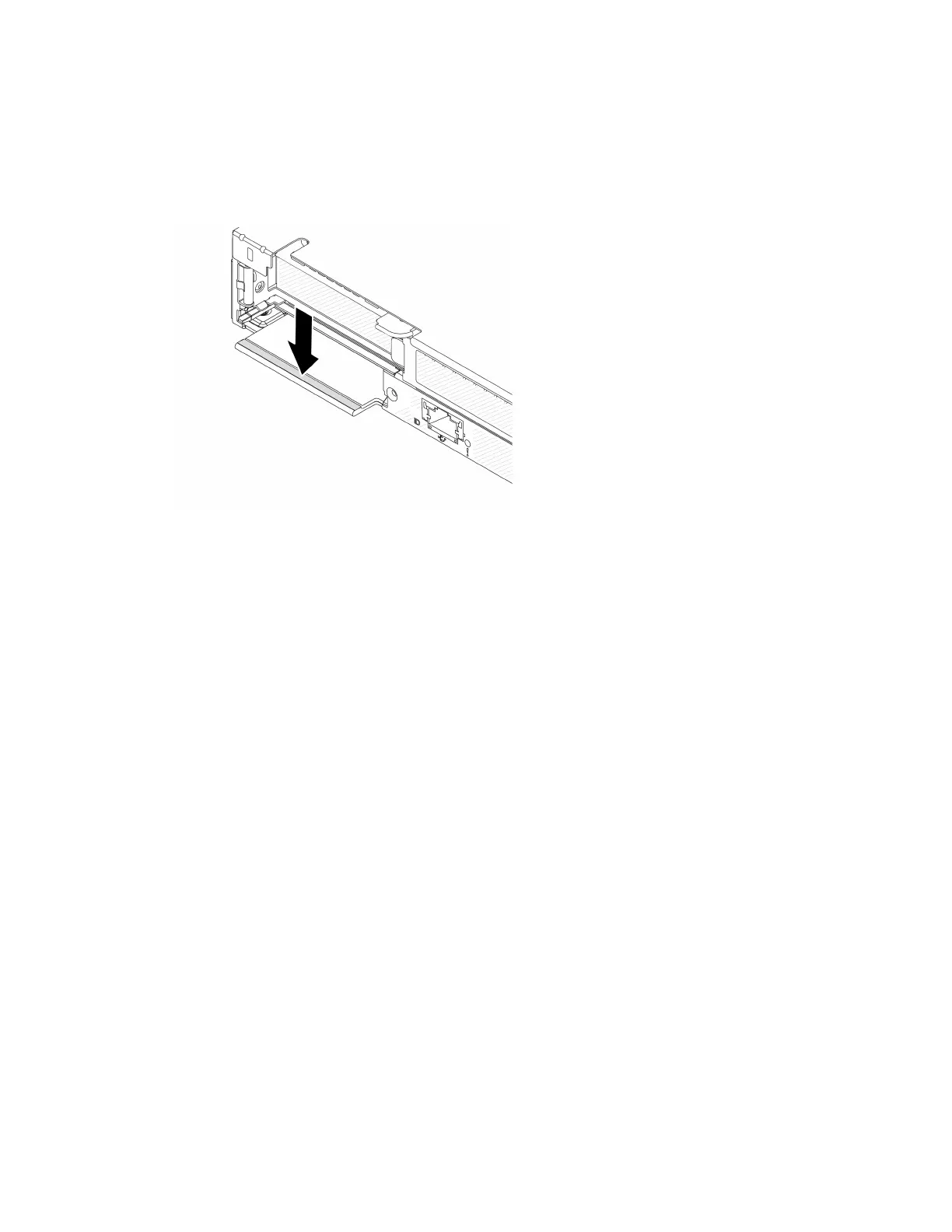

Figure 58. OCP module label installation
Chapter 5. Hardware replacement procedures 91
