1. Complete the parts replacement. See “Complete the parts replacement” on page 154.
2. Use the Lenovo XClarity Provisioning Manager to configure the RAID. For more information, see:
https://sysmgt.lenovofiles.com/help/topic/lxpm_frontend/lxpm_product_page.html
OCP module replacement
Use this information to remove and install the OCP module.
Note: The OCP module is available only on some models.
•
“Remove the OCP module” on page 89
• “Install the OCP module” on page 90
Remove the OCP module
Use this information to remove the OCP module.
About this task
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 44.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
CTkyVDu-5Lhy1r9G-4PQGl
.
Procedure
Step 1. Remove the OCP module.

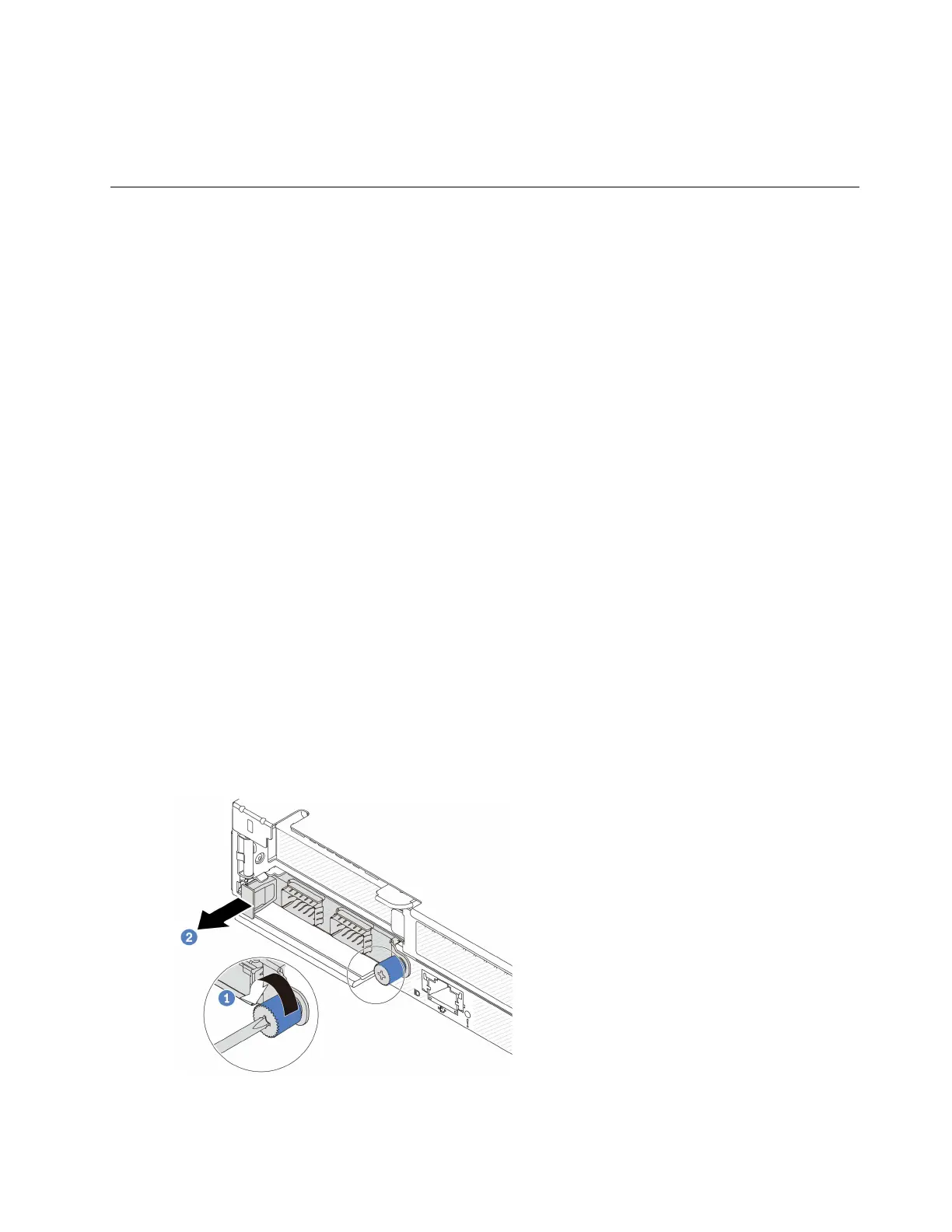

Figure 56. OCP module removal
Chapter 5. Hardware replacement procedures 89
