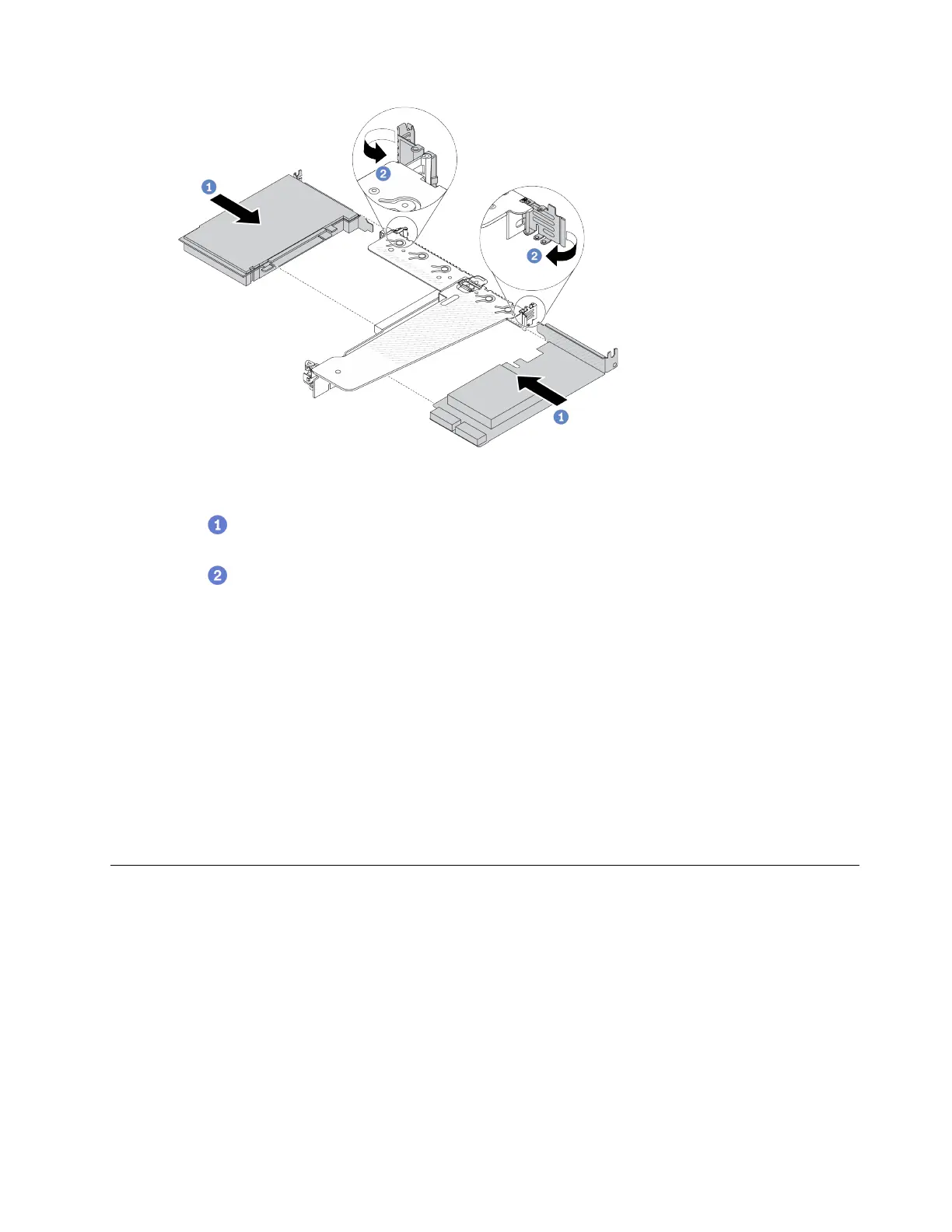

Figure 61. PCIe adapter installation into the LP-FH riser assembly
a.
Align the PCIe adapter with the PCIe slot on the riser card. Then, carefully press the PCIe
adapter straight into the slot until it is securely seated and its bracket is secured.
b.
Rotate the latch on the riser bracket to closed position.
Notes:
• Ensure that PCIe adapter installation meets the rules in
“PCIe slots and adapters” on page 41
• The procedure for installing a PCIe adapter is similar for different types of riser assembly. In this
topic, the LP-FH riser assembly is used as an example.
Step 4. Connect cables to the PCIe adapter in the riser assembly. See
Chapter 6 “Internal cable routing” on
page 157
.
After you finish
1. Reinstall the riser assembly. See
“Install a riser card” on page 125.
2. Complete the parts replacement. See
“Complete the parts replacement” on page 154.
Power supply unit replacement
Use this information to remove and install a power supply unit.
• “Remove a power supply unit” on page 95
• “Install a power supply unit” on page 99
Remove a power supply unit
Use this information to remove a power supply unit.
About this task
Chapter 5. Hardware replacement procedures 95
