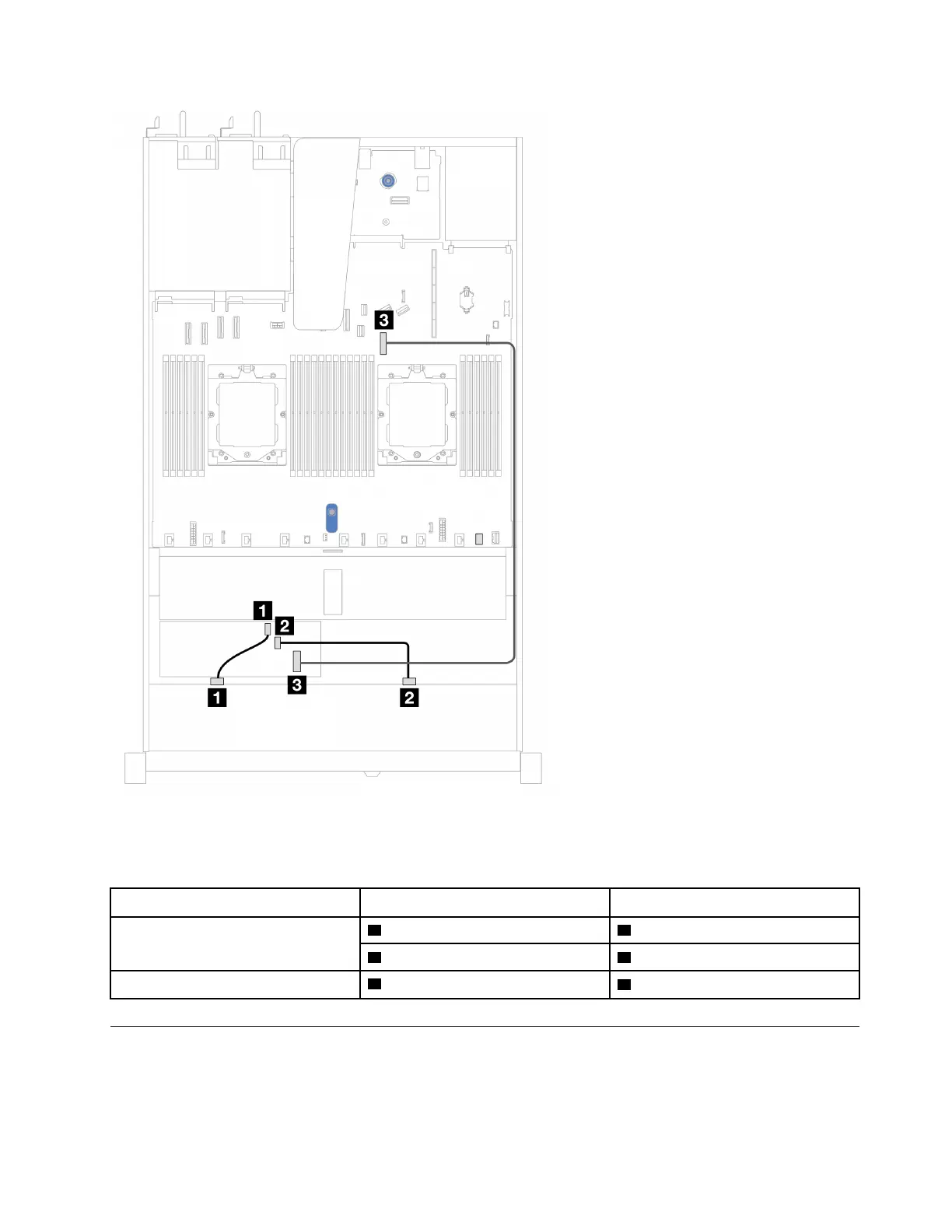

Figure 122. Cable routing for 8 x 2.5-inch front SAS/SATA drive bays with a 16i CFF RAID adapter (Gen 3 or Gen 4)
Table 22. Mapping between one front SAS/SATA backplane and a CFF RAID adapter
Backplane/adapter From To
Front BP (SAS)
1 SAS 0 1 C0
2 SAS 1 2 C1
CFF RAID adapter
3 MB input
3 PCIe connector 7
Cable routing for backplane signals (two processors)
In this section, you can find cable routings of backplane signals when two processors installed.
Chapter 6. Internal cable routing 171
