Install the RAID flash power module on the chassis
Use this information to install the RAID flash power module on the chassis.
About this task
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 44.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
CTkyVDu-5Lhy1r9G-4PQGl
.
Procedure
Step 1. Touch the static-protective package that contains the RAID flash power module to any unpainted
surface on the outside of the server. Then, take the RAID flash power module out of the package
and place it on a static-protective surface.
Step 2. If the server comes with a tray that covers the place of the RAID flash power module on the chassis,
remove it first.

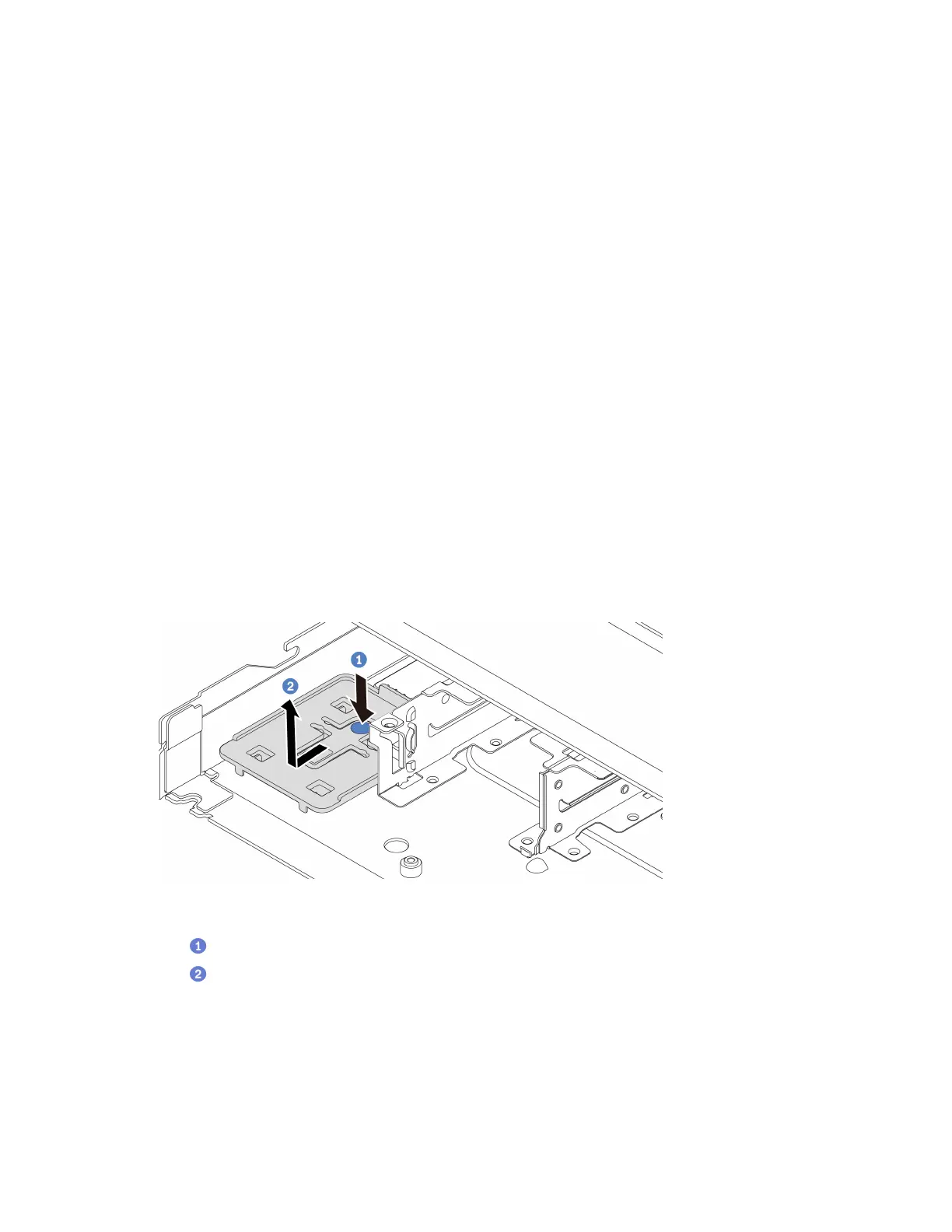

Figure 83. Tray removal
a. Press the blue touch point to disengage the tray from the chassis.
b.
Move the tray to the direction as shown and lift it out of the chassis.
120 ThinkSystem SR645 V3 User Guide
