a. Loosen the thumbscrew that secures the adapter.
b. Pull out the OCP module.
Step 2. (Optional) Remove the OCP label.

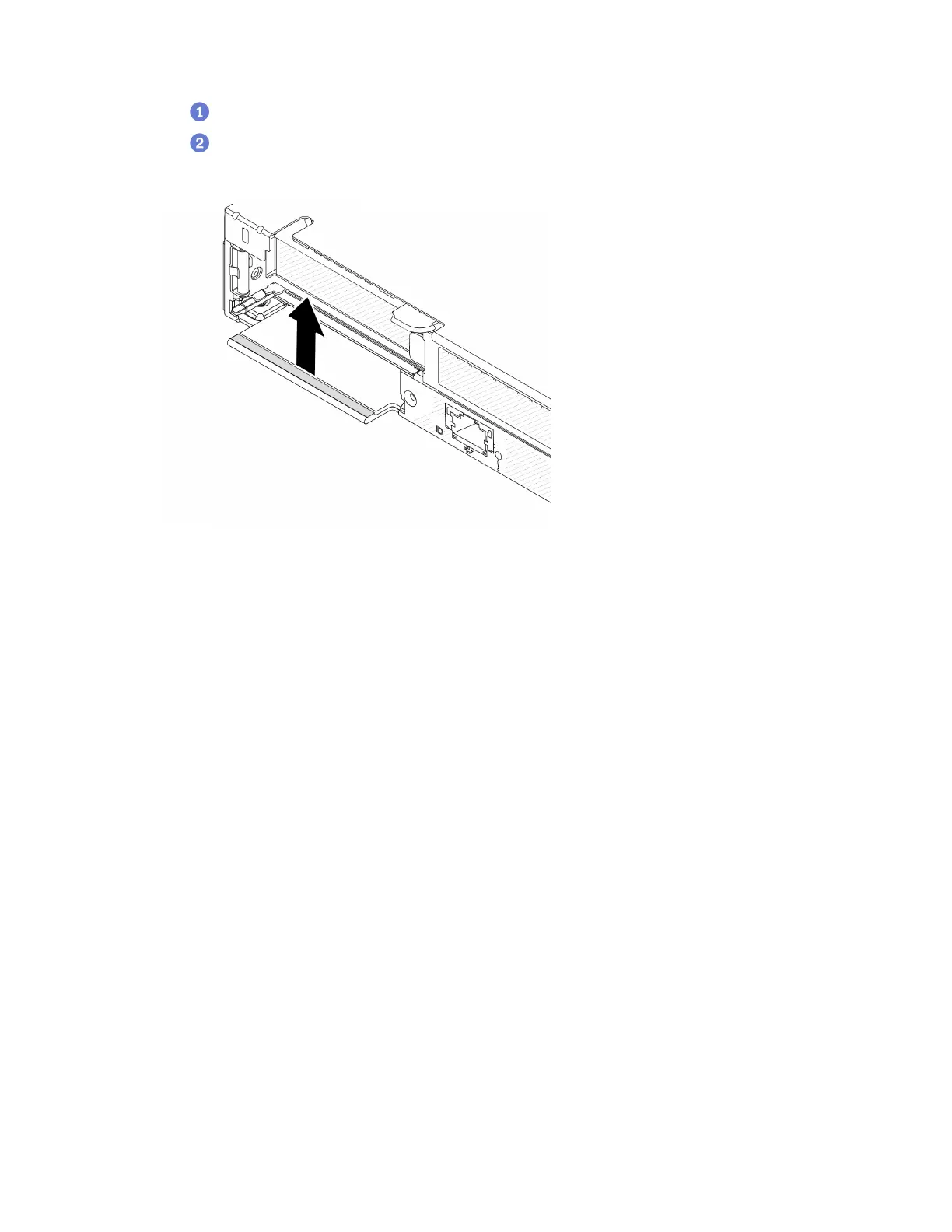

Figure 57. OCP label removal
After you finish
1. Install a new OCP module or a card filler. See
“Install the OCP module” on page 90.
2. If you are instructed to return the component or optional device, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Install the OCP module
Use this information to install the OCP module.
About this task
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 44.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
CTkyVDu-5Lhy1r9G-4PQGl
.
Procedure
90 ThinkSystem SR645 V3 User Guide
