Step 2. Remove the top cover.
Attention: Handle the top cover carefully. Dropping the top cover with the cover latch open might
damage the cover latch.

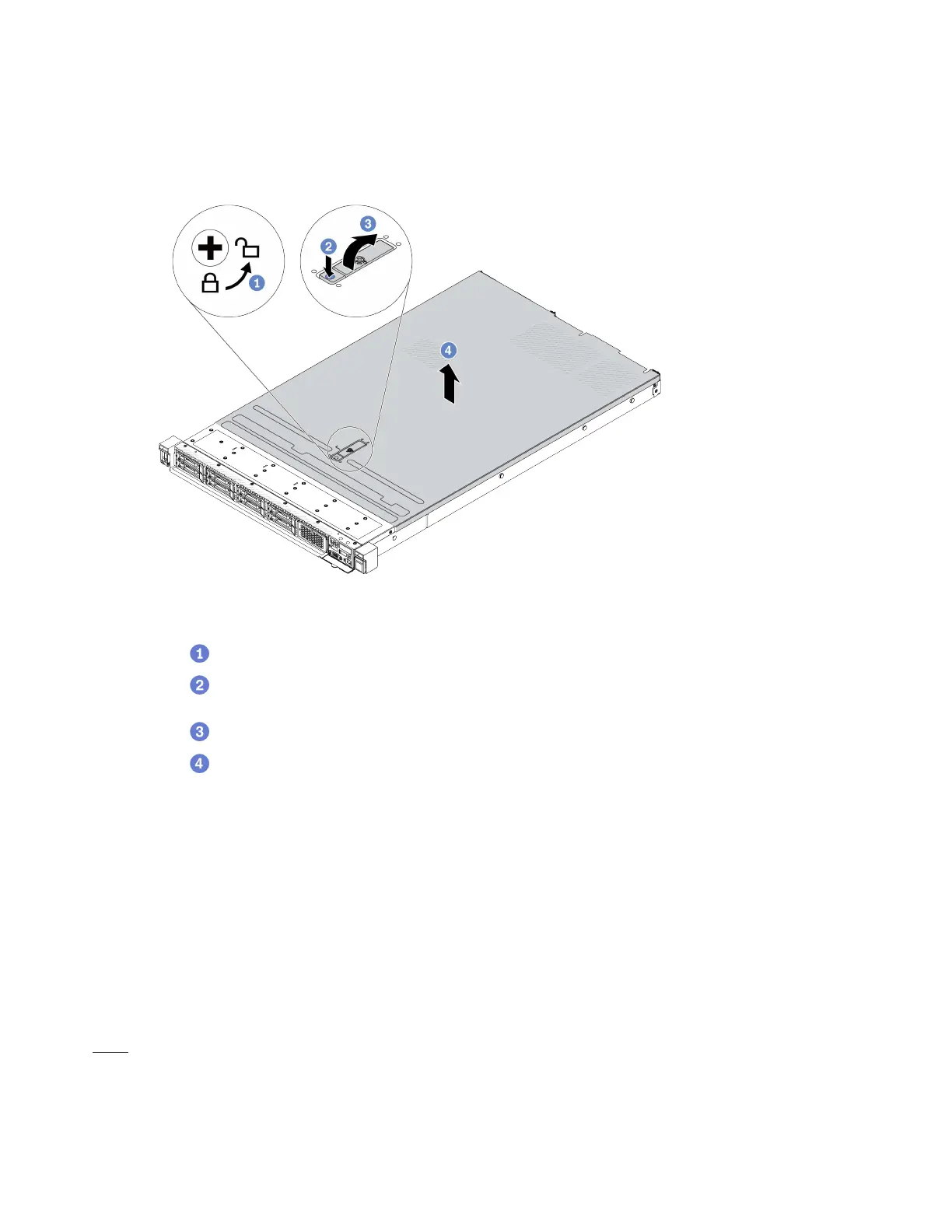

Figure 108. Top cover removal
a.
Use a screwdriver to turn the cover lock to the unlocked position as shown.
b.
Press the release button on the cover latch. The cover latch then gets released to some
extent.
c.
Fully open the cover latch as shown.
d.
Slide the top cover to the rear until it is disengaged from the chassis. Then, lift the top cover
off the chassis and place the top cover on a flat clean surface.
After you finish
1. Replace any options as required or install a new top cover. See
“Install the top cover” on page 152.
2. If you are instructed to return the component or optional device, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Install the top cover
Follow instructions in this section to install the top cover.
About this task
