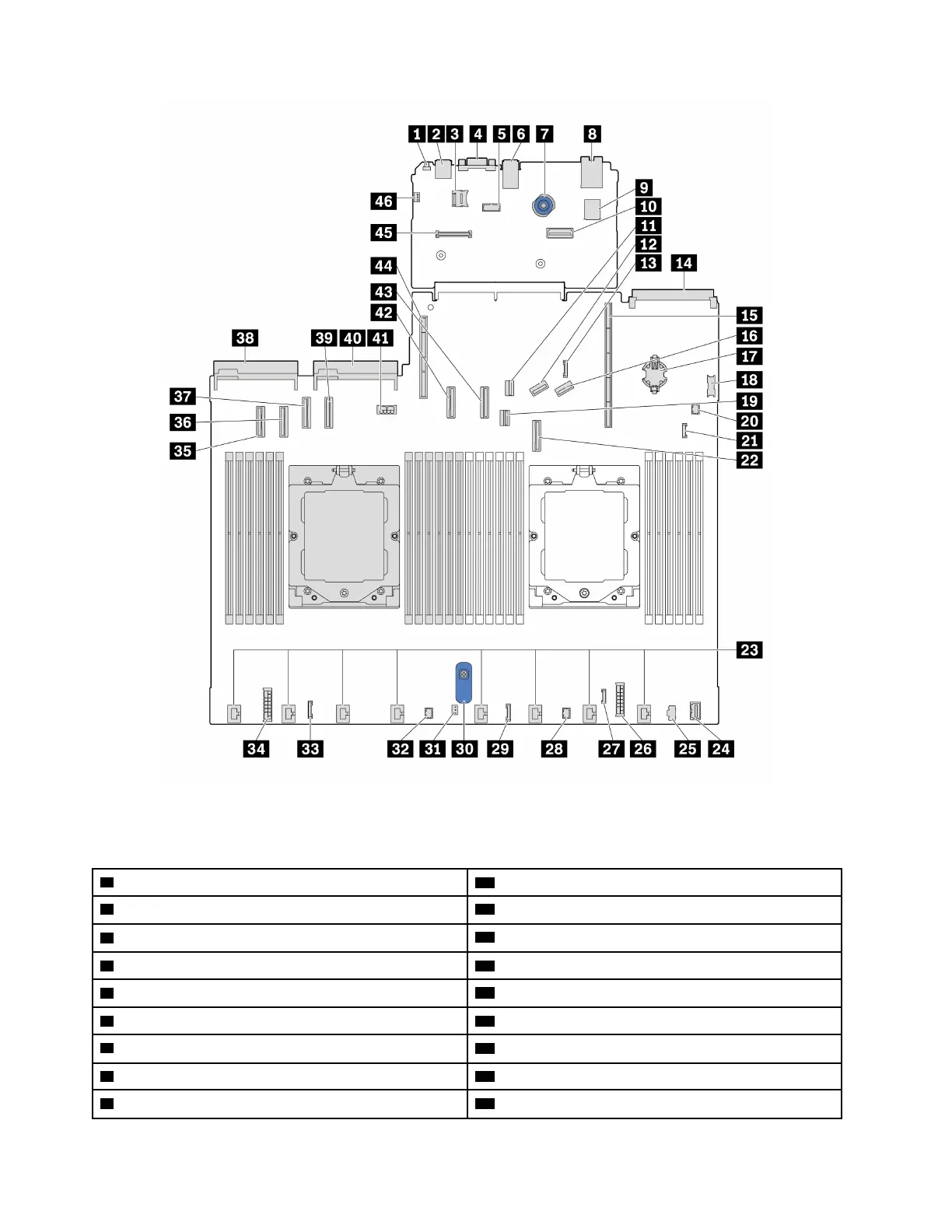

Figure 11. System-board-assembly connectors
Table 10. System-board-assembly connectors
1 NMI button
24 Front VGA connector
2 Rear USB connector 1
25 M.2 power connector
3 Micro SD connector
26 Internal RAID power connector
4 VGA connector 27 External LCD connector
5 Serial port connector 28 FIO_Y cable connector
6 Rear USB connector 2 29 FIO connector
7 Plunger
30 Lift handle
8 MGMT NIC connector
31 Intrusion switch connector
9 Internal USB connector
32 Pump 2 connector
22 ThinkSystem SR645 V3 User Guide
