The Interconnect Kit

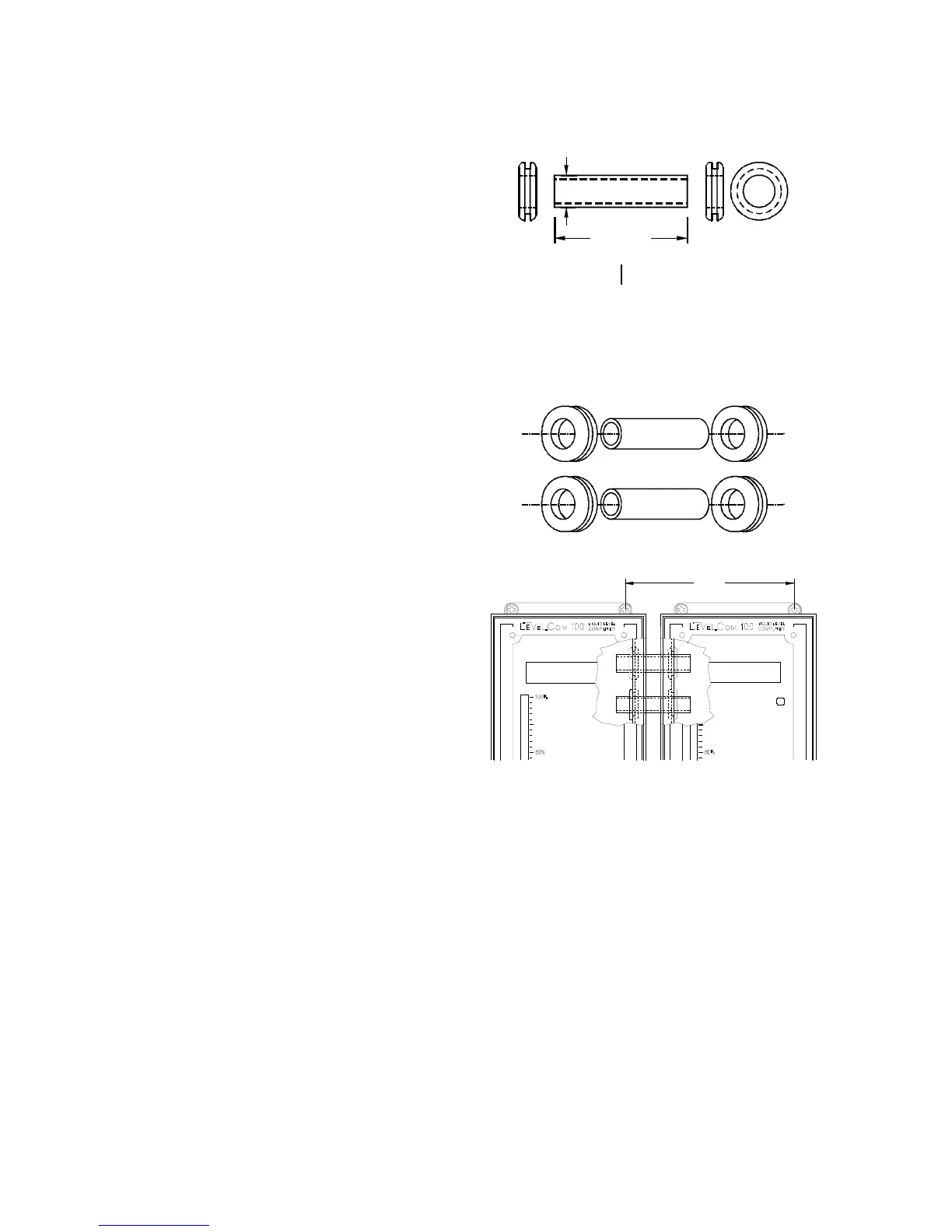

The LevelCom Interconnect Kit is pictured
in Figure 11. Each kit contains the
following:
2 each - 2.5” x ½” plastic conduit
4 each - Rubber Grommets
These kits are recommended for
installation of several LevelCom 100s
side-by-side as shown in Figure 10. The
kits provide a continuous, moisture-proof
wiring path between units. The LevelCom
100s are typically mounted at 0.5”
spacing. This puts the boxes on 6 inch
centers as shown in Figure 11.
Mount the grommets in the holes in the
sides of the LevelCom 100 boxes. The
interconnecting tubes are installed after
the boxes have been mounted.
Figure 11 Interconnect Kit
GROMETINTERCONNECT
TUBE
2 5/8"
LEVELCOM SPACING
CENTER TO CENTER
MINUS 3 3/8"
FOR 6" SPACING
5
/
8
"
KIT
INTERCONNECT
ULLAGE
6"
