Zero Offset for 16 bit Sensors
100 PSI 16 bit sensors are more sensitive to
changes in temperature. The zero point will
drift noticeably with changes in ambient
temperature. Because of this sensitivity you
cannot set a fixed value for the zero when
calibrating these sensors. Before you set
the zero point for 16 bit sensor boards you
will need to take an ambient temperature
measurement.

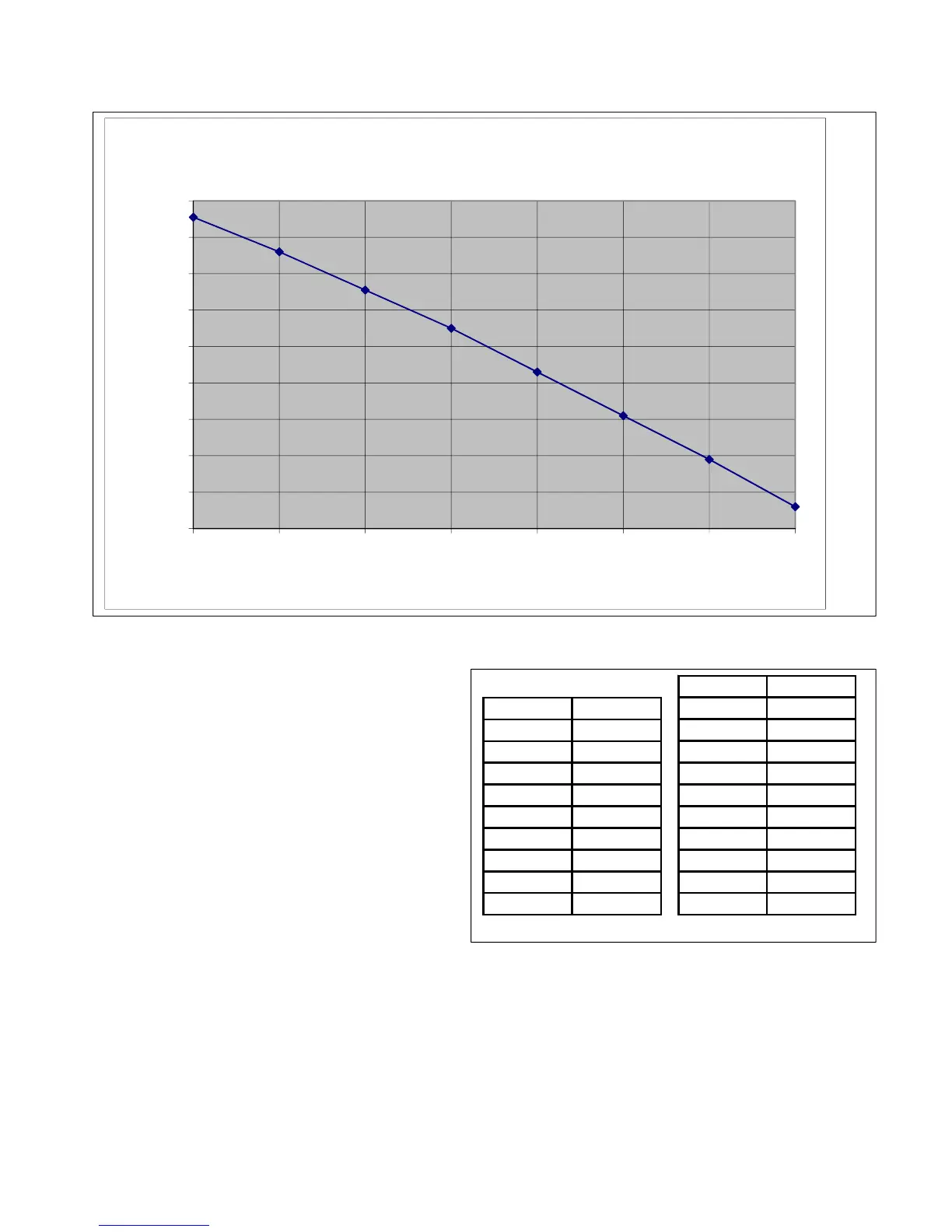

The above graph and the table to the right
give the zero point needed based on the
ambient temperature reading of the
LevelCom 100.
Deg F Zero
30 55
40 -40
50 -145
60 -250
70 -370
80 -490
90 -610
100 -740
Deg C Zero
037
5-52
10 -145
15 -243
20 -344
25 -451
30 -561
35 -675
40 -794
-800
-700
-600
-500
-400
-300
-200
-100
0
100
30 40 50 60 70 80 90 100
Zero Value for Calibration
Temperature in Deg F
Calibration Zero Points
