3-36 Service Manual
7014-xxx

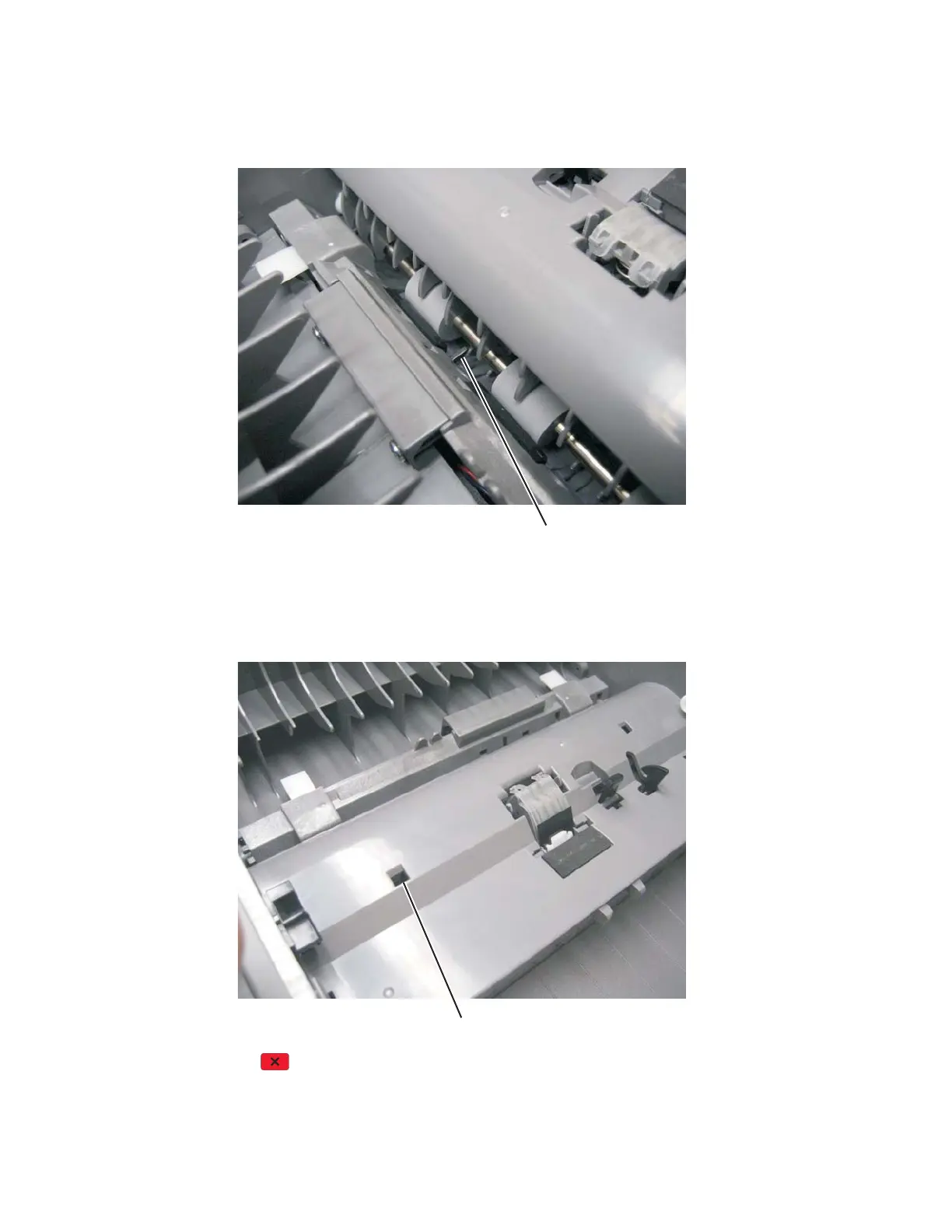

5. To test scanner sensor 1 press on the tab (C). The 0 next to the 1 will change to 1 if the sensor is working
properly.
6. To test scanner sensor 2 press on the tab (D). The 0 next to the 2 will change to 1 if the sensor is working
properly.
7. To test the ADF cover opent sensor, open the ADF top cover. Id the sensor is functioning properly the 0
next to the A will change to 1.
8. Press Stop to return to the SCANNER TESTS menu.
