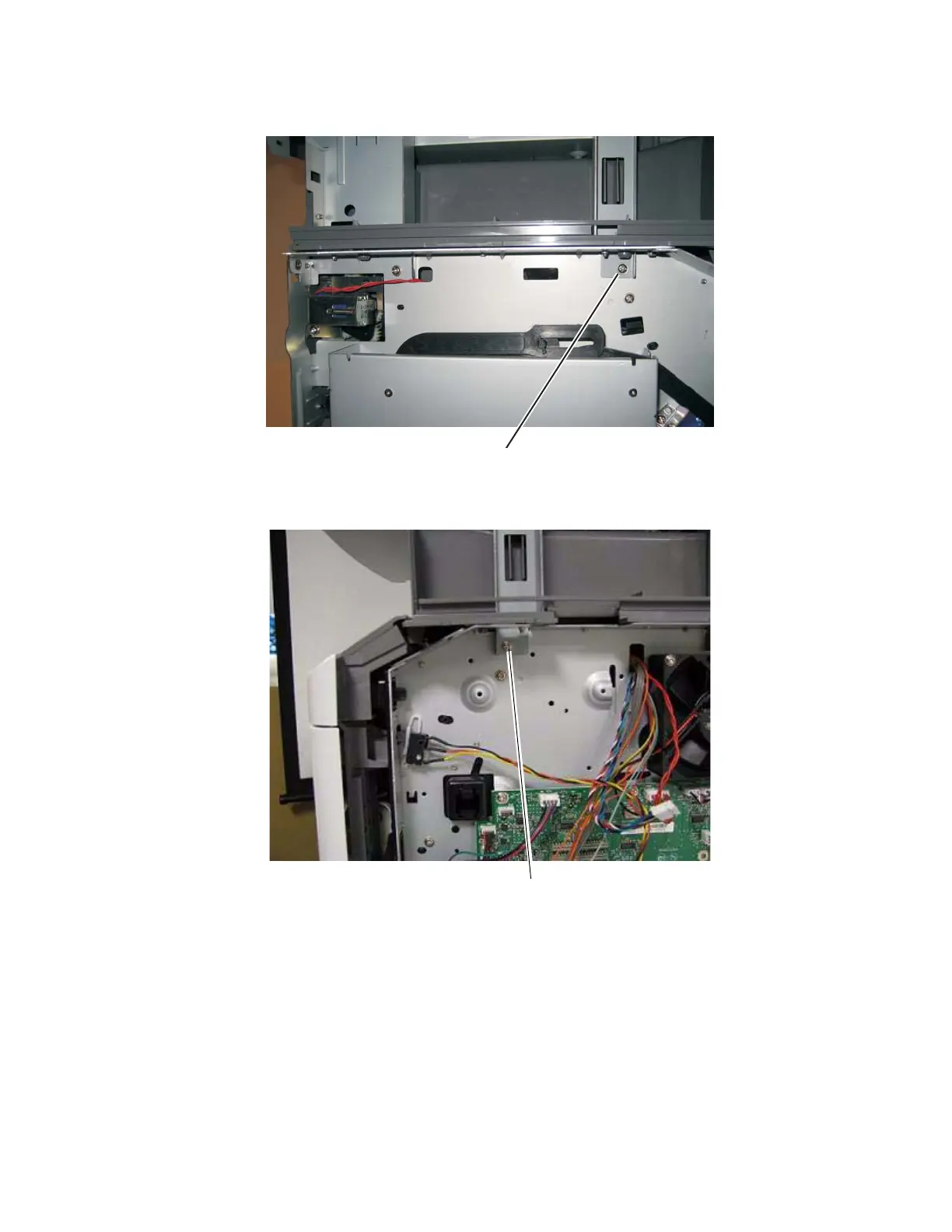

19. Remove the side screw (E) securing the left flatbed stop to the print engine frame.
20. Remove the side screw (F) securing the right flatbed stop to the print engine frame.
21. Lift and remove the scanner assembly from the MFP.
