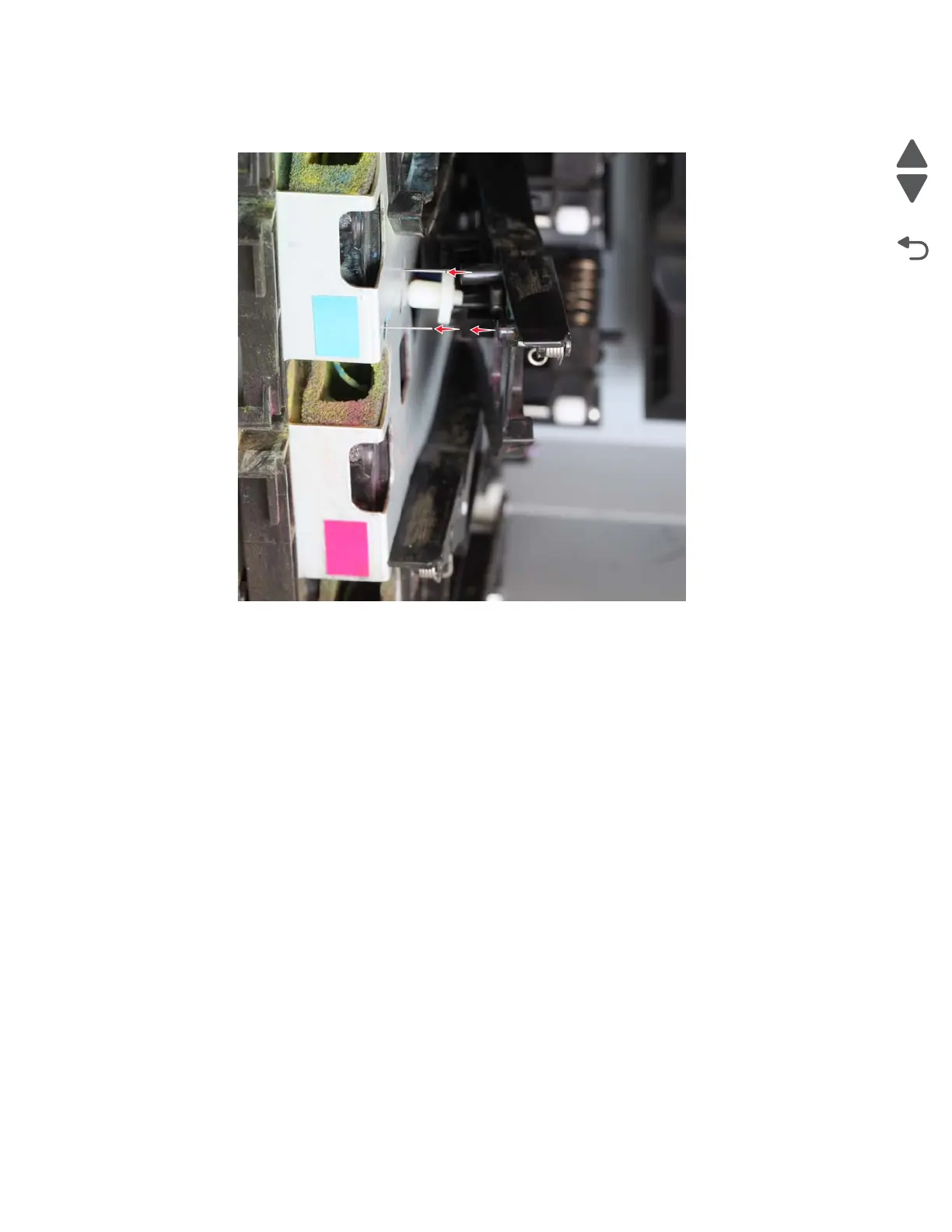

Installation note: Make sure to properly align the pins to their proper slot when reinstalling the
cartridge guide wheel. Be careful not to damage or bend the pins.
Installation note: Inspect carefully if the cartridge guide wheel is seated properly on the cartridge
guide before reinstalling the screw on the cartridge guide.
