Lexmark X734DE - Page 335

Repair information 4-69
7526
Go Back
Previous
Next

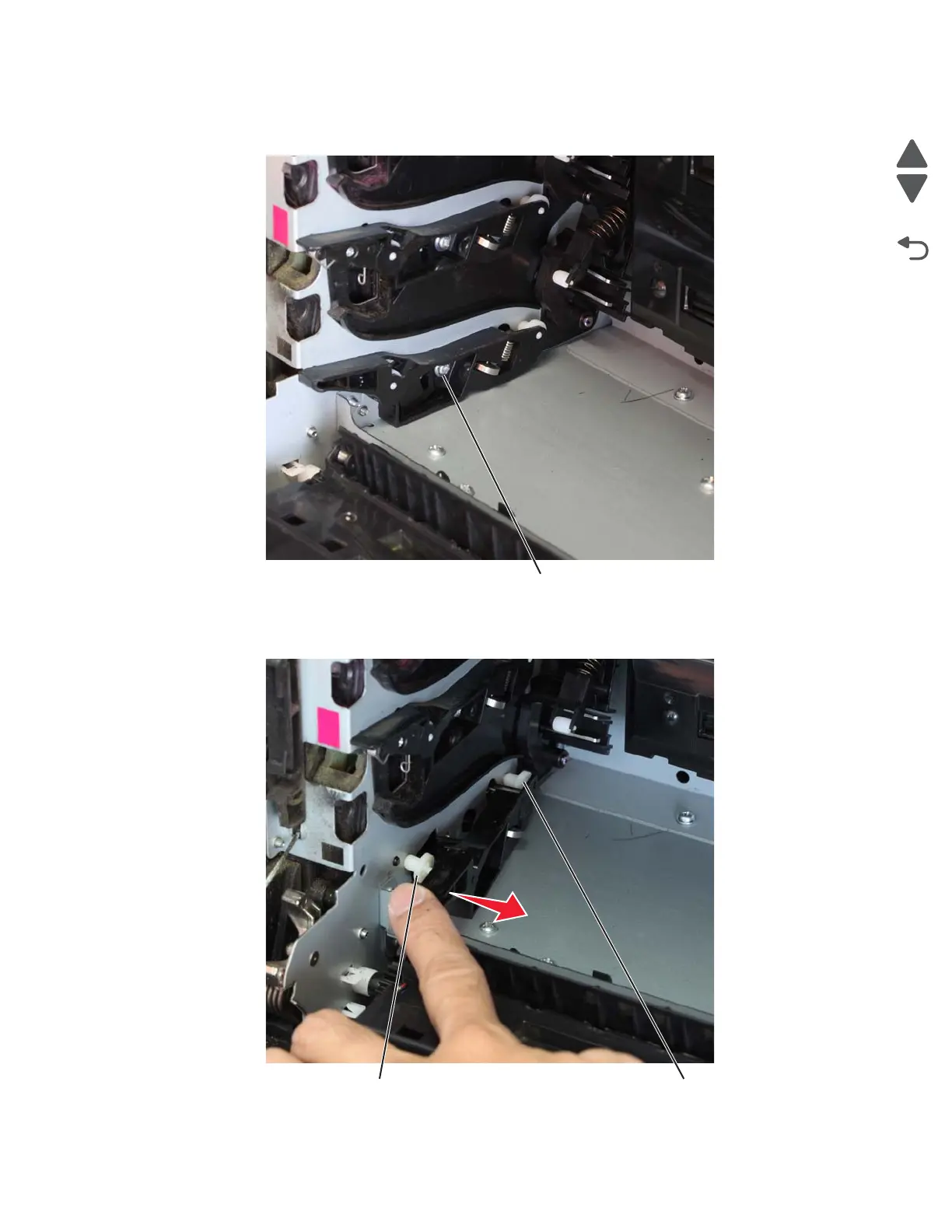

2. For black:
a. Remove the screw (D) from the lower-most cartridge guide.
b. Gently pull the cartridge guide, then remove the front (E) or rear (F) cartridge guide wheel.
CAUTION: Do not pull too hard on the cartridge guide to avoid damage.
D
EF
