Lexmark X734DE - Page 435

Repair information 4-169
7526
Go Back
Previous
Next

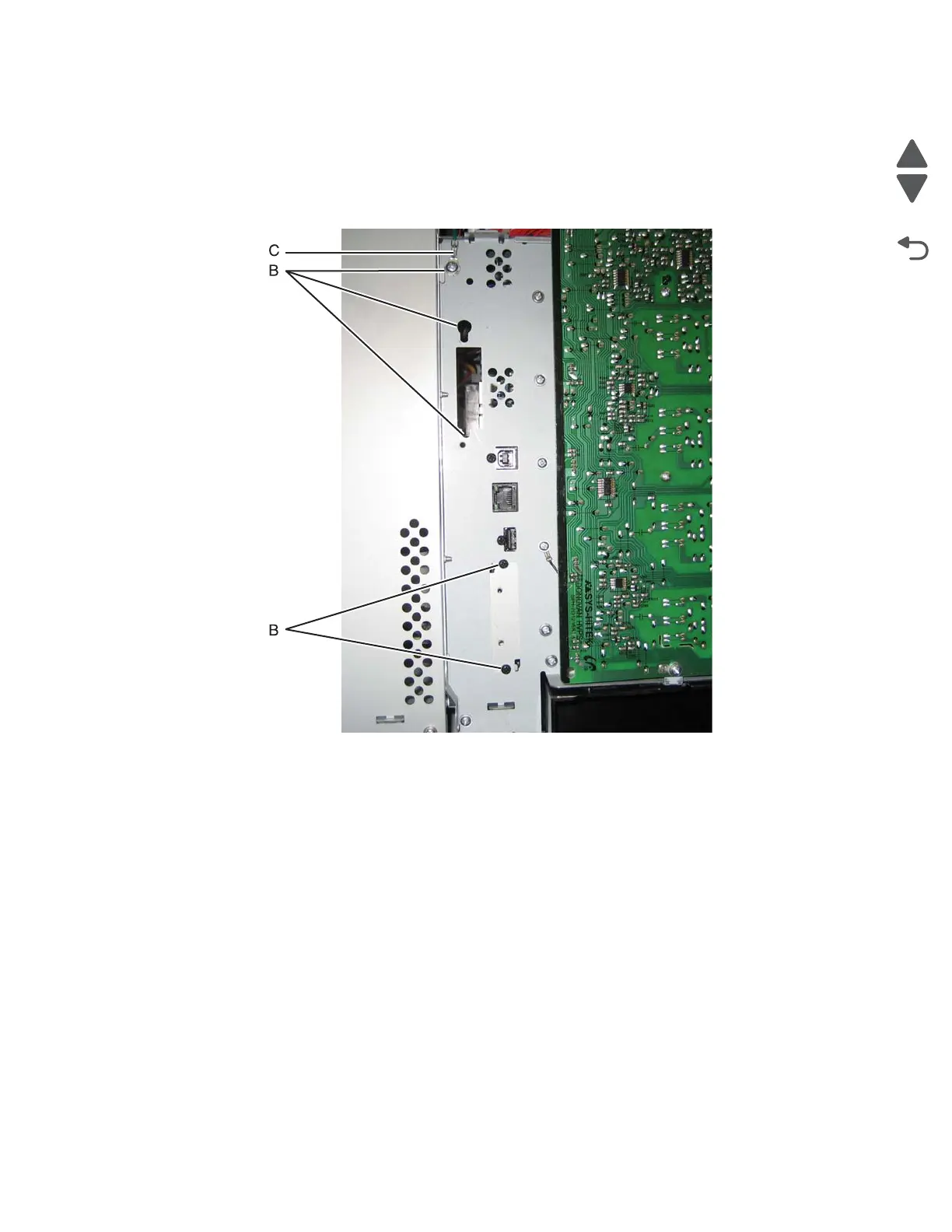

4. Replace all the screws (B) from the left side of the printer, including:
• Ethernet port connector (1 screws)
• Modem shield (1 screws)
• Hard disk shield (2 screws)
• Ground screw (1 screw)
Note: Be sure to attach the ground wire (C) to the ground screw.
