4-170 Service Manual
7526

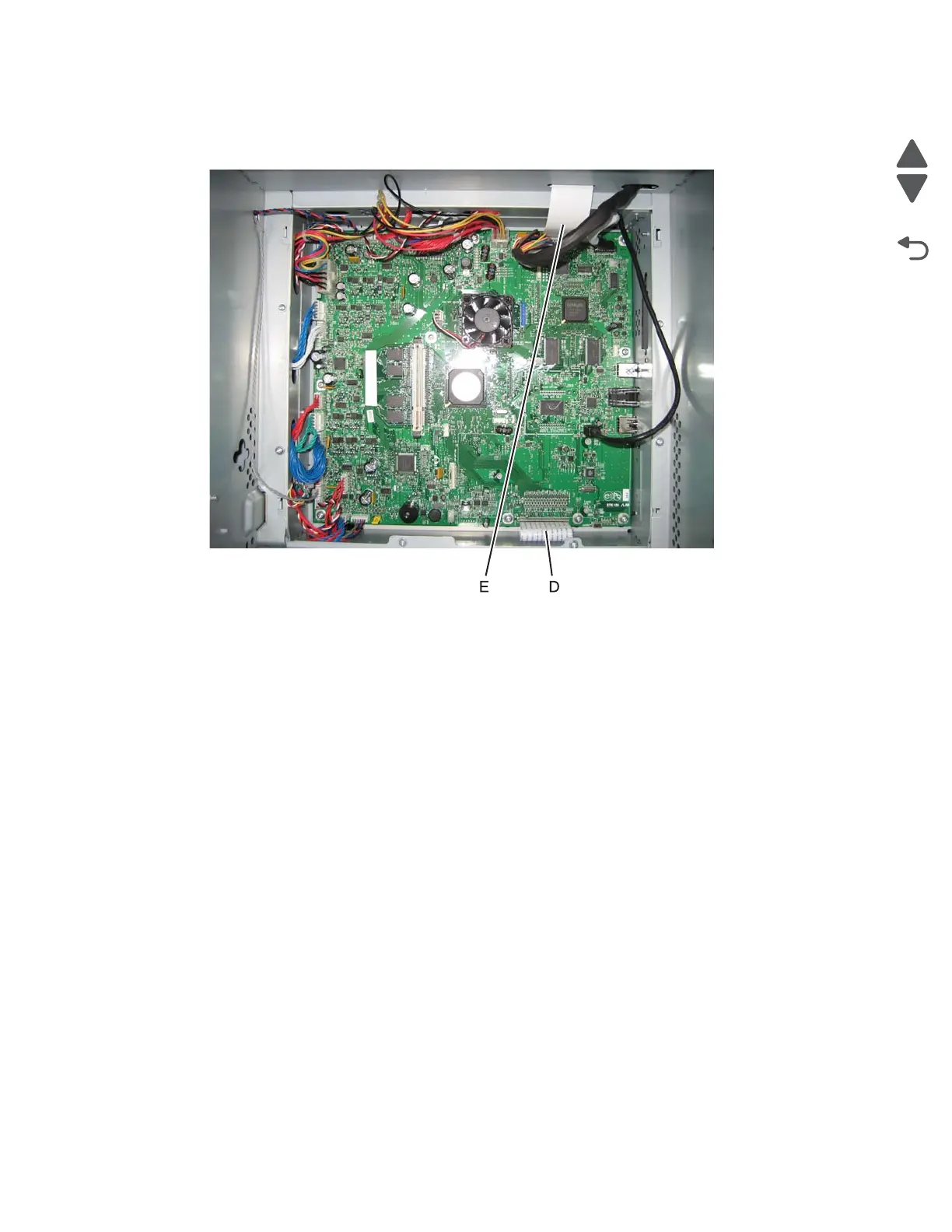

c. Reconnect all the connectors to the system board. Use the diagram below for a guideline.
Warning: Be careful reconnecting the printhead ribbon cable (D) and the MDC cable (E). Ribbon cables
can be damaged easily and should be handled carefully.
5. Install the toroids, hard disk, modem, and wireless network card, if appropriate.
6. Replace the rear cover, rear frame cover, and the left cover.
