Lexmark X945 Service Manual

2-240 Service Manual
7510

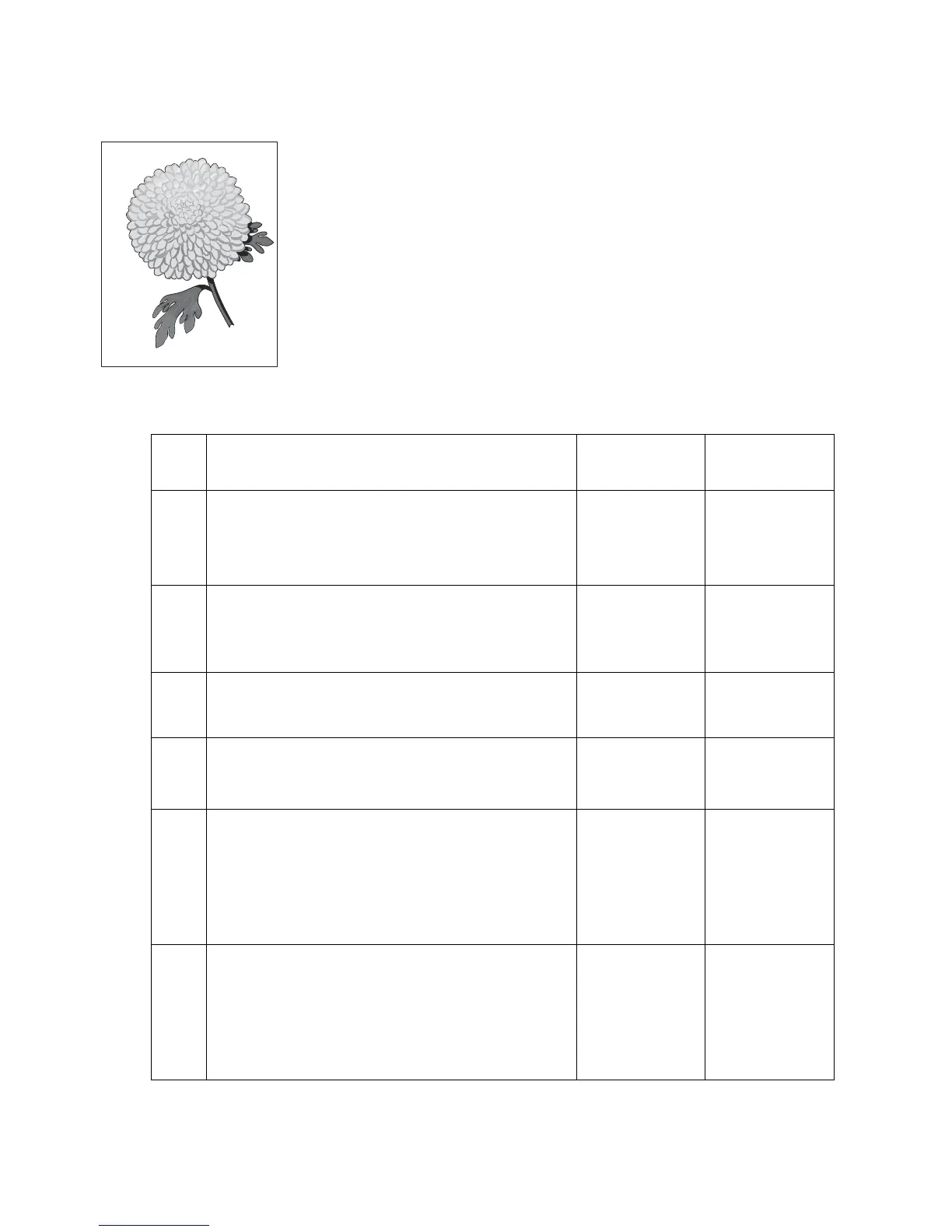

Skew (using ADF)
The printed image is not paralleled with both sides of the media.
Step Check Yes No
1 Check printer installation placement.
Check the installation surface for irregularities.
Check for damaged printer caster.
Is the setup surface normal?
Go to step 2. Correct the
installation
placement.
2
Properly load document into the ADF unit assembly and
ensure all guides are set correctly.
Re-print the defective image.
Does the error continue?
Go to step 3. Problem solved.
3
Check for obstructions in the area of the media feed
path in the ADF.
Is the media feed path free from any obstructions?
Go to step 4. Remove
obstructions.
4
Is the ADF left cover assembly properly and evenly
closed.
Go to step 5. Open then
properly close
the ADF left
cover assembly.
5
Check the ADF/pick roll assembly for damage and
wear.
Is the ADF feed/pick roll assembly free from damage
and wear?
Go to step 6. Replace the
ADF feed/pick
roll assembly.
Go to “ADF
feed/pick roll
assembly
removal” on
page 4-142.
6
Check the separation guide assembly.
Is the separation guide assembly free from damage and
wear?
Go to step 7. Replace the
separation guide
assembly.
Go to “ADF
separation roll
guide
assembly” on
page 4-155.
Leading edge
Trailing edge
