4-1
14
Service Manual
7510

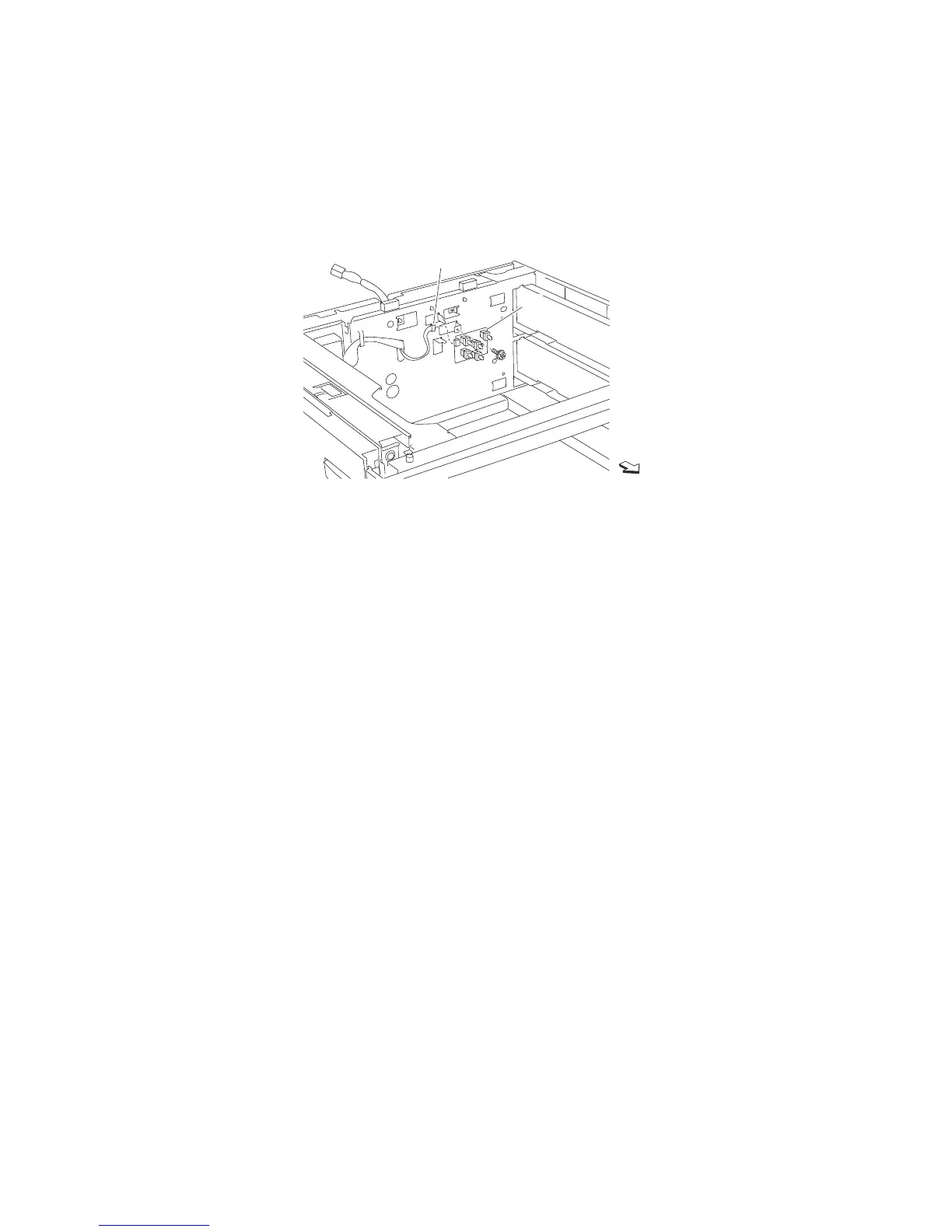

Switch (media size) removal
Note:
This procedure can be app
lied to tray
1 or tray
2 switch (media size).
1. Remove media Tray
1 and media Tray
2.
2. Remove one screw securing the switch (media size) (A) to the bracket inside the machi
ne.
3. Remove the connector from switch (media size) (A).
4. Remove the switch (media size) (A).
A
Connector
F
ront
521
523
